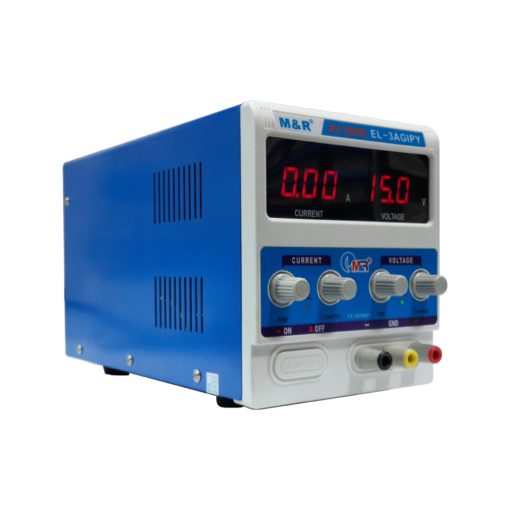

M&R 3005D DC Power Supply 30V 5A APS
The M&R 3005D DC Power Supply 30V 5A APS is widely used in PCB repair, communications, power electronics, research, electroplating, water treatment, battery charging, product aging equipment. Design of low ripple, high efficiency, small size and light weight. Full range tracking load more accurate overvoltage protection. All components imported components of industrial grade, circuit design optimization is reasonable, strict production process improvement, to ensure the reliability and stability of the machine. input voltage range. Adjustable output voltage.
Features:
- In the full power state, long working hours
- the regulation, steady flow switch automatically
- Low ripple voltage
- Digital display output voltage and current
- Four pots, respectively, regulate the output voltage and output current, accurate and stable .
- have the freedom to choose the overcurrent path (short-circuit protection and protection current limit) to adapt to a wider range of use
- Cooled by a built-in fan
Specifications:
| Specification | Value |
|---|---|
| Brand | M&R |
| Model | APS-3005D |
| Input Voltage | 220 V ±10% 50 Hz |
| DC Output | 0–30 V, 0–5 A |
| Ripple and Noise (PP) | ≤ 3 mVrms (5 Hz – 1 MHz) |
| Load Stability | ≤ 0.3% |
| Display Mode | LED digital display |
| Working Temperature | 0°C – 40°C |
| Storage Temperature | -20°C – 80°C |
| Voltage Accuracy | ± 0.5% rdg + 2 digits |
| Current Accuracy | ± 0.5% rdg + 2 digits |
| Dimensions | 255 x 125 x 155 mm |
| Weight | 4.54 kg (including packaging) |
Applications:
- Educational Laboratories
- Electronic production line
- Communications industry
- Product research
- All other areas need DC power supplies
Package Contents:
- 1x M&R DC Power Supply 30V-5A APS 3005D
- 1x Power cord
- 1x Instruction Manual
