Name: M&R 9512D Hot Air Soldering Iron Station
SKU: 3496300131273
Price: 3500.00 EGP
Availability: InStock

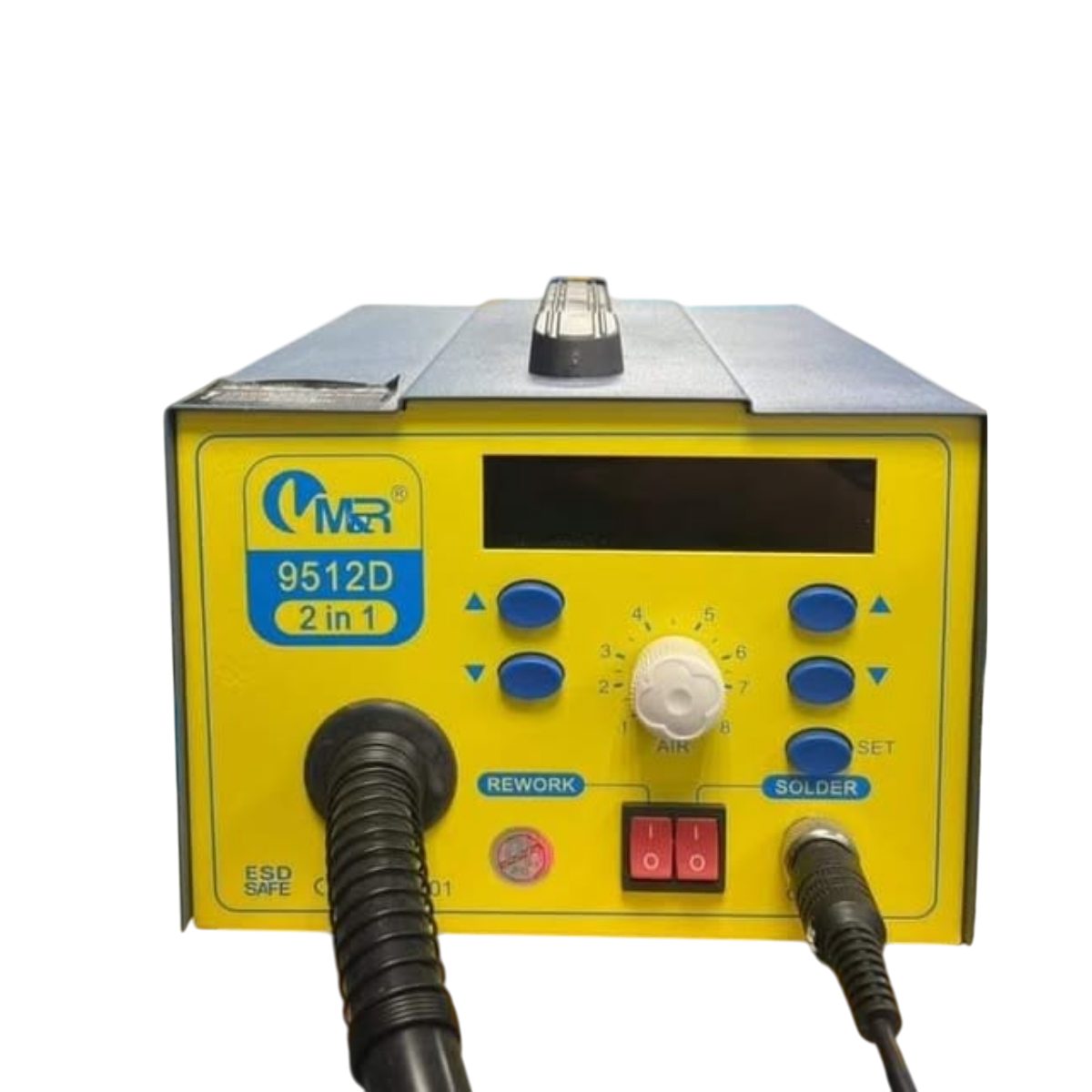

M&R 9512D 9512D Hot Air Soldering Iron Station

The MR 9512D Professional SMD Soldering Station is engineered to meet the demands of both professionals and hobbyists engaged in surface-mount device (SMD) soldering and desoldering. This versatile station integrates a high-precision T12 soldering iron and a hot air rework station, providing a comprehensive solution for various soldering tasks. Its advanced features ensure optimal performance, reliability, and ease of use in demanding environments.

Features:

Dual functionality with a T12 soldering iron and hot air rework station.
Digital temperature control for precise heat management.
Quick heat-up time for both soldering iron and hot air gun.
Sleep mode function to prolong tip life and conserve energy.

Specifications:

Component	Parameter	Specification
Switchboard	Rated Voltage	AC220V±10%, 50Hz AC110V±10%, 60Hz
	Whole Machine Power	630W±10% 760W±10%
	Display Mode	LED digital (resolution 1%)
	Working Environment	0-40°C; relative humidity <80%
	Storage Temperature	-20-80°C; relative humidity <80%
Hot Air Gun	Working Voltage	AC220V±10%, 50Hz AC110V±10%, 60Hz
	Output Power	580W±10% 700W±10%
	Air Flow	100L/min 120L/min
	Temperature Range	100-450°C
	Temperature Stability	±2°C (static)
Soldering Station	Working Voltage	AC 26V±10%, 50Hz/60Hz
	Output Power	50W±10% 60W±10% 72W±10%
	Temperature Range	100-450°C / 150-480°C
	Temperature Stability	±2°C (static)
Safety Specifications	Welding Tip to Ground Resistance	<2Ω
	Welding Tip to Ground Voltage	<2mV

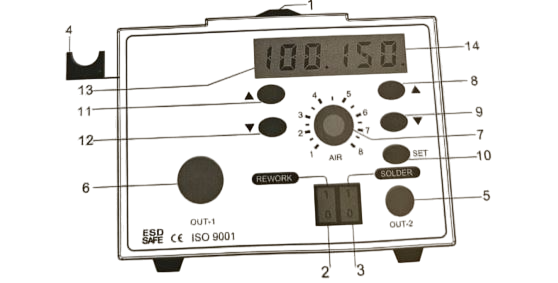

Configuration:

Part No.	Component Name	Description / Function
1	Portable	Main unit / device body
2	Heat gun switch	Power switch for the hot air gun
3	Soldering station switch	Power switch for the soldering iron
4	Heat gun bracket	Holder for the hot air gun handle
5	Soldering station handle	Handle for the soldering iron
6	Hot air gun handle	Handle for the hot air gun
7	Hot air gun air volume adjustment	Knob or button to adjust air flow
8	Soldering station temperature heating key	Button to increase soldering iron temperature
9	Soldering station temperature cooling key	Button to decrease soldering iron temperature
10	Soldering station temperature setting key	Button to set the soldering iron temperature
11	Hot air gun temperature heating key	Button to increase hot air gun temperature
12	Hot air gun temperature cooling key	Button to decrease hot air gun temperature
13	Hot air gun temperature display	Shows the set/actual temperature for the hot air gun
14	Soldering station temperature display	Shows the set/actual temperature for the soldering iron

Applications:

SMD soldering and desoldering.
PCB rework and repair.
Component replacement and maintenance.
Prototype development and testing.
Educational and training purposes.

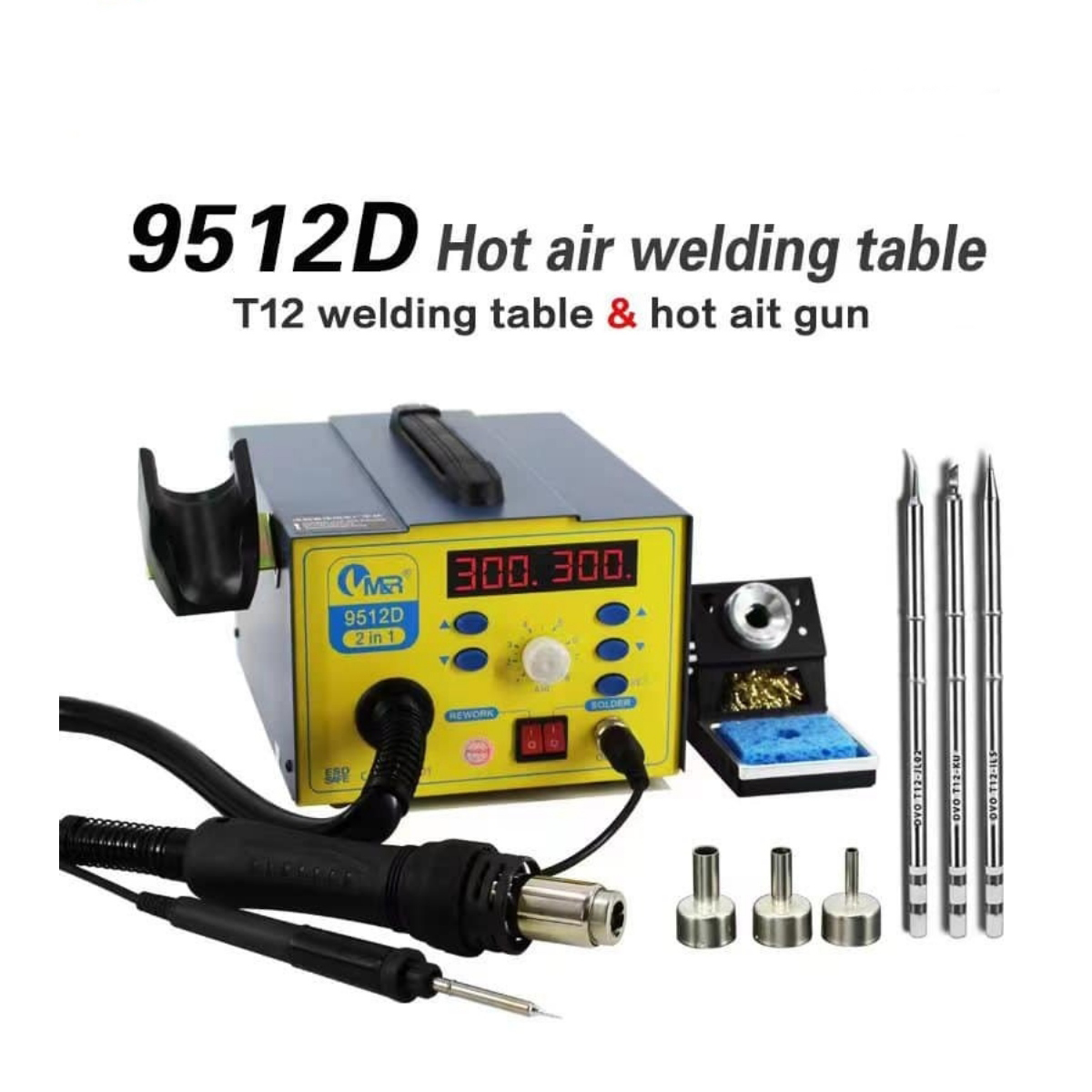

Package Include:

1 x 9512D Hot Air

1 x T12 Soldering Iron

1 x Soldering Iron Stand

1 x Cleaning Sponge
3 x Air Mouth
1 x Air Pressure Holder
3 x T12 Tip ( T12-JL02 & T12-ILS & T12-KU )
1 x User Manual
