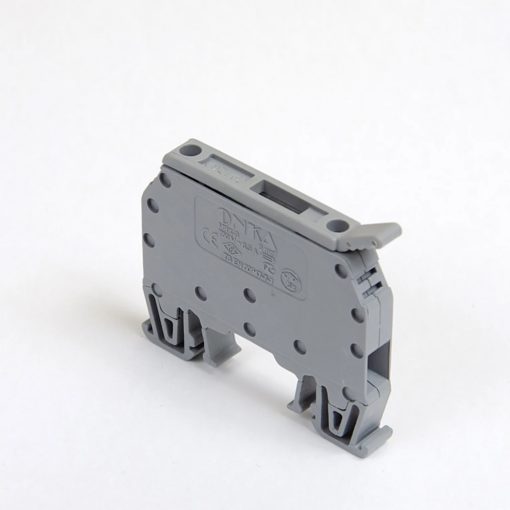

MRK-S Screw Connection Fused Terminal Block 6mm²: High-Performance Circuit Protection
The ONKA MRK-S is a professional-grade fused terminal block designed for reliable circuit protection and electrical distribution within industrial control systems. This screw-connection component is engineered to accommodate wiring up to 6mm² and is rated for a maximum voltage of 750V and a current of 6.3A.
Features
- Integrated Fuse Holder: Ideal for circuit protection, allowing easy fuse integration to protect circuits from overloads.
- Durable Construction: Built with high-quality PA6.6 body, copper bridge, and CK45 steel contacts to ensure durability.
- Efficient Design: 10mm cable strip length for easy wire connection and secure mounting.
- Safety Certifications: TSE/CE, UL rated for reliable performance in demanding applications.
Specifications
- Dimensions:
- Length (A): 60 mm
- Width (B): 47 mm
- Height (C): 34.5 mm
- Mounting Length (D): 54.6 mm
- Mounting Width (E): 8.8 mm
- Material:
- Body: PA6.6
- Bridge: Copper
- Contact: CK45 Steel
- Screw: Steel
- Voltage Rating: 750V
- Current Rating: 6.3A
- Wire Section: 6mm², 8AWG
- Temperature Range: -40°C to +140°C
- Cable Strip Length: 10 mm
- Torque: 0.8 Nm
- Safety Standards: TSE/CE, UL listed
Applications
- Electrical Control Panels: For secure and organized wire connections.
- Power Distribution Systems: Safely distributes power with added fuse protection.
- Industrial Machinery: Ensures reliable circuit protection in heavy-duty environments.
Package Content
- 1 x MRK-S Screw Connection Fused Terminal Block 6mm²
