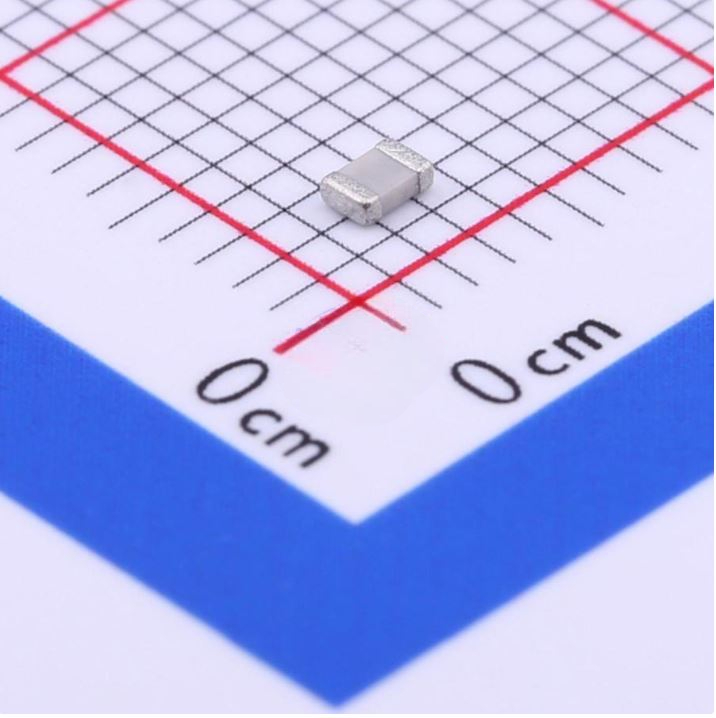

Multilayer Ceramic Capacitors MLCC – SMD/SMT 39pF ±5% 50V 0805
The Multilayer Ceramic Capacitors – SMD/SMT 39pF ±5% 50V 0805 is a high-quality surface-mount ceramic capacitor designed for precision electronic circuits requiring excellent stability and low electrical loss. Manufactured using multilayer ceramic technology, this capacitor provides reliable performance while occupying minimal PCB space, making it suitable for modern compact electronic designs.
Features:
- Surface-mount MLCC construction.
- 39pF capacitance.
- ±5% capacitance tolerance.
- 50VDC rated voltage.
- C0G (NP0) Class 1 dielectric.
- Excellent temperature stability.
- Very low ESR and dielectric loss.
Specifications:
| Parameter | Value |
|---|---|
| Manufacturer | Samsung Electro-Mechanics |
| Model | CL21C390JBANNNC |
| Capacitance | 39pF |
| Tolerance | ±5% |
| Rated Voltage | 50VDC |
| Dielectric Type | C0G (NP0) |
| Capacitor Type | Multilayer Ceramic Capacitor |

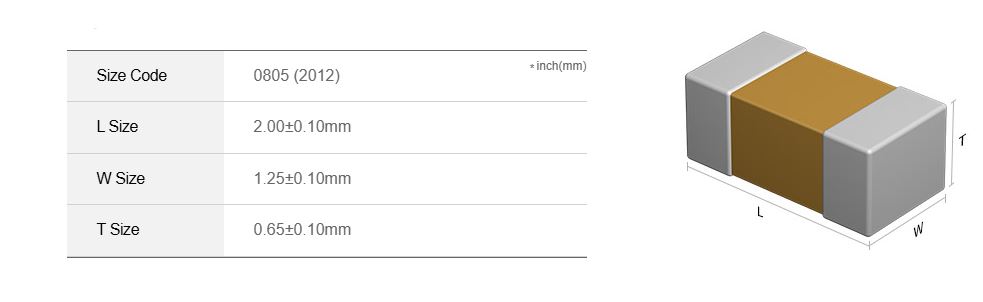

| Package Size | 0805 (2012 Metric) |
| Dimensions (L×W) | 2.0mm×1.25mm |
| Thickness | 0.65mm |
| Mounting Type | Surface Mount (SMD/SMT) |
| Operating Temperature | -55°C to +125°C |

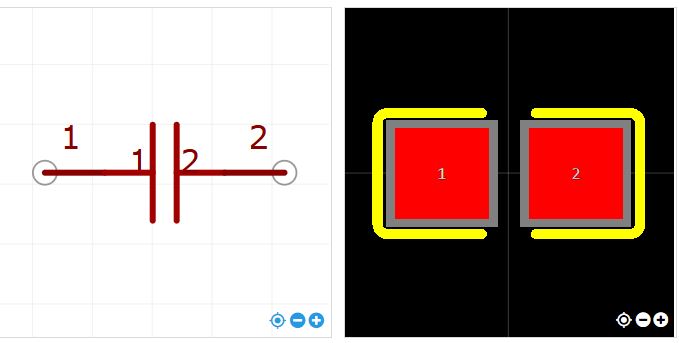

Foot print:
Applications:
- RF communication circuits.
- Oscillators.
- Crystal circuits.
- Resonant networks.
- Signal coupling.
- High-frequency filters.
- Timing circuits.
- Impedance matching networks.
- Embedded electronic systems.
- Consumer electronic devices.
Package Include:
1x Multilayer Ceramic Capacitors MLCC – SMD/SMT 39pF ±5% 50V 0805
