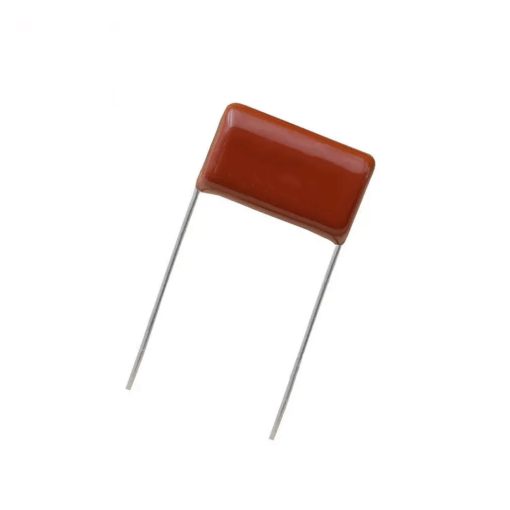

Polyester Capacitor 220nF 400V Pitch=16mm
This 220nF (0.22µF) 400V capacitor is a versatile passive component designed for reliable performance in various electronic applications. It offers excellent moisture resistance and long-term stability. Its non-inductive construction and self-healing properties make it a robust choice for high-frequency and high-voltage circuits.
Features
- Self-Healing Property
- Low Dissipation Factor
- Compact Size
Specifications
| Parameter | Technical Value |
|---|---|
| Capacitance | 220nF (0.22µF) |
| Rated Voltage | 400V DC |
| Lead Pitch | 16mm |
| Dimensions | 17 x 10.5 x 5.5 mm |
| Tolerance | ±10% (K) |
| Operating Temperature | -40°C to +105°C |
Applications
- Power Supplies
- Signal Processing
- Lighting Electronics
- Consumer Electronics
- Industrial Automation
Package Content
- 1 x Polyester Capacitor 220nF 400V Pitch=16mm
