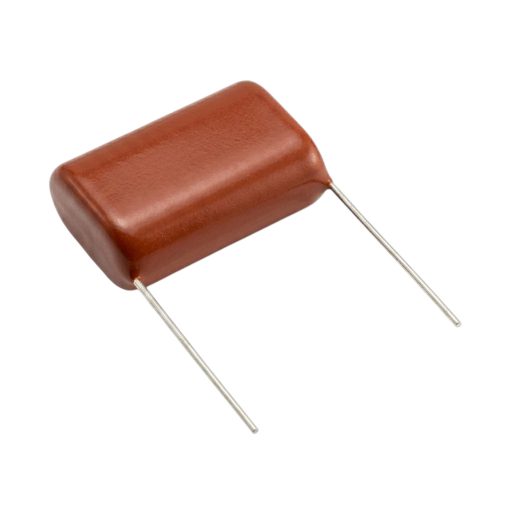

Polyester Capacitor 1.5uF 630V Pitch=25mm
This high-performance 1.5µF polyester film capacitor is designed for robust performance in high-voltage circuits. Rated at 630V DC, it offers excellent dielectric strength and stability, making it an essential component for power supply filtering, signal coupling, and noise suppression. Its polyester construction provides a self-healing property, ensuring the capacitor remains functional even after a momentary dielectric breakdown.
Features
- High Voltage Rating
- Self-Healing Technology
- Non-Polarized
- Low Dissipation Factor
- Radial Leaded Design
Specifications
| Attribute | Specification |
| Capacitance | 1.5 µF (1500nF) |
| Voltage Rating (DC) | 630V DC |
| Tolerance | ±5% (J) |
| Dielectric Material | Metallized Polyester Film (PET) |
| Terminal Type | Radial Leaded (Through-Hole) |
| Operating Temperature | -40°C to +105°C |
| Mounting Type | THT (Through-Hole Technology) |

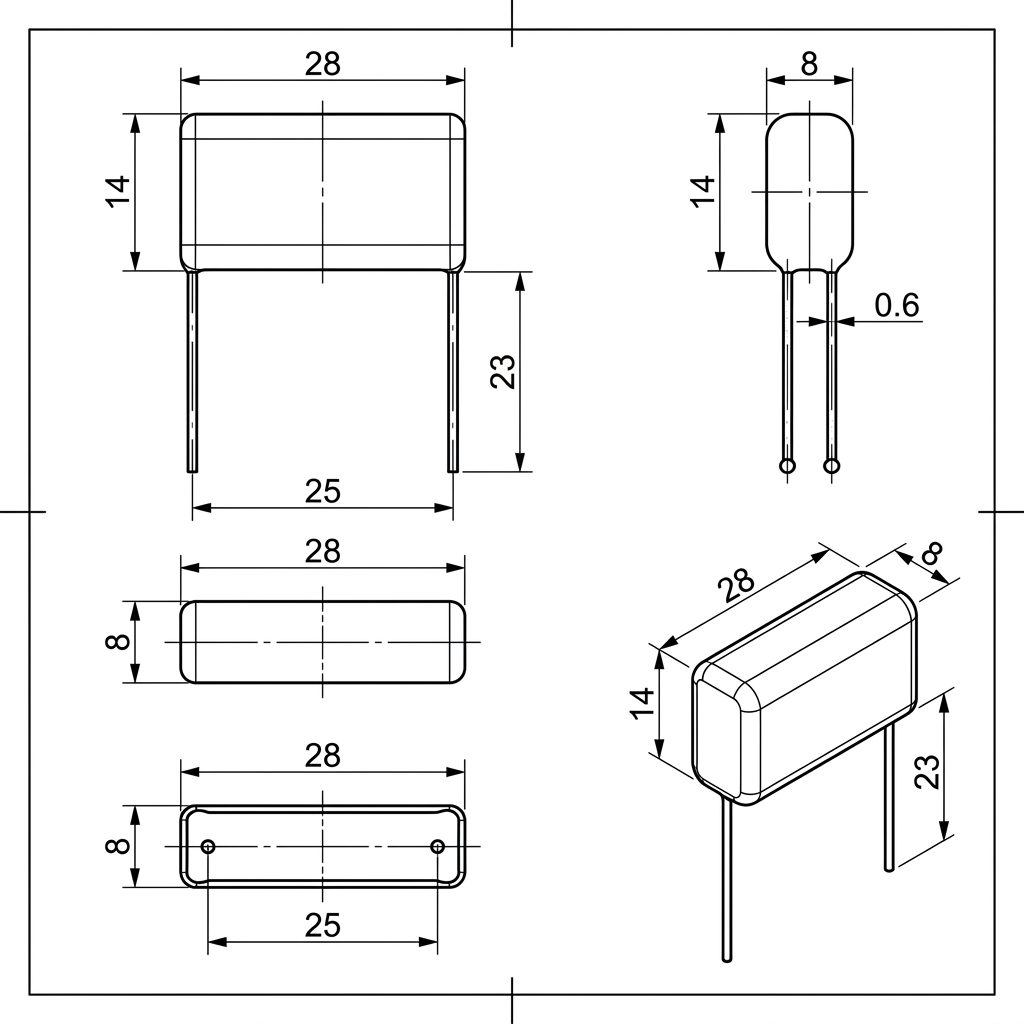

| Dimensions | 28 x 14 x 8 mm |
| Pitch | 25 mm |
Applications
- Power Supplies
- Signal Coupling/Decoupling
- Bypass & Timing
- Lighting & Ballasts
Package Content
- 1x Polyester-Capacitor 1.5uF 630V Pitch=25mm
