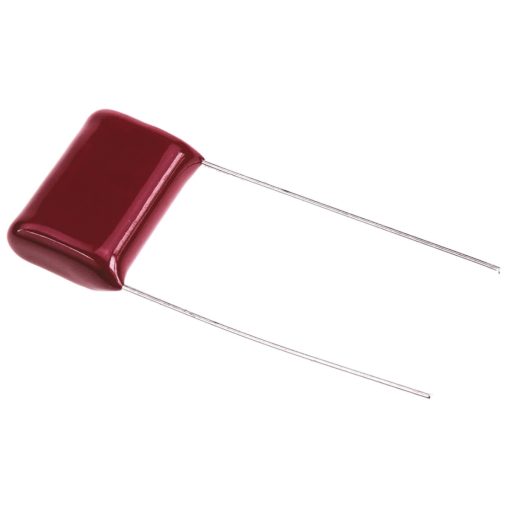

Polyester Capacitor 100nF 630V Pitch=9mm
This is a high-quality Polyester Capacitor with a capacitance of 100nF (0.1µF) and a robust 630V voltage rating. Often referred to by its code “104,” this capacitor is designed for reliability in both DC and pulse-loading circuits.
Features
- High Voltage Rating
- Non-Polarized
- Low Loss & High Insulation
Specifications
| Parameter | Value |
|---|---|
| Capacitance | 100nF (0.1µF) |
| Rated Voltage | 630V DC |
| Tolerance | ±5% (J) |
| Operating Temperature | -40°C to +105°C |
| Body Dimensions | 11.5 x 8 x 4.5 mm |
| Lead Spacing (Pitch) | 9mm |
Applications
- High-voltage power supply filtering and noise suppression.
- Decoupling and coupling in analog, audio, and switching circuits.
- Pulse and spike handling in power electronics—thanks to reliable, repeatable performance.
- General-purpose circuits needing stable, compact capacitors with high voltage tolerance.
Package Contents
- 1× Polyester-Capacitor 100nF 630V.
