N-KZ-3Y N-Type Straight Female Socket Bulkhead Mount Solder Cup Connector 50 Ohm For Cable RG58 50 ohm
The N-KZ-3Y is a straight N-Type female socket bulkhead connector designed to provide a secure RF connection between coaxial cable assemblies and equipment panels or enclosures. It features an N-Type female interface and a bulkhead mounting configuration, allowing the connector to be mechanically secured through a panel while maintaining a reliable 50-ohm RF path.
This connector is suitable for coaxial cables such as RG58 and is commonly used in antenna systems, wireless communication equipment, RF test equipment, and other high-frequency applications. The threaded N-Type interface provides secure mating, while the bulkhead design is useful for chassis-mounted RF connections.
Features:
- Straight N-Type female connector.
- Bulkhead mounting configuration.
- Designed for coaxial cable termination.
- Secure threaded RF interface.
- Suitable for panel and enclosure installation.
- Suitable for antenna and RF communication systems.
- Compatible with several common coaxial cable types.
Specifications:
| Specification | Value |
|---|---|
| Product Type | RF Coaxial Connector |
| Series | N-Type |
| Model | N-KZ-3Y |
| Connector Type | N-Type Female Socket |
| Gender | Female |
| Configuration | Straight |
| Mounting Type | Bulkhead |
| Impedance | 50 Ohm |
| Compatible Cable | RG58/RG142/RG223/RG303 |
| Coupling Type | Threaded |
| Application | RF / Coaxial |
Note:
- Panel Mount: Bulkhead.
- Cable Mount: solder Cup.
Applications:
- Antenna systems.
- Wireless communication equipment.
- RF transceivers.
- RF test and measurement equipment.
- Coaxial cable assemblies.
- Panel-mounted RF connections.
- Communication enclosures.
- Base station equipment.
- RF laboratory setups.

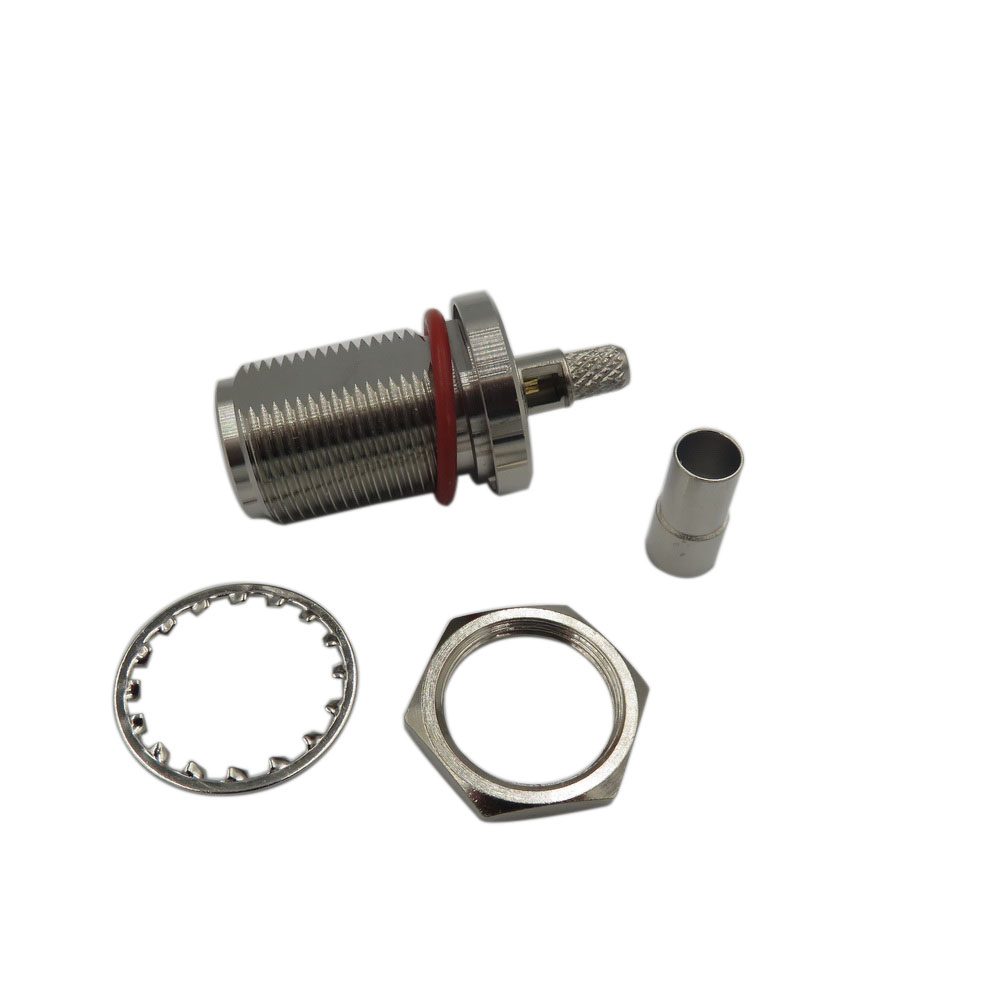

Package Included:
- 1 × N-KZ-3Y Straight Female Socket Bulkhead Connector.
- 1 × Gold-Plated Center Contact Pin.
- 1 × Crimp Ferrule (Sleeve).
- 1 × Hex Mounting Nut.
- 1 × Spring Washer.
