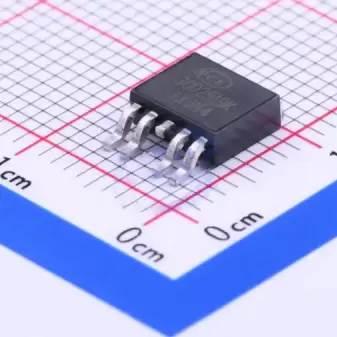

NCE30D2519K SMD Mosfet Transistor N&P Channel 30V 25A TO-252-4L
24.00 EGP
Buy Now
Availability:
In Stock
SKU:5746174408543
| Manufacturer |
Wuxi NCE Power Semiconductor |
| Mfr. Part # |
NCE30D2519K |
| Package |
TO-252-4 |
| Datasheet |
Wuxi NCE Power Semiconductor NCE30D2519K |
| Description |
30V 8.5mΩ@10V,7A 21W 2V@250uA 90pF@15V 1PCSN-Channel&1PCSP-Channel 450pF@15V 9.5nC@10V -55℃~+175℃@(Tj) TO-252-4 MOSFETs ROHS |
Specifications:
| Attribute |
Value |
| Category |
Transistors/MOSFETs |
| Datasheet |
Wuxi NCE Power Semiconductor NCE30D2519K |
| RoHS |
|
| Drain Source Voltage (Vdss) |
30V |
| Continuous Drain Current (Id) |
– |
| Drain Source On Resistance (RDS(on)@Vgs,Id) |
8.5mΩ@10V,7A |
| Power Dissipation (Pd) |
21W |
| Gate Threshold Voltage (Vgs(th)@Id) |
2V@250uA |
| Reverse Transfer Capacitance (Crss@Vds) |
90pF@15V |
| Type |
1PCSN-Channel&1PCSP-Channel |
| Input Capacitance (Ciss@Vds) |
450pF@15V |
| Total Gate Charge (Qg@Vgs) |
9.5nC@10V |
| Operating Temperature |
-55℃~+175℃@(Tj) |
