| Manufacturer | Wuxi NCE Power Semiconductor |
| Mfr. Part # | NCE609 |

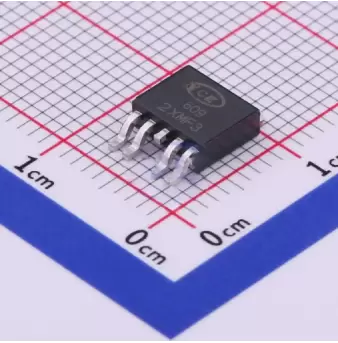

| Package | TO-252-4L |
| Datasheet | Wuxi NCE Power Semiconductor NCE609 |
| Description | 40V 14mΩ@10V,10A 40W 1.5V@250uA 135pF@20V 1PCSN-Channel&1PCSP-Channel 1.5nF@20V 24nC@10V -55℃~+150℃@(Tj) TO-252-4L MOSFETs ROHS |
Specifications
| Attribute | Value |
| Category | Transistors/MOSFETs |
| Datasheet | Wuxi NCE Power Semiconductor NCE609 |
| RoHS | |
| Drain Source Voltage (Vdss) | 40V |
| Continuous Drain Current (Id) | – |
| Drain Source On Resistance (RDS(on)@Vgs,Id) | 14mΩ@10V,10A |
| Power Dissipation (Pd) | 40W |
| Gate Threshold Voltage (Vgs(th)@Id) | 1.5V@250uA |
| Reverse Transfer Capacitance (Crss@Vds) | 135pF@20V |
| Type | 1PCSN-Channel&1PCSP-Channel |
| Input Capacitance (Ciss@Vds) | 1.5nF@20V |
| Total Gate Charge (Qg@Vgs) | 24nC@10V |
| Operating Temperature | -55℃~+150℃@(Tj) |
