Neutrik XLR Cable Connector Male 3 Poles For Wire
Neutrik NC3MXX 3-pole male XLR connector with nickel housing, silver contacts. Durable, ergonomic, reliable for pro audio. Enhanced strain relief, easy assembly.
130.00 EGP
Buy NowNeutrik XLR Cable Connector Male 3 Poles For Wire

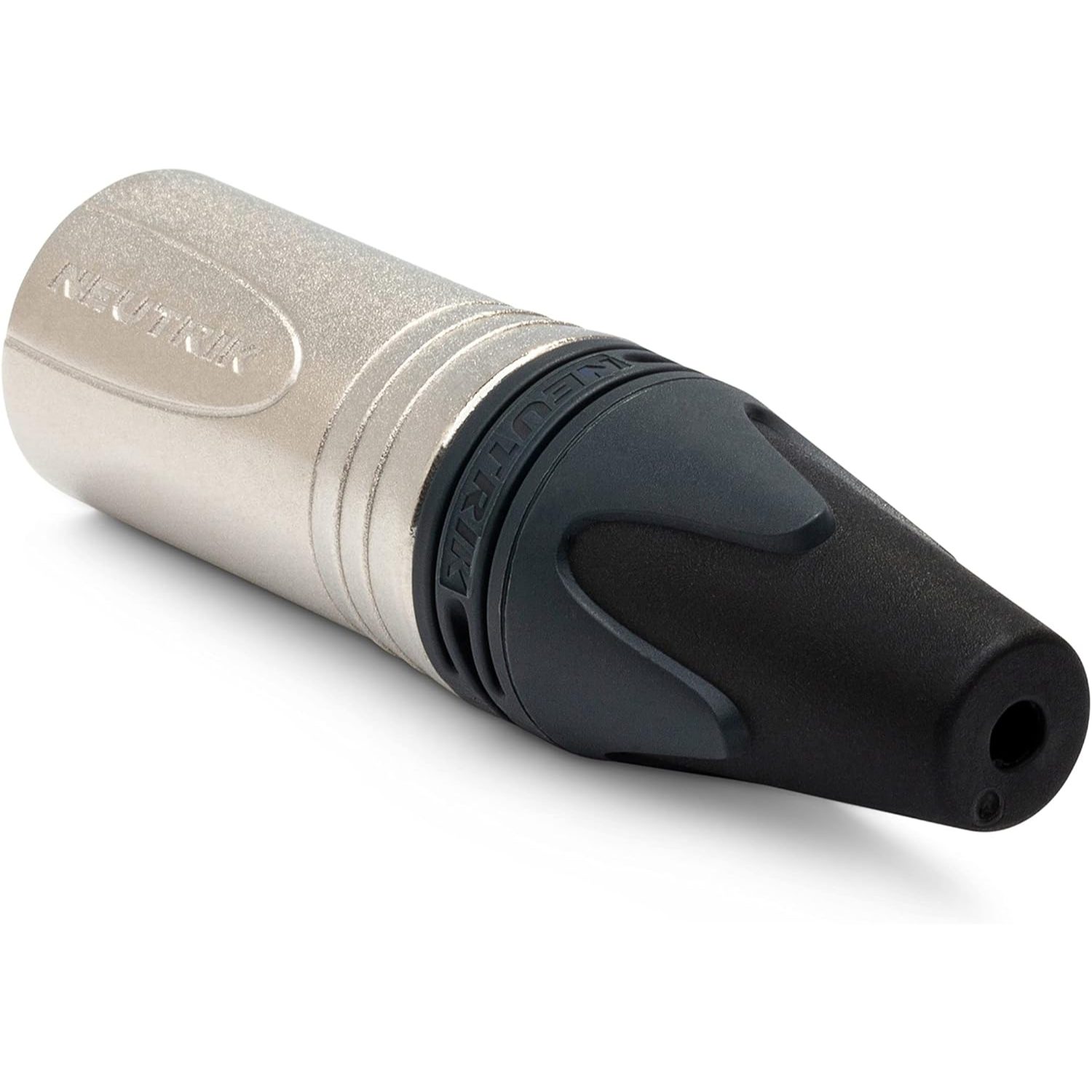

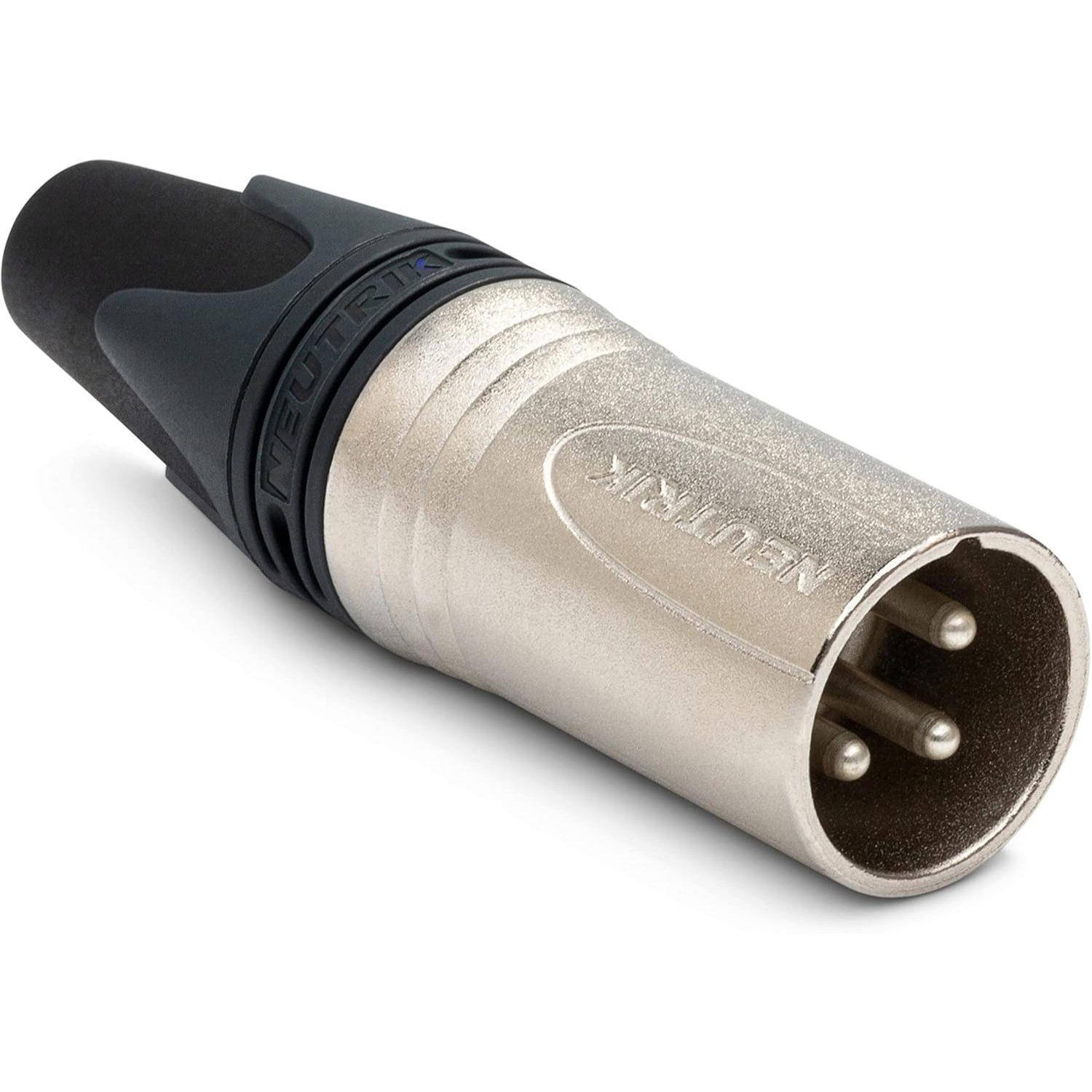

The Neutrik NC3MXX is a 3-pole male XLR cable connector featuring a nickel housing and silver contacts. As the next generation of the globally accepted XLR connector standard, this successor to the X series brings enhanced reliability, simplified assembly, and superior contact integrity and cable strain relief. Designed for professional audio applications, its durable and ergonomic construction makes it a top choice for audio engineers and technicians.
Features
- Enhanced Locking Mechanism: Improved locking recess without a “window” increases housing durability.
- Superior Cable Protection: Polyurethane boot provides high resistance to cable bending stresses.
- Ergonomic Design: Sleek, valuable, and easy-to-handle build.
- Damage-Resistant Shell: Internal thread on the shell is well-protected against wear and tear.

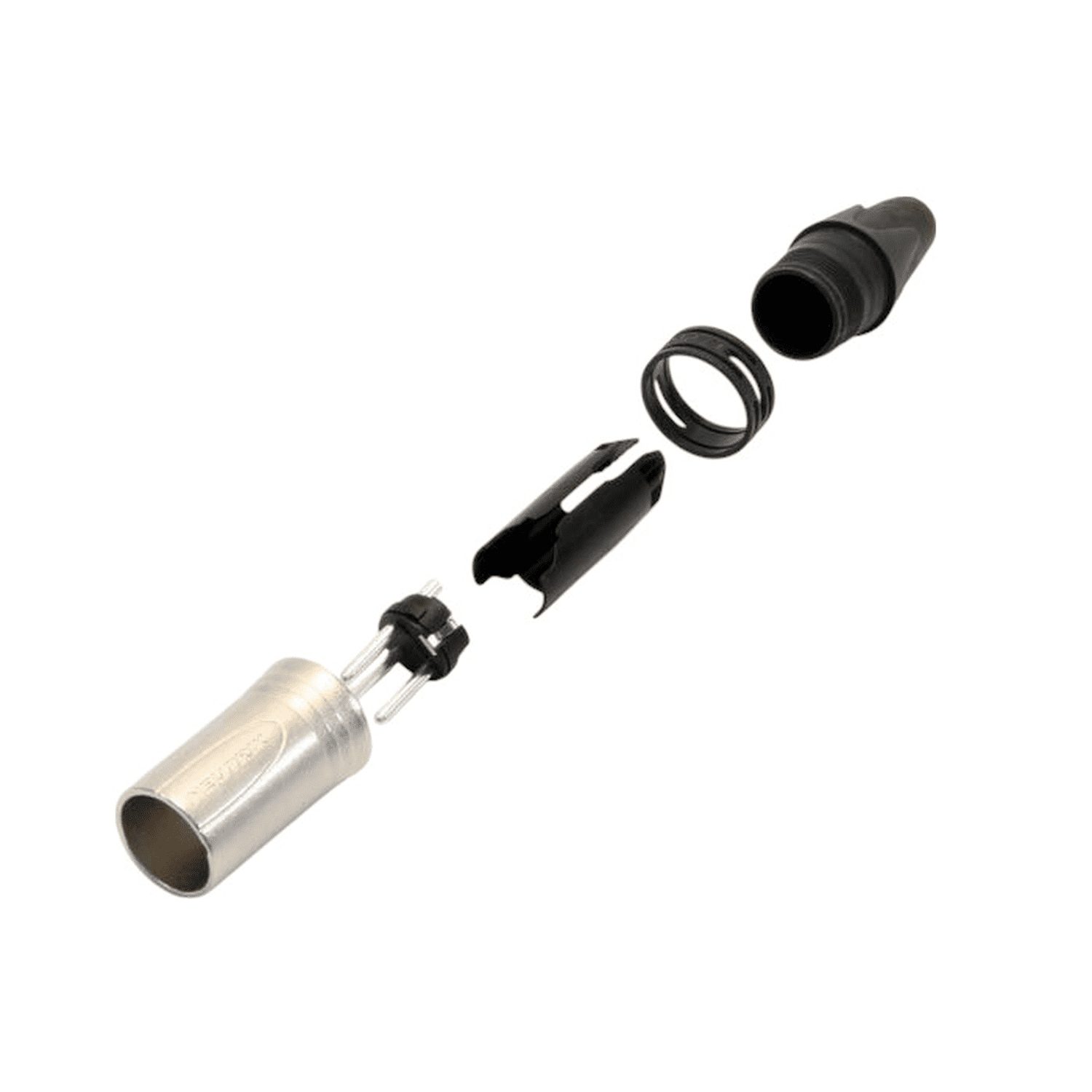

- Advanced Strain Relief: Improved chuck-type design offers higher pullout force and faster, easier assembly.
- Customization Options: Colored rings and boots available for coding or identification.
- Rugged Build: Zinc diecast shell ensures long-lasting dependability.
Specifications
| Category | Parameter | Value |
|---|---|---|
| Electrical | Capacitance between contacts | ≤ 4 pF |
| Contact resistance | ≤ 3 mΩ | |
| Dielectric strength | 1.5 kVdc | |
| Insulation resistance | > 10 GΩ (initial) | |
| Rated current per contact | 16 A | |
| Rated voltage | < 50 V | |
| Mechanical | Cable O.D. | 3.5 – 8.0 mm |
| Insertion force | ≤ 20 N | |
| Withdrawal force | ≤ 20 N | |
| Lifetime | > 1000 mating cycles | |
| Wiresize | Max. 2.5 mm² / 14 AWG | |
| Wiring | Solder contacts | |
| Locking device | Latch lock | |
| Material | Boot | Polyurethane |
| Contact plating | 2 μm Ag (silver) | |
| Contacts | Brass (CuZn39Pb3) | |
| Insert | Polyamide (PA66) | |
| Locking element | Zinc diecast (ZnAl4Cu1) | |
| Shell | Zinc diecast (ZnAl4Cu1) | |
| Shell plating | Nickel | |
| Strain relief | Polyacetal (POM) | |
| Environmental | Flammability | UL 94 V-0 |
| Standard compliance | IEC 61076-2-103 | |
| Protection class | IP 40 | |
| Solderability | Complies with IEC 68-2-20 | |
| Temperature range | -30°C to +80°C |
Applications
- Connecting microphones to mixers, amplifiers, or other audio equipment.
- Live sound reinforcement for concerts and events.
- Studio recording for high-quality audio production.
- Any application requiring a reliable, durable XLR connection.
