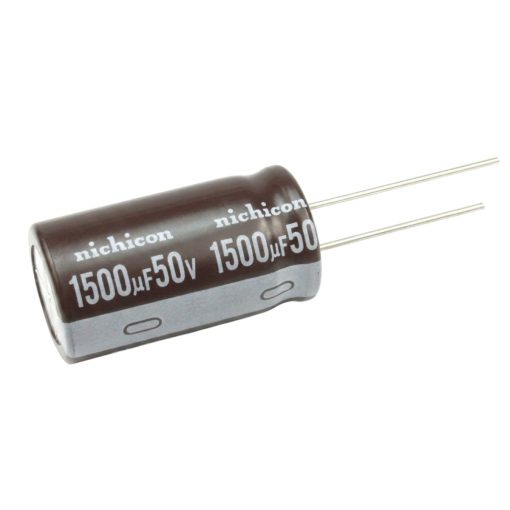

Nichicon Aluminum Electrolytic Capacitor 1500uF 50V 16×31.5mm
The Nichicon PW Series is a high-reliability, radial lead aluminum electrolytic capacitor specifically designed for switching power supplies. It offers a smaller case size and lower impedance than the PM series, making it ideal for compact, high-efficiency electronic designs. With a temperature rating of up to 105°C and an extended life of up to 8000 hours, it is built for long-term stability in demanding environments.
Features
- Low Impedance
- High Reliability
- Miniature Design
- Durability
Specifications
| Series | PW (Miniature, Low Impedance) |
|---|---|
| Capacitance | 1500 μF |
| Rated Voltage | 50 V |

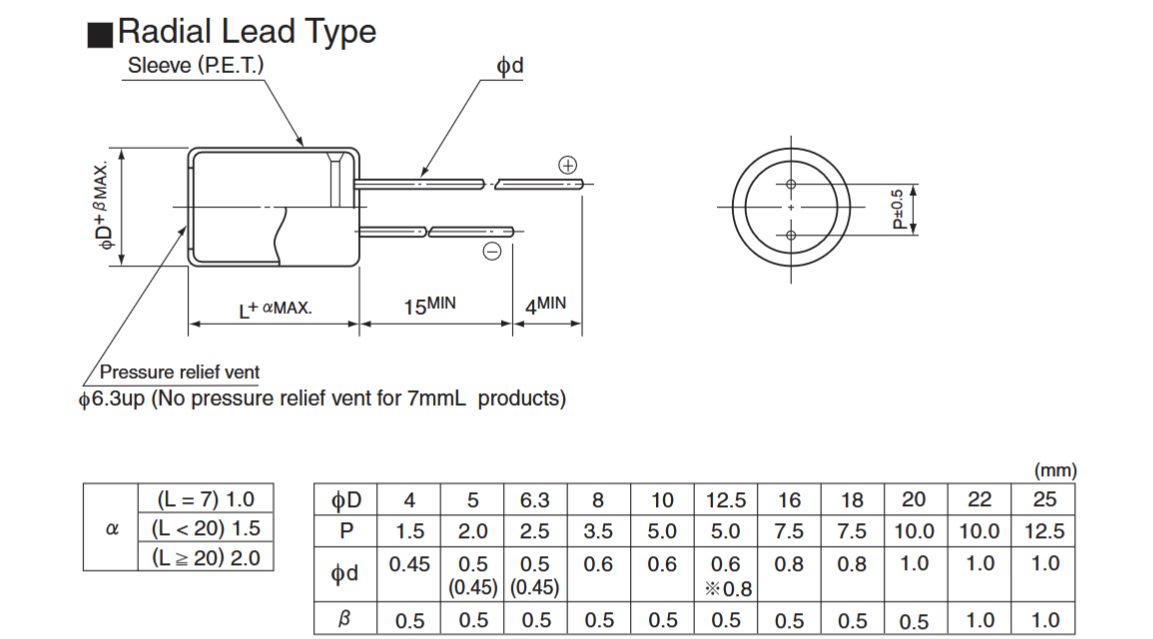

| Case Size (φD × L) | 16 × 31.5 mm |
| Lead Spacing (P) | 7.5 mm |
| Lead Diameter (φd) | 0.8 mm |
| Impedance (Max at 100kHz, 20°C) | 0.018 Ω |
| Impedance (Max at 100kHz, -10°C) | 0.036 Ω |
| Rated Ripple Current | 3010 mArms (at 105°C / 100kHz) |
| Category Temperature Range | -55 to +105°C |
| Capacitance Tolerance | ±20% (at 120Hz, 20°C) |
| Tangent of Loss Angle (tan δ) | 0.10 max (at 120Hz, 20°C)* |
| Endurance | 8,000 Hours at 105°C |
Applications
- Switching Power Supplies (SMPS)
- DC-DC Converters
- High-frequency filtering
- Industrial control boards
- Consumer electronics output smoothing
Package Content
- 1 x Nichicon Aluminum Electrolytic Capacitor 1500uF 50V 16×31.5mm
