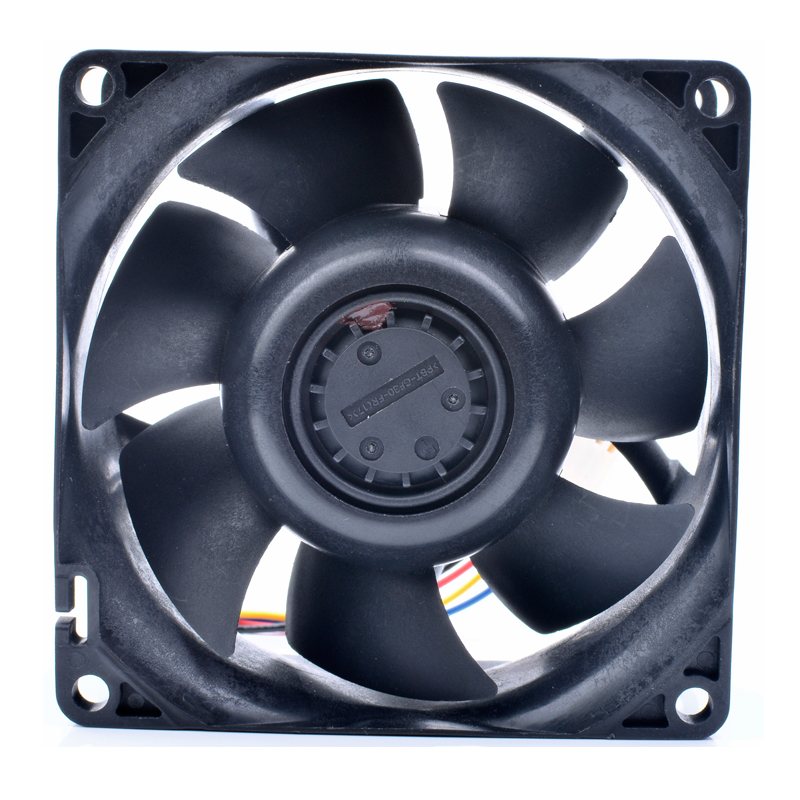

Nidec H80E12BS1A7-07 DC Fan 12V 1.76A 80x80x38mm (USED LIKE NEW)
The NIDEC H80E12BS1A7-07 is a high-speed DC brushless axial cooling fan designed for demanding thermal management applications. Engineered by NIDEC, a globally recognized manufacturer of precision cooling solutions, this fan delivers powerful airflow and reliable performance in compact environments.
Features:
- High airflow design suitable for server and industrial cooling applications.
- Operates at 12VDC with high current capability for powerful performance.
- Ball bearing construction ensures long lifespan and reliability.
- Compact 80x80x38mm form factor for standard mounting compatibility.
Specifications:
| Parameter | Value |
|---|---|
| Manufacturer | NIDEC |
| Model | H80E12BS1A7-07 |
| Fan Type | DC Brushless Axial Fan |
| Rated Voltage | 12VDC |
| Operating Voltage | 10.2–13.8VDC |
| Rated Current | 1.76A |
| Power Consumption | 20.76W |
| Dimensions | 80x80x38mm |
| Bearing Type | Ball Bearing |
| Speed | 7800RPM±5% |
| Connector Type | 4Wire |
| Control Type | PWM Supported |
| Operating Temperature | -10°C~+70°C |
| Storage Temperature | -40°C~+70°C |
Applications:
- Server and rack‑mounted equipment cooling in data centers and server rooms.
- High‑density industrial electronics enclosures requiring sustained high‑volume airflow.
- Overclocked PC systems and extreme‑performance gaming rigs.
- Power supplies and UPS systems where enhanced thermal management is critical.
- Telecommunications and networking hardware with compact 80 mm cooling openings.
Package Include:
1x Nidec H80E12BS1A7-07 DC Fan 12V 1.76A 80x80x38mm (USED LIKE NEW)
