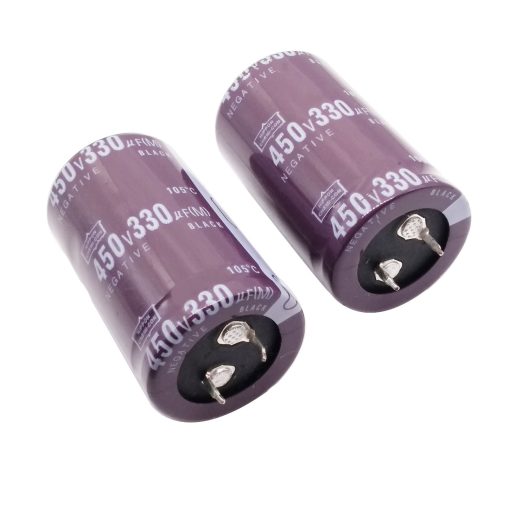

Aluminum Electrolytic Capacitor 330uF 450V 25.4×50mm
This high-performance aluminum electrolytic capacitor is a downsized snap-in component designed for high-voltage applications where space is limited. It provides a significant reduction in height while maintaining robust performance and high ripple current resistance, making it an ideal choice for compact, high-density electronic assemblies.
Features
- Compact Design
- High Ripple Capability
- Environmental Standard
Specifications
| Parameter | Specification |
|---|---|
| Nominal Capacitance | 330µF |
| Rated Voltage | 450Vdc |
| Case Size (φD × L) | 25.4 × 50mm |
| Rated Ripple Current | 1.52 Arms (at 105°C, 120Hz) |
| Category Temperature Range | -25 to +105°C |
| Capacitance Tolerance | ±20% (M) |
| Leakage Current (Max.) | I ≤ 3√CV (µA) after 5 minutes |
| Dissipation Factor (tan δ) | 0.20 (Max.) at 20°C, 120Hz |
| Endurance | 2,000 hours at 105°C |
Applications
- Inverter Control
- Switching Power Supplies
Package Content
- 1 x Aluminum Electrolytic Capacitor 330uF 450V 25.4×50mm
