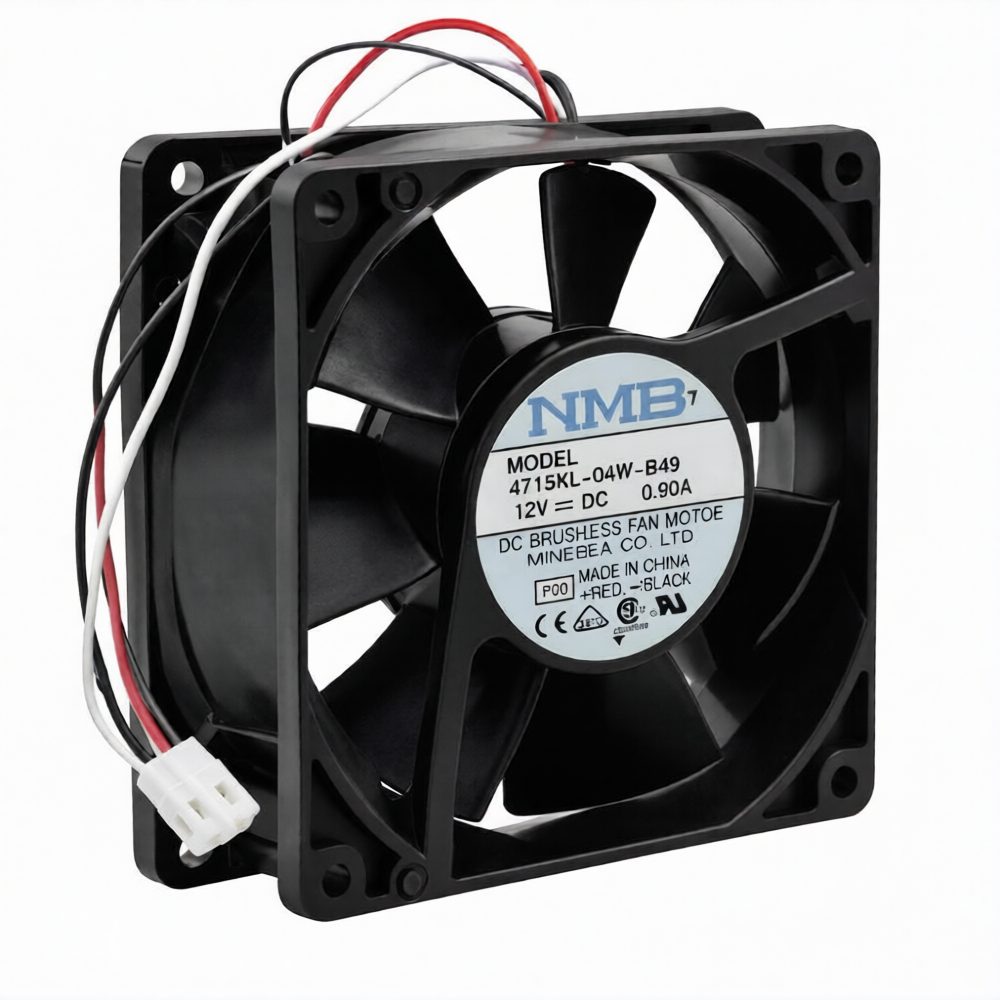

NMB 4715KL-04W-B46 DC Fan 12V 0.9A 120×120×38mm (USED LIKE NEW)
High-performance 4715KL-04W-B46 12V DC brushless cooling fan commonly used for cooling servers, industrial equipment, power supplies, and large electronic enclosures.
350.00 EGP
Buy NowNMB 4715KL-04W-B46 DC Fan 12V 0.9A 120×120×38mm (USED LIKE NEW)
The NMB-MAT 4715KL-04W-B46 is a powerful DC brushless axial cooling fan designed for applications requiring strong airflow and reliable thermal management. Manufactured by NMB-MAT (MinebeaMitsumi), this fan features a 120 × 120 × 38 mm industrial form factor, making it ideal for cooling servers, power supplies, industrial controllers, and networking equipment where high airflow is required to prevent overheating.
Operating at 12V DC with a current rating of 0.9A, this fan is capable of delivering high airflow while maintaining stable and continuous operation. The fan typically uses ball bearings, ensuring long operational life and reliable performance even in demanding environments. With its robust design and strong cooling capability, the 4715KL series is widely used in server racks, electronic cabinets, and heavy-duty cooling systems.
Features:
- Durable brushless DC motor design.
- Large 120mm industrial cooling fan.
- High airflow for effective heat dissipation.
- Ball-bearing construction for long lifespan.
- Stable and reliable continuous operation.
- Strong airflow with high static pressure capability.
- Standard square frame for easy mounting.
- Designed for servers and industrial electronics.
Specifications:
| Parameter | Value |
|---|---|
| Model | 4715KL-04W-B46 |
| Brand | NMB-MAT / Minebea |
| Fan Type | DC Brushless Axial Fan |
| Rated Voltage | 12V DC |
| Rated Current | 0.9A |
| Power Rating | 8.4W |
| Fan Dimensions | 120 × 120 × 38 mm |
| Speed | ~3200 RPM |
| Airflow | ~118 CFM |
| Noise Level | ~47 dB |
| Bearing Type | Ball Bearing |
| Condition | Used – Like New |
Pinout:
| Pin | Wire Color | Function |
|---|---|---|
| 1 | Black | Ground (GND) |
| 2 | Red | +12V Power |
| 3 | Yellow | Tachometer / Speed Signal |
| 4 | Blue (optional) | PWM Speed Control |
Applications:
- Server and data-center cooling.
- Industrial control systems.
- Power supply units.
- Network switches and telecom equipment.
- Electronic cabinets and rack systems.
- Computer case and workstation cooling.
- DIY electronics cooling projects.
Package Includes:
- 1x NMB 4715KL-04W-B46 DC Fan 12V 0.9A 120×120×38mm (USED LIKE NEW).
| Weight | 253 g |
|---|---|
| Dimensions | 120 × 120 × 38 mm |
