Module with temperature sensor. For control, used is an analog or digital output. It detects the temperature in the range from -55°C to 125°C. It is powered with the voltage of 5 V.

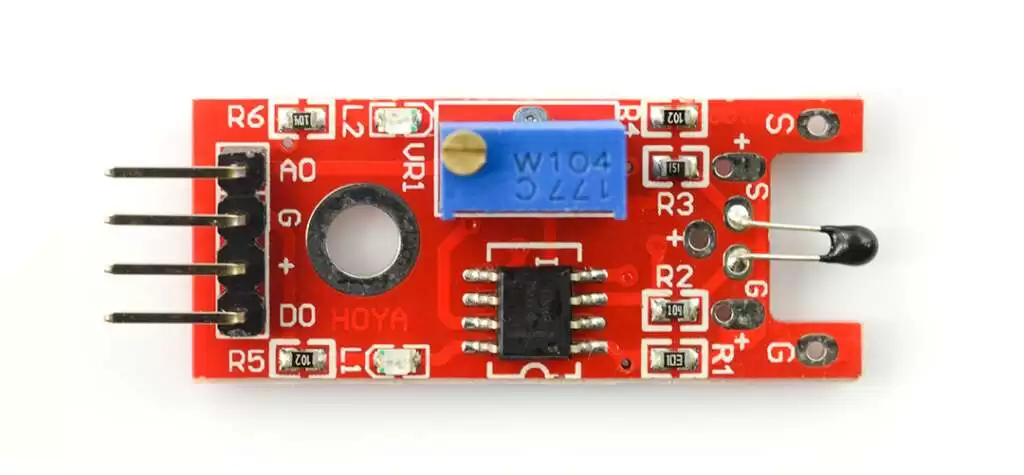

Product Description: Temperature sensor
Module with temperature sensor. For control, used is an analog or digital output. It detects the temperature in the range from -55°C to 125°C. It is powered with the voltage of 5 V.
Connection of Temperature sensor
The sensor works any microcontroller with digital or analog inputs, including Arduino. To read data, simply connect the power supply and output pin to any input of the microcontroller, and read its status.

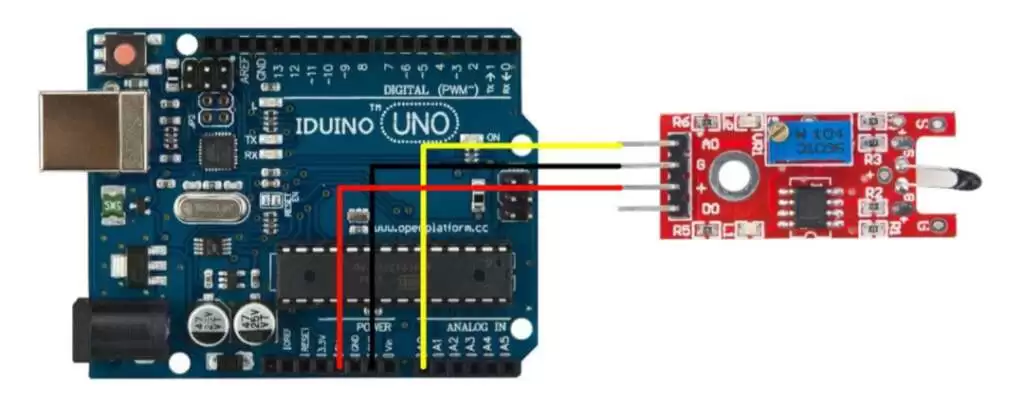

Example of connecting to Arduino.
| PIN | DESCRIPTION |
|---|---|
| VCC | Supply voltage is 5V. |
| GND | The ground of the system. |
| A0 | Analog signal. |
| D0 | Digital signal. |
Specifications of the temperature sensor
- Supply voltage: 5 V
- Type: analog / digital
- Measurement range: from -55 °C to 125 °C
- Accuracy: +/- 0.5 °C
