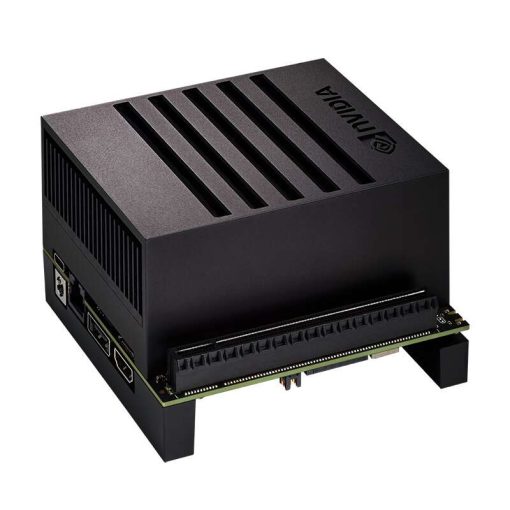

NVIDIA Jetson AGX Xavier 16GB Developer Kit With External SSD Hard 128GB
The NVIDIA Jetson AGX Xavier 16GB Developer Kit With External SSD Hard 128GB is a professional AI computing platform designed for advanced edge AI, robotics, and autonomous machine applications. Built around the powerful NVIDIA Xavier System-on-Module (SoM), this developer kit delivers exceptional computing performance in a compact and energy-efficient design.
The system integrates a 512-core NVIDIA Volta GPU with Tensor Cores and an 8-core ARM v8.2 64-bit CPU, enabling high-throughput parallel processing for deep learning, computer vision, and AI inference workloads. The included 16GB LPDDR4x memory provides a high bandwidth of up to 137GB/s, ensuring smooth handling of complex neural networks and high-resolution sensor data.
Features:
- 512-core NVIDIA Volta GPU with Tensor Cores for AI acceleration.
- 8-core ARM v8.2 64-bit CPU for high-performance processing.
- 16GB LPDDR4x memory with up to 137GB/s bandwidth.
- Dual NVDLA engines for deep learning acceleration.
- Up to 32TOPS AI performance capability.
- Complete developer kit including module, carrier board, and cooling system.
- High-speed interfaces including PCIe Gen4 and USB3.1.
Specifications:
| Parameter | Value |
|---|---|
| GPU | 512-core NVIDIA Volta GPU with Tensor Cores |
| CPU | 8-core ARMv8.2 64-bit CPU |
| AI Performance | Up to32TOPS |
| Memory | 16GB LPDDR4x |
| Memory Bandwidth | 137GB/s |
| Internal Storage | 32GB eMMC5.1 |
| External Storage | 128GB SSD (Bundle) |
| DL Accelerator | 2x NVDLA |
| PCIe | PCIe Gen4 |
| USB | 2x USB3.1 Type-C |
| Display Output | HDMI2.0, DisplayPort |
| Camera Interface | 16-lane MIPICSI-2 |
| Networking | Gigabit Ethernet |
| Expansion | M.2 Key M, M.2 Key E |
| Power Input | 19VDC Adapter |
| Power Modes | 10W/15W/30W |
| Dimensions | 105x105mm |
Configuration:
Applications
- AI edge computing systems.
- Autonomous robots and drones.
- Smart surveillance and vision processing.
- Industrial automation and control systems.
- Healthcare AI devices.
- Smart city infrastructure.
- Deep learning inference and deployment.
Package Include:
- NVIDIA Jetson Xavier Development Kit
- AC Power Adapter
- Power Cord
- Cable type C USB to Type A
- Dongle type C USB to type A
- Quick Start Guide
- Safety Booklet
- SSD 128GB
