NVIDIA JETSON TX2 NX 4GB Development Kit
The NVIDIA Jetson TX2 NX Development Kit is a high-performance platform designed for deep learning and edge computing applications. Delivering 1.33 TFLOPS of AI performance, this kit is built around the Jetson TX2 NX Module, featuring the NVIDIA Pascal architecture with 256 CUDA cores. It offers 2.5 times the performance of the Jetson Nano, making it a powerful choice for embedded and edge computing tasks. The kit includes 16GB eMMC storage and does not support Micro SD cards. It supports cloud-native features with pre-trained AI models from NVIDIA NGC and TAO Toolkit, enabling developers to build and deploy software-defined features efficiently. This kit is ideal for critical embedded applications, including commercial robots, medical instruments, smart cameras, high-resolution sensors, automated optical inspection, smart factories, and IoT embedded systems.
Features
- AI Performance: 1.33 TFLOPS for robust computational capabilities.
- GPU: 256-core NVIDIA Pascal™ GPU for accelerated processing.
- CPU: Dual-core NVIDIA Denver 2 64-bit CPU and Quad-core Arm® Cortex®-A57 MPCore for efficient multitasking.
- Memory: 4 GB 128-bit LPDDR4 at 1600 MHz, with 51.2 GB/s bandwidth.

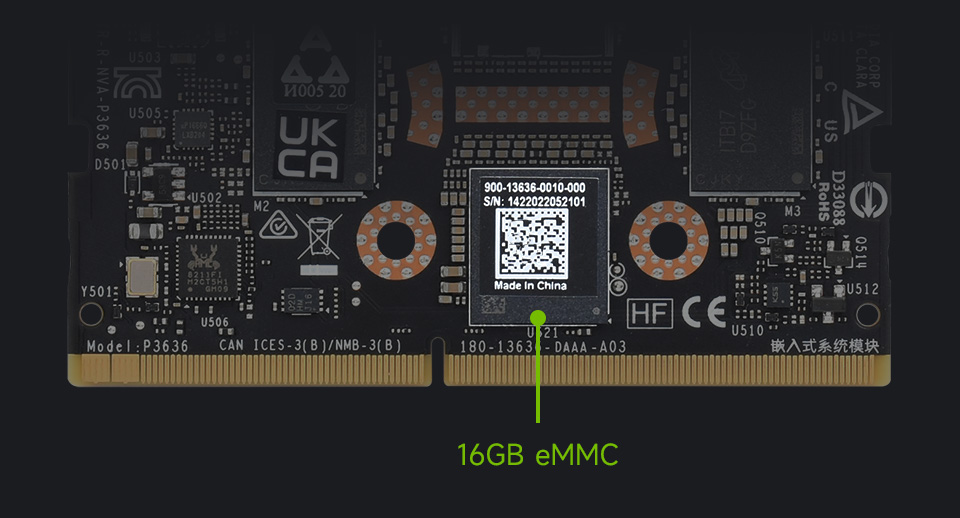

- Storage: 16 GB eMMC 5.1 for onboard storage.
- Power: Configurable between 7.5W and 15W for energy efficiency.
- PCIe: M.2 E KEY (PCIe Gen 4 x1) and M.2 M KEY (PCIe Gen 4 x4) for expansion.
- Camera Support: Up to 5 cameras (12 via virtual channels), 12 lanes MIPI CSI-2, D-PHY 1.2 (up to 30 Gbps).
- Video Encode: Supports H.265 and H.264, up to 1x 4K60, 3x 4K30, 4x 1080p60, 8x 1080p30 (H.265).
- Video Decode: Supports H.265 and H.264, up to 2x 4K60, 4x 4K30, 7x 1080p60, 14x 1080p30.
- Display: HDMI 2.0, DP 1.4, eDP 1.4, and 1 x 2 DSI (1.5Gbps/lane) for versatile display options.
- Networking: 10/100/1000 BASE-T Ethernet for high-speed connectivity.

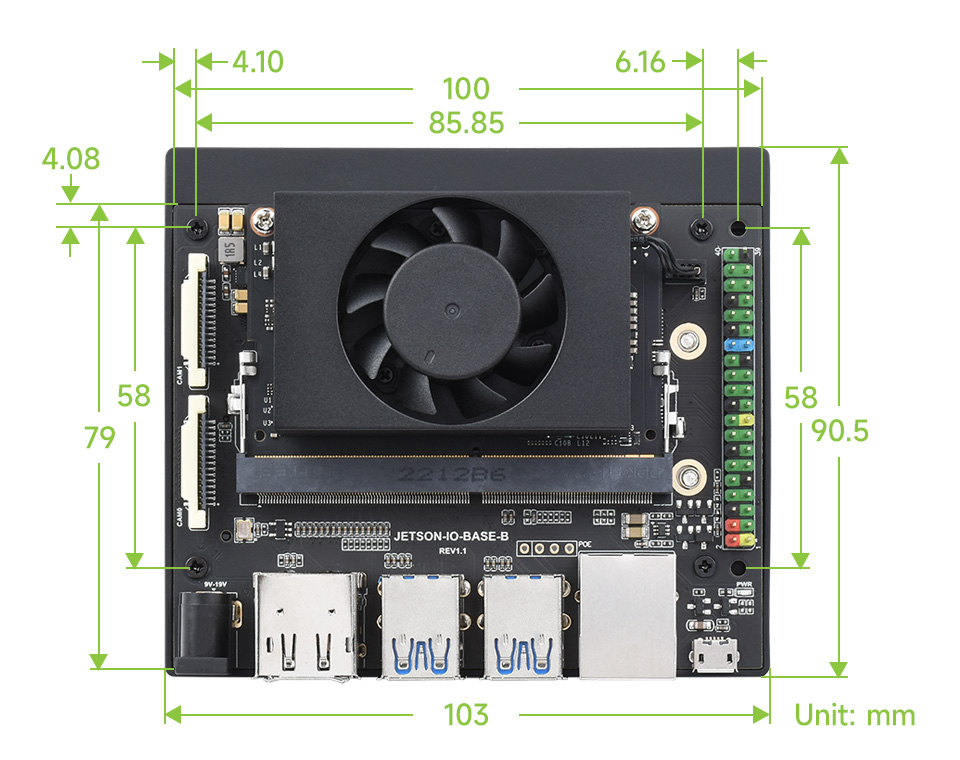

- Dimensions: 103 x 90.5 x 34 mm (kit), 69.6 x 45 mm (module with 260-pin SO-DIMM connector).

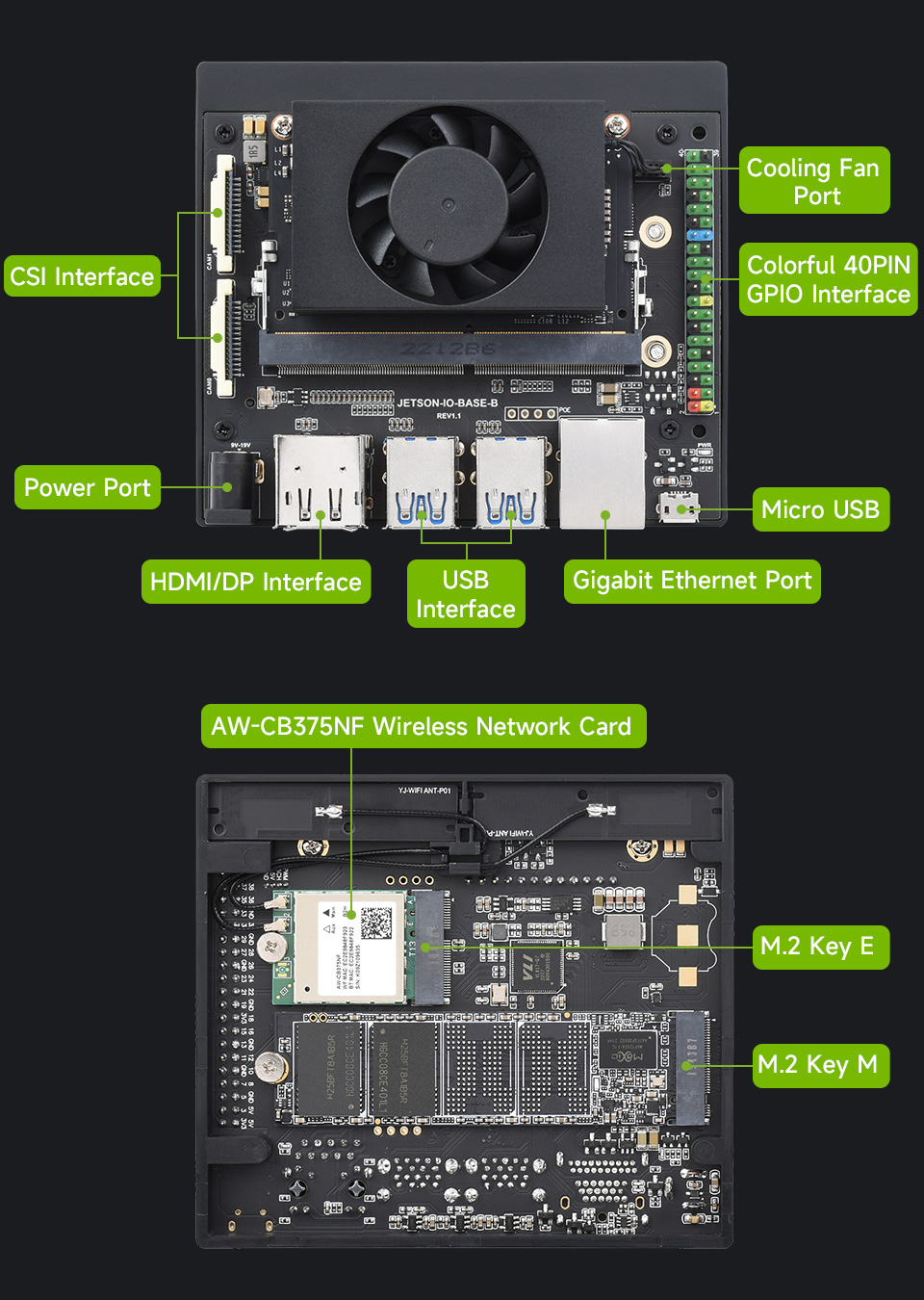

- Included Components: Dedicated cooling fan (5500RPM, aluminum alloy), high-quality carrier board (JETSON-IO-BASE-B), 128GB NVMe SSD, wireless network card, optional power adapter, and ~1.5m Ethernet cable.
Specifications
| Parameter | Details |
|---|---|
| AI Performance | 1.33 TFLOPS |
| GPU | 256-core NVIDIA Pascal™ GPU |
| CPU | Dual-core Denver 2 64-bit CPU and Quad-core Arm® Cortex®-A57 |
| Memory | 4 GB 128-bit LPDDR4 @ 1600 MHz, 51.2 GB/s |
| Storage | 16 GB eMMC 5.1 |
| Power | 7.5W – 15W |
| PCIe | 1 x1 (Gen2), 1 x2 (Gen2), total 30 GT/s |
| Camera | Up to 5 cameras (12 via virtual channels), 12 lanes MIPI CSI-2, D-PHY 1.2 |
| Video Encode | 1x 4K60, 3x 4K30, 4x 1080p60, 8x 1080p30 (H.265); similar for H.264 |
| Video Decode | 2x 4K60, 4x 4K30, 7x 1080p60, 14x 1080p30 (H.265 and H.264) |
| Display | 2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0, 1 x 2 DSI (1.5Gbps/lane) |
| Networking | 10/100/1000 BASE-T Ethernet |
| Mechanical | 103 x 90.5 x 34 mm (kit), 69.6 x 45 mm (module, 260-pin SO-DIMM connector) |
Applications
- Image Recognition: Identifying objects and patterns in visual data.
- Object Recognition: Detecting and classifying objects in real-time.
- Semantic Segmentation: Dividing images into meaningful segments for analysis.
- Pose Estimation: Determining the position and orientation of objects or people.
- Monocular Depth Estimation: Estimating depth from single-camera inputs.
- Position Tracking: Monitoring the movement of objects or devices.
- Commercial Robots: Powering autonomous robots for industrial and service applications.
- Medical Instruments: Enhancing diagnostic and monitoring devices with AI.
- Smart Cameras: Enabling intelligent surveillance and monitoring systems.
- High-Resolution Sensors: Processing data from advanced sensor arrays.
- Automated Optical Inspection: Improving quality control in manufacturing.
- Smart Factories: Supporting automation and IoT integration in production.
- IoT Embedded Systems: Facilitating edge computing in connected devices.
Package Contents
- 1 x Jetson TX2 NX Module with 16GB eMMC storage
- 1 x JETSON-IO-BASE-B high-quality carrier board
- 1 x Dedicated cooling fan (NVIDIA classic design, aluminum alloy, up to 5500RPM)
- 1 x 128GB NVMe SSD for additional storage
- 1 x Wireless network card for connectivity
- 1 x Power Adapter
- 1 x USB-A to USB-Micro Cable
- 1 x Power Cable

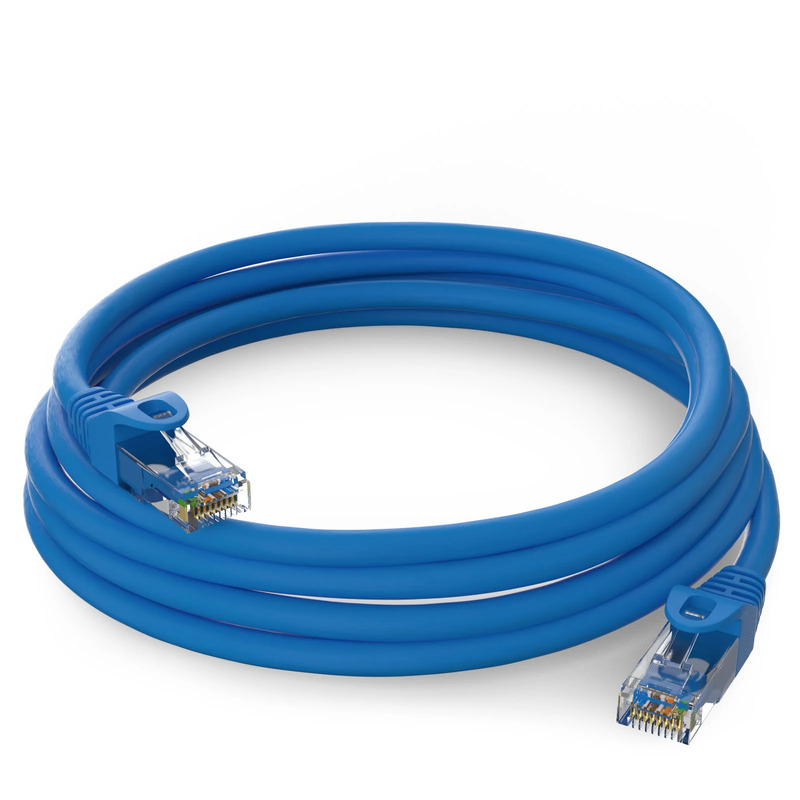

- 1 x Ethernet cable (2m, straight-through, blue)
