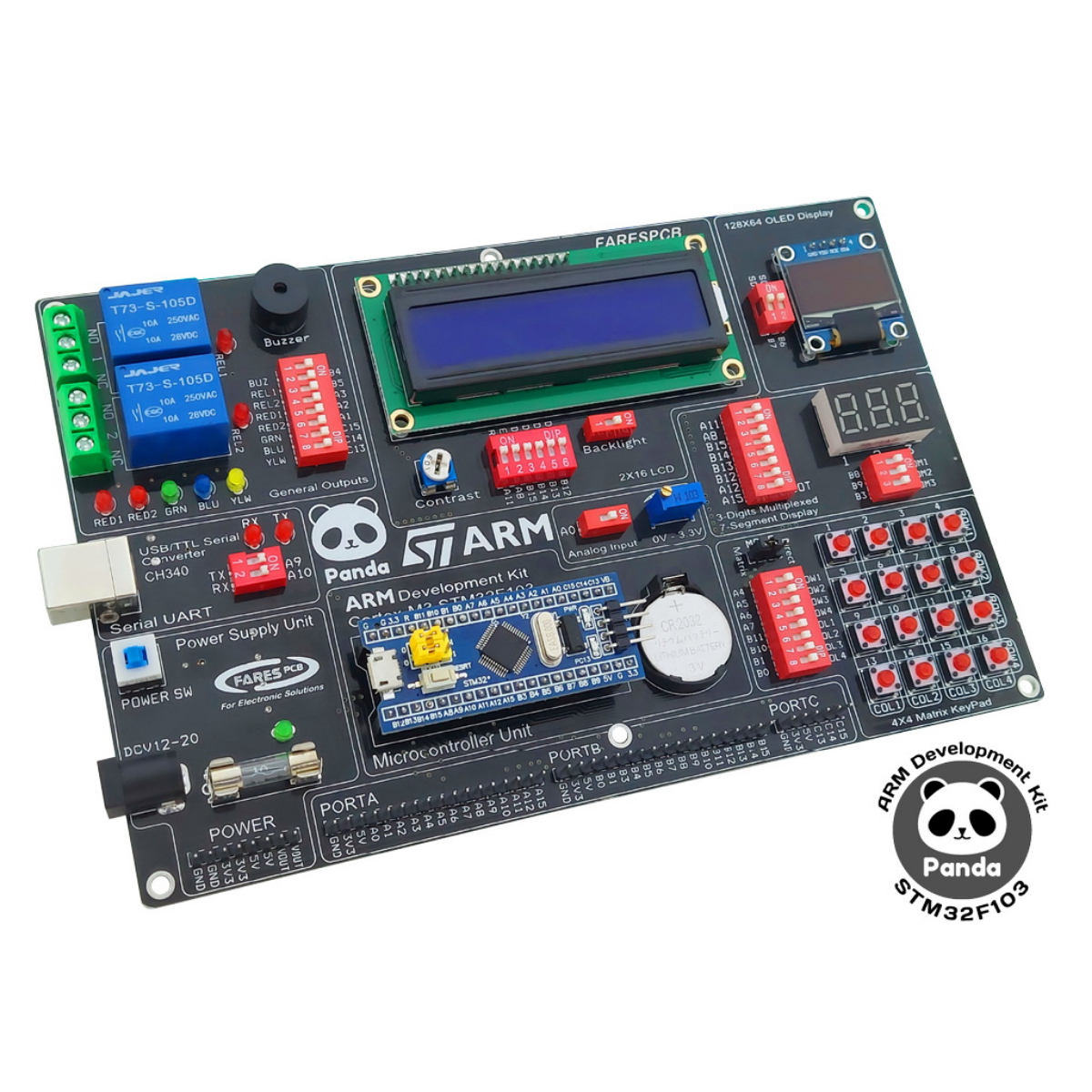

ARM Development Kit (Panda) Based on STM32F103C8T6
The Panda Kit is an entry-level development board designed to pave the way for beginners to discover ARM processor-based embedded systems. It is built around the popular and high-performance Blue Pill module, which features a 32-bit ARM Cortex-M3 microprocessor. This kit simplifies learning by integrating a wide range of common peripherals—from displays to relays—on a single board, eliminating the need for messy breadboard wiring.
Features
- Powerful Processing: Powered by the STM32F103C8T6 (Cortex-M3) running at 72MHz.
- Display: A 2×16 Character LCD.
- Rich Output Unit: Features 5 colored LEDs, 2 high-current relays (10A) with indicators, and a 5V buzzer.
- Versatile Input: 16 input switches supporting two operating modes (Matrix and Direct).
- Integrated Connectivity: On-board CH340 USB-to-TTL serial converter for easy debugging and communication.
- Expandable Design: All MCU GPIOs are brought out to pin headers for external interfacing.
- Real-Time Ready: Includes a CR2032 battery holder for RTC (Real-Time Clock) support.
Specifications
| Feature | Details |
| Microcontroller | ARM 32-bit Cortex-M3 (STM32F103C8T6) |
| CPU Frequency | 72 MHz |
| Memory | 64 KB Flash, 20 KB SRAM |
| Operating Voltage | 5V (USB or DC Adaptor) |
| GPIOs | 37 Pins |
| Analog Inputs | 10 Channels (12-bit ADC) |
| Timers | 3 x 16-bit Timers |
| On-board Displays | 2×16 LCD, 3-Digit 7-Segment |
| Power Protection | Integrated 1A Fuse |
Applications
- Educational Learning
- Prototyping
- Industrial Controls
- IoT Development
Package Content
- 1 x ARM Development Kit (Panda) Based on STM32F103C8T6
- 1 x CR2032 Battery.
