Avr project kit + working area

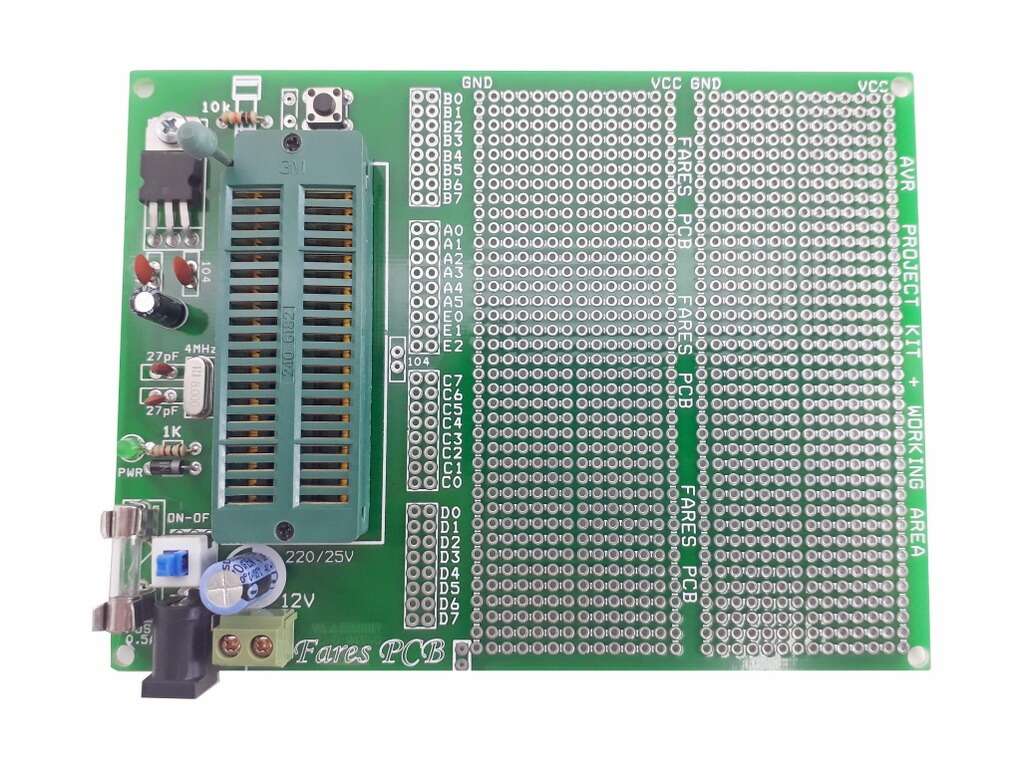

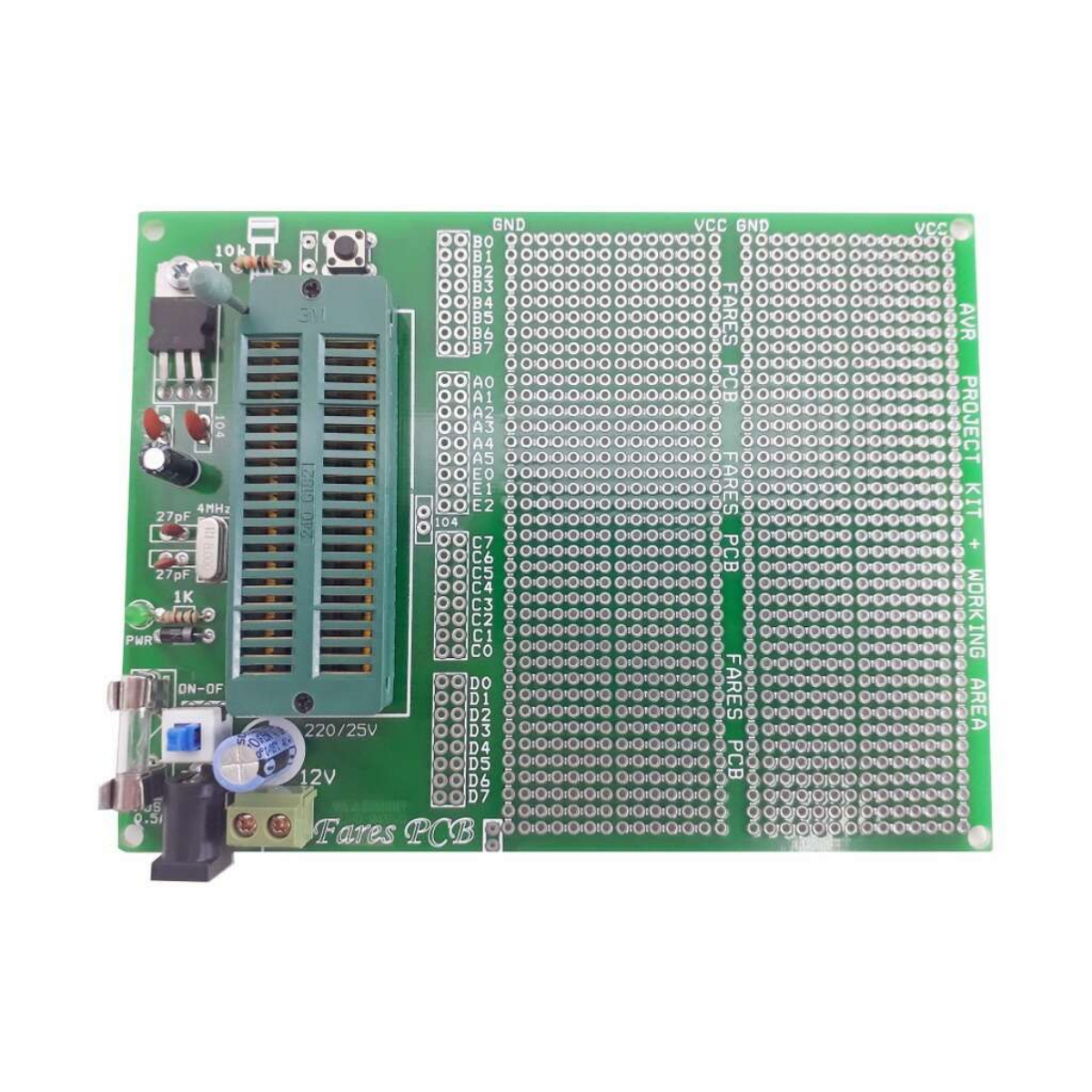

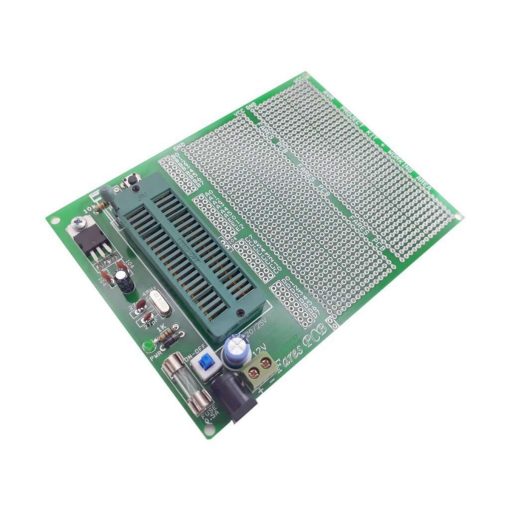

The AVR Project Kit + Working Area is an all-in-one development and prototyping platform designed specifically for students, electronics hobbyists, and embedded systems developers. Featuring a heavy-duty 40-pin ZIF (Zero Insertion Force) socket, this board allows you to program, test, and debug 40-pin DIP AVR microcontrollers without worrying about damaging chip pins.
Features
- 40-Pin ZIF Socket
- Integrated Working Area
- Robust Power Management Unit
- Includes a 0.5A glass cartridge fuse for overcurrent protection.
- Onboard ON-OFF slide switch and a PWR LED indicator.
- Dual Power Input Options
- Essential Onboard Peripherals
- Easy I/O Access
Specifications
| Parameter | Specification |
| Product Name | AVR Project Kit + Working Area |
| Supported Microcontrollers | 40-pin DIP AVR Microcontrollers (e.g., ATmega32, ATmega16, ATmega8535) |
| Socket Type | 40-Pin Zero Insertion Force (ZIF) Socket |
| Input Voltage | 12V DC |
| Regulated Output Voltage | 5V DC |
| Onboard Protection | 0.5A Fuse |
| Default Crystal Frequency | 4 MHz |
| Power Inputs | DC Barrel Jack & 2-Pin Screw Terminal Block |
Applications
- Academic & University Labs
- Rapid Prototyping
- DIY Electronic Projects
- Firmware Testing & Debugging
Package Content
- 1 x Avr project kit + working area
