D1 Mini Node Mcu Lua Wifi ESP8266 Wemos Development Board
The D1 Mini Node Mcu Lua Wifi ESP8266 Wemos Development Board is a compact and powerful development board based on the ESP-8266EX microcontroller, featuring integrated WiFi capabilities (802.11 b/g/n). Designed for ease of use in Internet of Things (IoT) projects, it offers compatibility with popular programming platforms such as Arduino, NodeMCU, and MicroPython.
Features :
- WiFi Connectivity: Built-in ESP8266EX module supporting 802.11 b/g/n wireless communication.
- Digital I/O Pins: 11 pins with support for interrupt, PWM, I2C, and one-wire protocols (except D0).
- Analog Input: 1 pin (A0) with a 0-3.3V range and 10-bit ADC resolution for sensor integration.
- Micro USB Port: Modern interface for power and programming.
- Flash Memory: 4MB for storing firmware, sketches, and data.
Specifications :
| Specification | Details |
|---|---|
| Microcontroller | ESP-8266EX |
| Operating Voltage | 3.3V Max (5V power from Micro USB connector is internally converted to 3.3V) |
| Digital I/O Pins | 11, all pins have interrupt/PWM/I2C/one-wire support except D0 |
| Analog Input | 1 (3.2V max input) |
| Connector | Micro USB |
| Clock Speed | 80MHz/160MHz |
| Flash | 4M bytes |

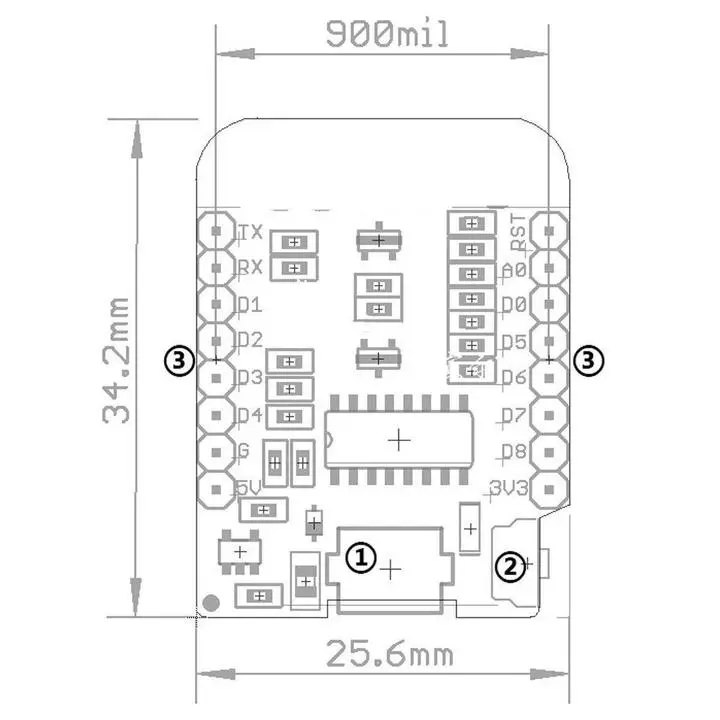

| Dimensions | 34.2mm x 25.6mm |
| Compatible with | Arduino, NodeMCU, MicroPython |
Pinout:
Applications :
- Internet of Things (IoT): Build connected devices for smart homes or remote monitoring.
- Home Automation: Control lights, appliances, or security systems wirelessly.
- Wireless Sensor Networks: Create networks for environmental monitoring or data collection.
- Robotics and Automation: Integrate into robotic projects for wireless control.
- Prototyping: Develop and test concepts for connected electronics projects.
Package Includes :
- 1 x D1 Mini Node Mcu Lua Wifi ESP8266 Wemos Development Board
- 2 x Long female pin
- 2 x Short female pin
- 2 x Normal male pin
