Features:
- The LiDAR LD06 has adopted TOF (time of flight) ranging technology and can measure distance according to the laser pulse time of flight within a detection distance of 12 metres.
- The LD06 uses first class algorithm logic to achieve 360 degrees environmental detection, autonomous map building and obstacle detection.
- With high-speed wireless data transmission and brushless motors, the LD06 can last for up to 10000 hours.
- The LD06 can achieve high-frequency and high-precision distance measurement and accurate map building indoors and outdoors.

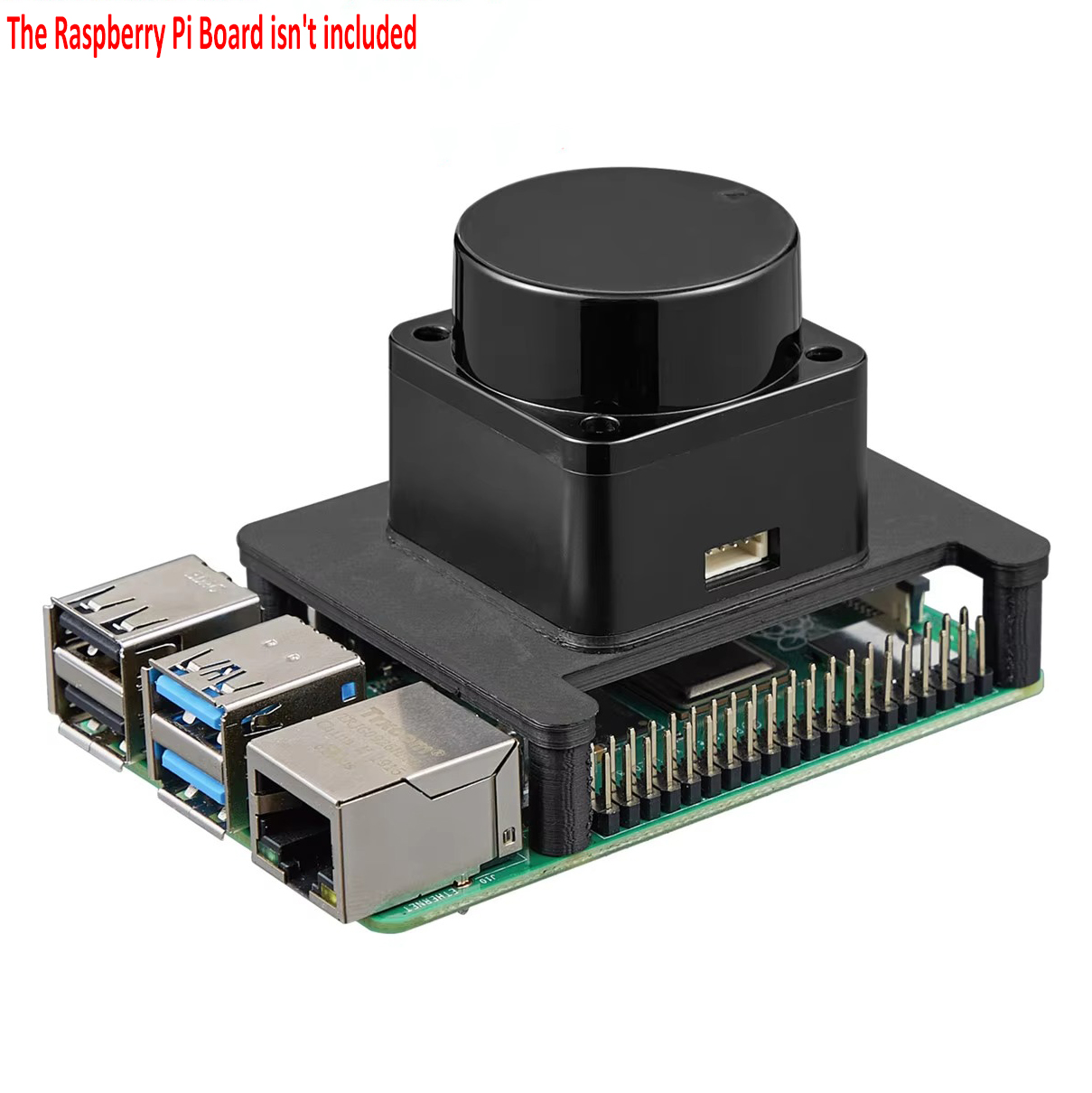

- The LD06 is fully compatible with Raspberry Pi3 A+/B+, Raspberry Pi3 B and Raspberry Pi 4B
Specifications:
- Distance measuring range: 0.02mm – 12m
- Scanning Frequency: 5-13 Hz
- Ranging accuracy: 30mm
- Ranging frequency: 4500Hz
- Scanning Angle: 360 degrees

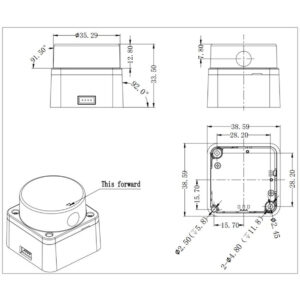

- Size: 38 x 38 x 33 mm
