OLED Display Shield for WEMOS D1 Mini 64×48 Pixel 0.66″

175.00 EGP

Purchase this product now and earn 18 Points!
Buy Now
Availability: In Stock
SKU:3496300074235
Description

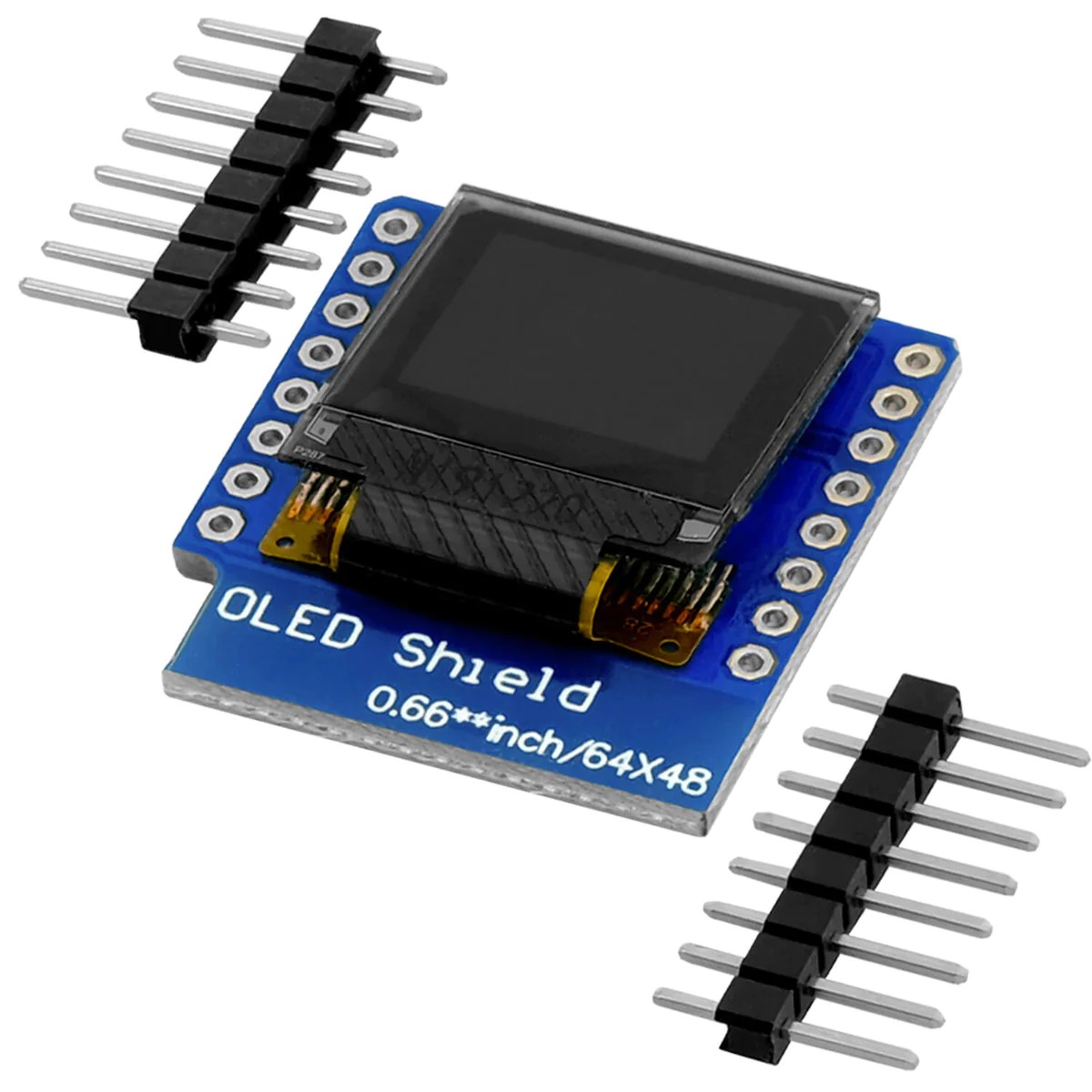

The WeMos Mini D1 OLED shield is a tiny 0.66″ 64 x 48 pixel OLED display. Using OLED display technology means that not only is the display very bright and clear with a high contrast ratio but has a much lower power consumption when compared to other display technologies such as backlit LCD. It is also very visible in both total darkness and bright light conditions. To interface to the module the display uses a serial I2C interface requiring just two data pins. On-board reset circuitry means there is no need for an additional reset pin. Although this module is designed to be used with the WeMos D1 mini and mini Pro boards it is an OLED display with the commonly used SSD1306 display controller and so can be used as a display module with other microcontroller boards such as the Arduino.

The module also includes 2 x 8 pin male-male headers, 2 x 8 pin male – female headers, and two 8-pin extended male-to-female headers (require soldering) that allow the module to be easily inserted into the WeMos D1 mini headers.

Specifications:
  • Screen Size: 64×48 pixels (0.66” Across)
  • Operating Voltage: 3.3V
  • Driver IC: SSD1306
  • Interface: IIC(I2C)
  • IIC Address: 0x3C or 0x3D
  • Dimensions: 28 x 26 x 4mm
Package Includes:

1 x 0.66 Inch OLED Display Shield

2 x (8 Pin Header Male)
