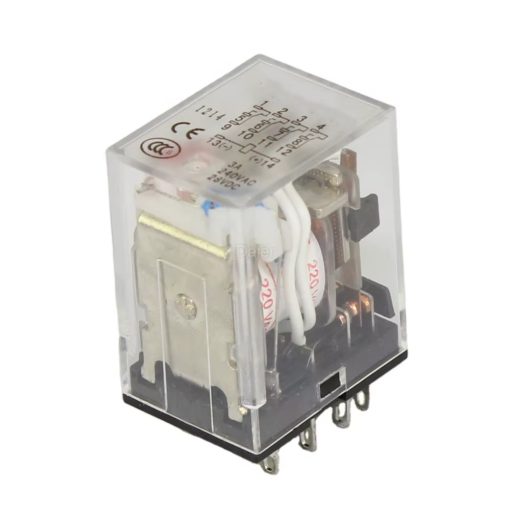

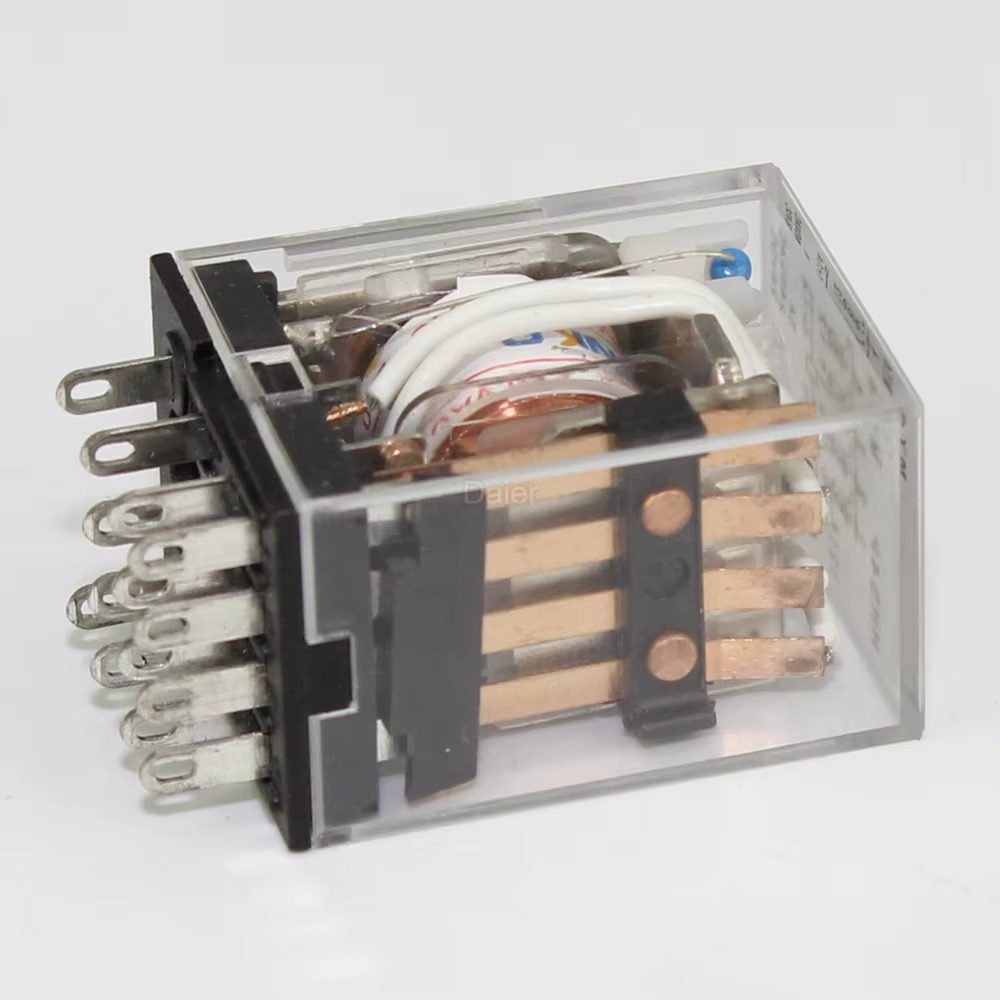

OMRON Power Relay HH54P 14 Pin 60VDC
Reliable 60VDC 4PDT relay with 14-pin design, ideal for industrial applications.
50.00 EGP
Buy Now
Availability:
In Stock
SKU:3496300105373
High-Performance 60VDC 4PDT Electromagnetic Power Relay HH54P with 14-Pin Configuration
Features:
- 4PDT Configuration: Enables control of four independent circuits, enhancing versatility.
- 14-Pin Design: Facilitates easy integration into complex control systems.
- 60VDC Coil Voltage: Suitable for systems requiring higher voltage operation.
- Socket Compatibility: Works seamlessly with compatible sockets, providing stable mounting.
HH54P Electromagnetic Relay Specifications:
| Specification |
Details |
| Coil Voltage |
60V DC |
| Contact Arrangement |
3PDT (Triple Pole Double Throw) |
| Number of Pins |
14 |
| Contact Rating |
3A at 250VAC; 3A at 30VDC (resistive) |
| Coil Power Consumption |
Approx. 0.9W (DC operation) |
| Operate Time |
Max. 20 ms (at rated voltage) |
| Release Time |
Max. 20 ms (at rated voltage) |
| Operating Temperature |
-10°C to +40°C |
| Mounting Type |
Plug-in (socket-mounted) |
| Dimensions (W x H x D) |
27.8 mm x 21 mm x 40.6 mm |
| Weight |
Approximately 30g |
Applications:
- Industrial Automation: Ideal for controlling machinery and equipment in industrial settings.
- Control Systems: Suitable for complex control circuits requiring multiple switching operations.
- Power Distribution: Efficient for managing power flow in various electrical systems.
