ISOSTAT ON/OFF Retro Commodore Power Switch 4 PIN

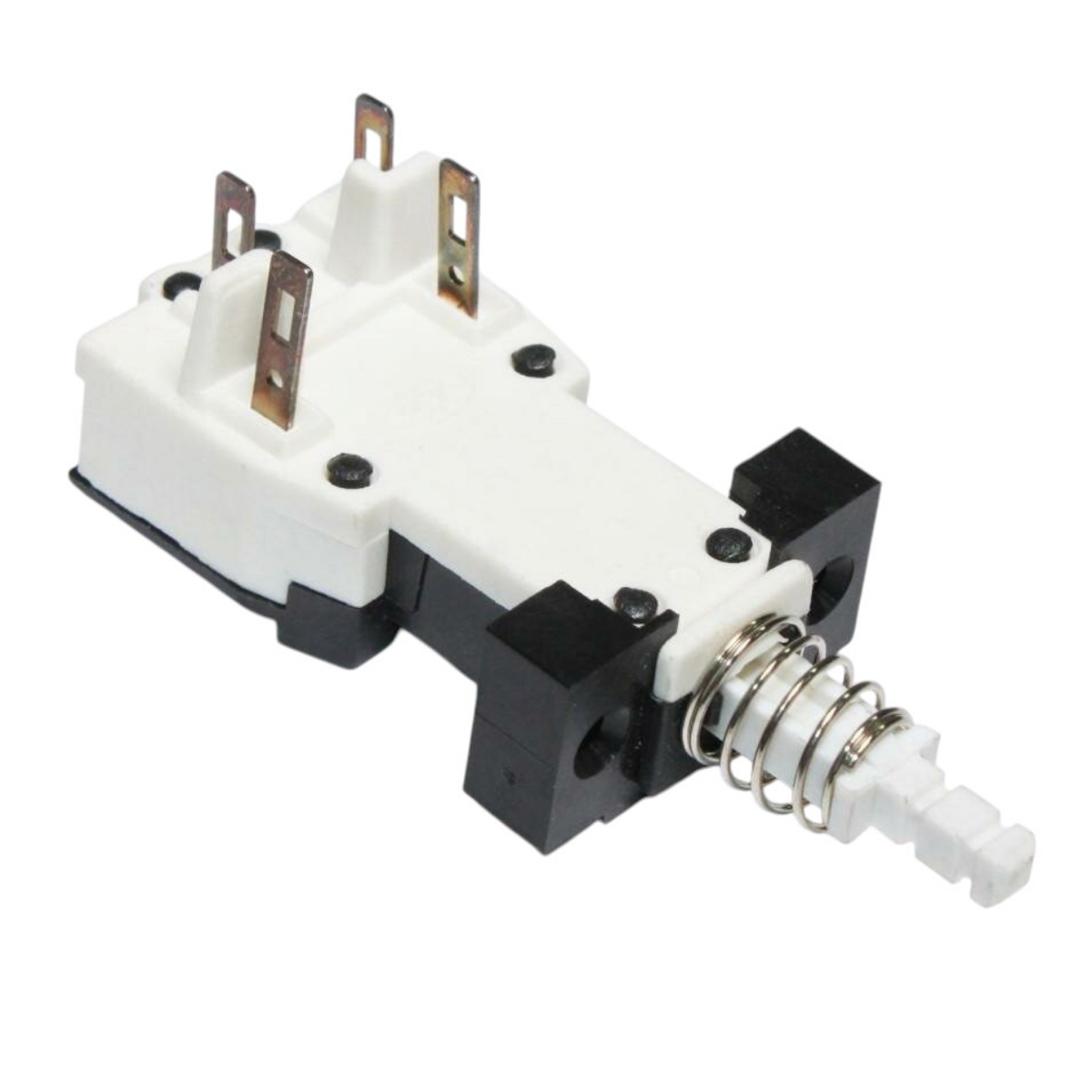

This high-quality, 4-pin ON/OFF power switch features a spring-loaded plunger mechanism designed for reliable tactile operation. Constructed with a durable white upper body and a contrasting black base housing, this component includes integrated quick-connect spade terminals for easy wiring and robust mounting ears for secure installation.
Features
- Dual-Color Construction
- Spring-Loaded Actuator
- Secure Mounting
- Easy Termination
Specifications
| Parameter | Dimension / Attribute |
|---|---|
| Main Body Length | 38 mm |
| Main Body Width | 21.5 mm |
| Main Body Height | 12 mm |
| Plunger Extension Length | 9.5 mm |
| Terminal Count | 4 Pins |
| Weight | 9 g |
Applications
- Power Control Switches
- Vintage Hardware Restorations
- Industrial & Mechanical Projects
Package Content
- 1 x ISOSTAT ON/OFF Retro Commodore Power Switch 4 PIN
