OP07CP Operational Amplifier 15V 1.5mA IC DIP-8
The OP07CP is a high-precision operational amplifier designed for applications requiring extremely low offset voltage, low drift, and high stability. It uses a bipolar input transistor design and monolithic fabrication to deliver accurate amplification of small analog signals. This IC is widely used in instrumentation, sensor amplification, and measurement circuits where signal accuracy is critical.
The OP07CP is known for its excellent noise performance and high common-mode rejection, making it suitable for precision analog systems. It typically requires minimal external components for offset adjustment and compensation, simplifying circuit design. With a wide input voltage range and stable performance over temperature variations, the OP07CP remains a reliable choice for professional and industrial analog electronics.
Features:
- Precision operational amplifier design.
- Very low input offset voltage.
- Low noise operation.
- High common-mode rejection ratio.
- High input impedance.
- Low input bias current.
- Excellent long-term stability.
- Wide input voltage range.
- Minimal external components required.
- Chopper-less low-drift architecture.
Specifications:
| Parameter | Value |
|---|---|
| IC Type | Precision Operational Amplifier |
| Package Type | DIP |
| Number of Pins | 8 |
| Supply Voltage Range | ±3V to ±18V |
| Unity Gain Bandwidth | ~0.6MHz |
| Slew Rate | 0.3V/µs |
| Input Offset Voltage | 60µV |
| Input Bias Current | ±2nA |
| Input Resistance | Up to 33MΩ |
| Operating Temperature | 0°C to 70°C |

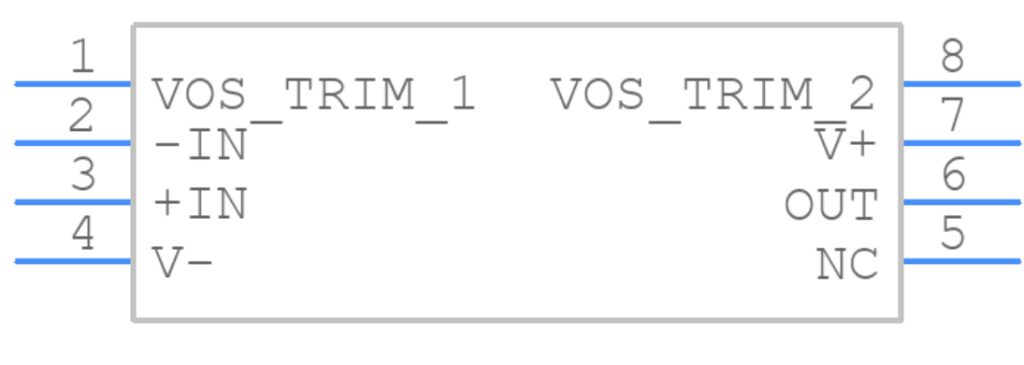

Pinout:
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | VOS- | Negative offset trim pin (for input offset voltage adjustment) |
| 2 | -IN | Inverting input |
| 3 | +IN | Non-inverting input |
| 4 | V- | Negative power supply |
| 5 | NC | No connection (internally not connected) |
| 6 | OUT | Output |
| 7 | V+ | Positive power supply |
| 8 | VOS- TRIM 2 | Negative offset trim pin 2 (second trim pin) |

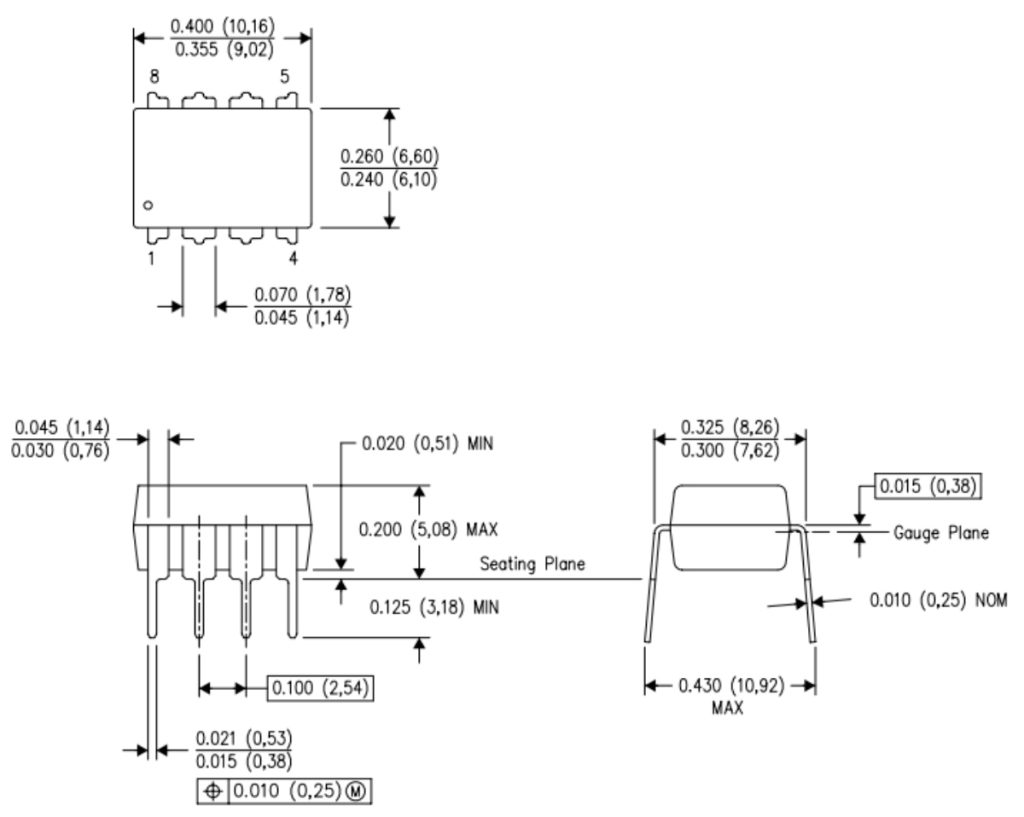

Footprint:
Applications:
- Precision instrumentation amplifiers.
- Sensor signal conditioning.
- Data acquisition systems.
- Analog measurement equipment.
- Industrial control systems.
- Medical instrumentation.
- Low-level signal amplification.
- Voltage follower and active filters.
Packages Included:
- 1x OP07CP Operational Amplifier 15V 1.5mA IC DIP-8.
