OSEPP LS-0006 Plastic Gear Analog servo (Medium)
OSEPP LS-0006 Plastic Gear Analog (Medium) is a compact analog servo motor with durable plastic gears, offering precise control for robotics and automation.
625.00 EGP
In stockSKU 899262000206
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
OSEPP LS-0006 Plastic Gear Analog servo (Medium)
The OSEPP LS-0006 Plastic Gear Analog (Medium) is a versatile and durable servo designed for use in various robotics, automation, and model-making applications. This medium-sized plastic gear analog servo is engineered for performance, offering a reliable solution for controlling mechanical movements in a wide range of projects. Its robust construction ensures long-lasting durability under moderate loads, making it ideal for both hobbyists and professionals in the field of robotics.
Features:
- 180-degree rotation for versatile motion control.
- Plastic gears ensure a balance of durability and lightweight design.
- Operates at a voltage range of 4.8-6.0V.
- Ideal for robotic and automation applications.
- Provides precise control and reliable performance.
- Suitable for use in both professional and hobbyist projects.
Specifications:
| Parameter | Value |
|---|---|
| Operating Voltage | 4.5-6VDC |
| Speed (No Load at 4.8V) | 0.14sec/60° |
| Speed (No Load at 6V) | 0.12sec/60° |
| Stall Torque (at 4.8V) | 1.0kg-cm |
| Stall Torque (at 6V) | 1.2kg-cm |
| Running Current (No Load at 4.8V) | 120mA |
| Running Current (No Load at 6V) | 140mA |
| Stall Current (at 4.8V) | 390mA |
| Stall Current (at 6V) | 460mA |
| Idle Current (at 4.8V) | 4mA |
| Idle Current (at 6V) | 5mA |
| Limit Angle | 180±10° |
| Operating Travel | 90°(1000-2000μs) |
| Maximum Travel | 165°(800-2200μs) |
| Neutral Position | 1500μs |
| Dead Band Width | 5μs |
| Pulse Width Range | 800-2200μs |
| Gear Reduction Ratio | 1/630 |
| Horn Gear Spline | 24T/3.92mm |
| Connector Wire Length | 150±5mm |
| Operating Temperature | -10to+50°C |
| Storage Temperature | -20to+60°C |
| Dimensions | 21.5×11.8×22.7mm |
Wire Configuration:
- Black/Brown: Ground (-).
- Red: Positive (+, VCC).
- Yellow/Orange: Signal (PWM input).
Applications:
- Robotics and robotic arms.
- RC vehicles and machines.
- Automated systems and models.
- DIY and hobby electronics projects.
- Automation and control systems in educational setups.
Package Include:

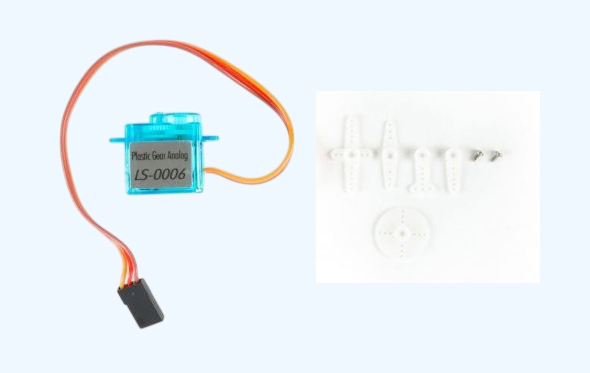

- 1x OSEPP LS-0006 Plastic Gear Analog (Medium)
- 1x Set of servo horns.
- 2x screws.
Document:
| Weight | 30 g |
|---|---|
| Dimensions | 180 × 110 × 20 mm |
