OSEPP LS-955SR High Torque Metal Gear Servo-180°
The OSEPP LS-955SR High Torque Metal Gear Servo-180° is a high-performance servo designed to deliver reliable and precise movement in a variety of mechanical systems. Featuring a durable metal gear train, this servo ensures longevity and consistent operation, even in demanding applications. With a 180° range of motion, the LS-955SR is ideal for robotics, RC vehicles, and automated projects requiring high torque output.
This servo is engineered with advanced features to support high-torque applications, making it a preferred choice for robotics enthusiasts and professionals who require strength and precision. Whether used in robotic arms, steering systems, or other applications, the LS-955SR provides the power and control necessary for complex movements. Its metal gears enhance its durability, ensuring it can withstand continuous use without performance degradation.
Features:
- 180° range of motion for versatile applications.
- High torque output for demanding robotics and automation tasks.
- Metal gear train ensures long-term durability and strength.
- Standard 3-wire interface for easy integration with various systems.
- Low power consumption for energy-efficient operation.
- Operates effectively across a wide range of input voltages.
Specifications:
| Parameter | Value |
|---|---|
| Voltage Range | 4.8-7.2V |
| Stall Torque (4.8V) | 9.4kg·cm |
| Stall Torque (6.0V) | 11kg·cm |
| No-load Speed (4.8V) | 0.17sec/60° |
| No-load Speed (6.0V) | 0.14sec/60° |
| Max PWM Signal Range | 500-2500μsec |
| Pulse Amplitude | 3-5V |
| Operating Temperature | -10°C to +50°C |
| Current Drain – Idle (6.0V) | 20mA |
| Current Drain – No-load (6.0V) | 200mA |
| Direction | Anticlockwise with increasing PWM signal |
| Deadband Width | 5μsec |
| Motor Type | Cored |
| Connector Type | JR |
| Wire Length | 300mm |
| Dimensions | 40.8×20.1×38mm |
Applications:
- Robotics projects requiring precise movement.
- RC vehicles, such as cars, boats, and aircraft.
- Automated systems needing high-torque motors.
- Steering systems in robotic arms and other mechanisms.

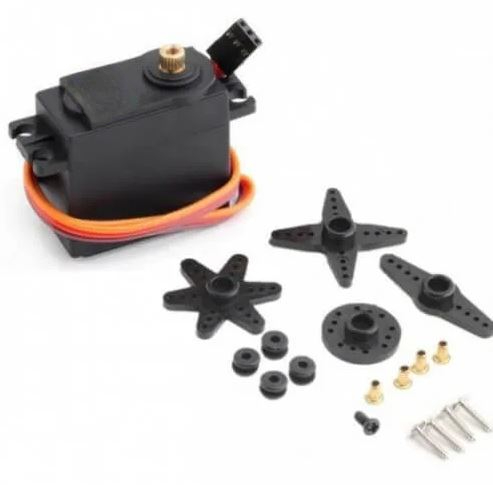

Package Include:
- 1x OSEPP LS-955SR High Torque Metal Gear Servo-180°.
- 1x Servo horn set.
- 1x Mounting hardware set.
