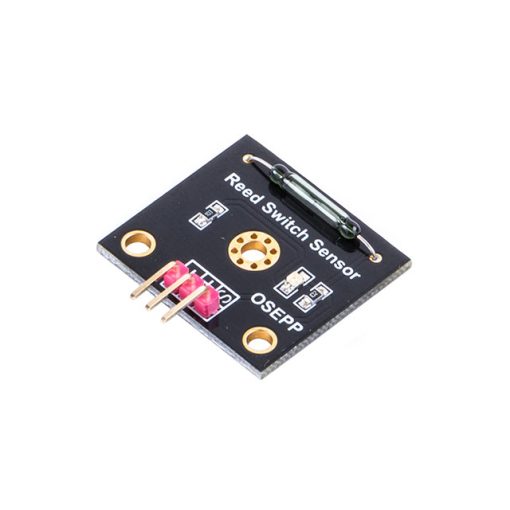

OSEPP REED-01 Reed Switch Module
The OSEPP REED-01 Reed Switch Module is a versatile sensor designed to detect the presence of a magnetic field. It features a reed switch, a small electrical component that closes or opens its circuit when exposed to a magnetic field. This module is ideal for use in various applications, such as door/window security systems, position sensing in robotics, and motion detection.
The REED-01 module provides a straightforward solution for integrating magnetic field detection into your electronics projects. When a magnet is brought close to the reed switch, the circuit is triggered, providing a digital signal output.
Features:
- Simple and reliable reed switch sensor for magnetic field detection.
- Triggered by the presence of a magnetic field, providing a digital on/off output.
- Ideal for security, automation, and position sensing applications.
- Compatible with Arduino and other microcontroller platforms.
- Operates on a 5VDC power supply.
- Compact and easy-to-use design, suitable for both beginners and advanced users.
Specifications:
| Parameter | Value |
|---|---|
| Operating Voltage | 4.5-5.25VDC |
| Current Rating | 500mA |
| Power Rating | 10W |
| Type | Digital input device |
Pin Configuration:
- G: Ground connection.
- V: Power supply input (4.5-5.25VDC).
- S: Digital signal output (connect to microcontroller digital pin).
Applications:
- Magnetic door or window open/close detection in security systems.
- Proximity sensing in automated machinery.
- Limit switches for robotic arms or CNC machines.
- Speed measurement in tachometers using rotating magnets.
- Non-contact counters for conveyor belts.
- Educational demonstrations of magnetic fields.
Package Include:

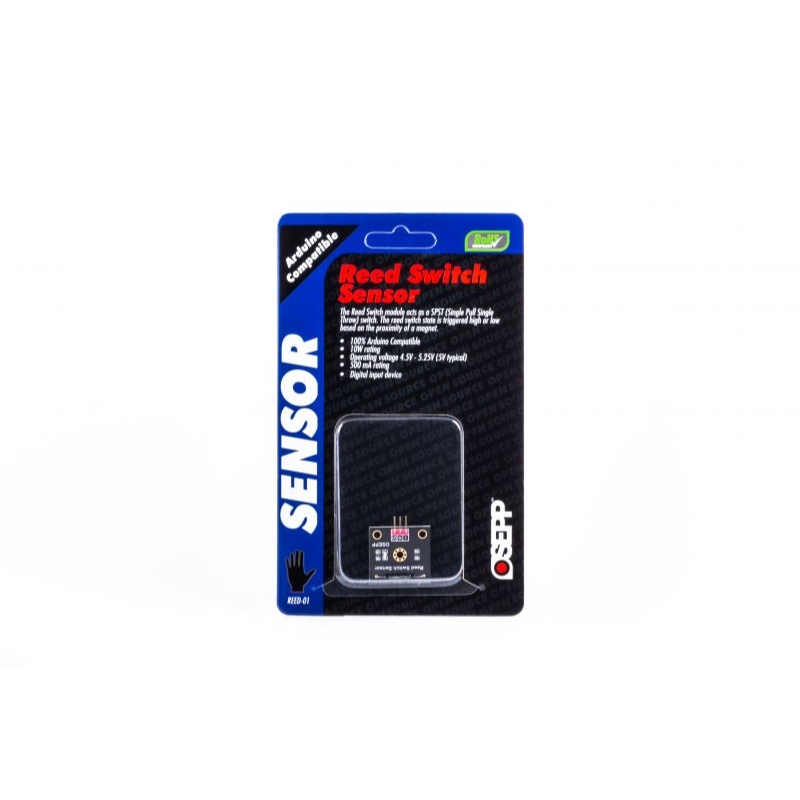

1x OSEPP REED-01 Reed Switch Sensor Module.
