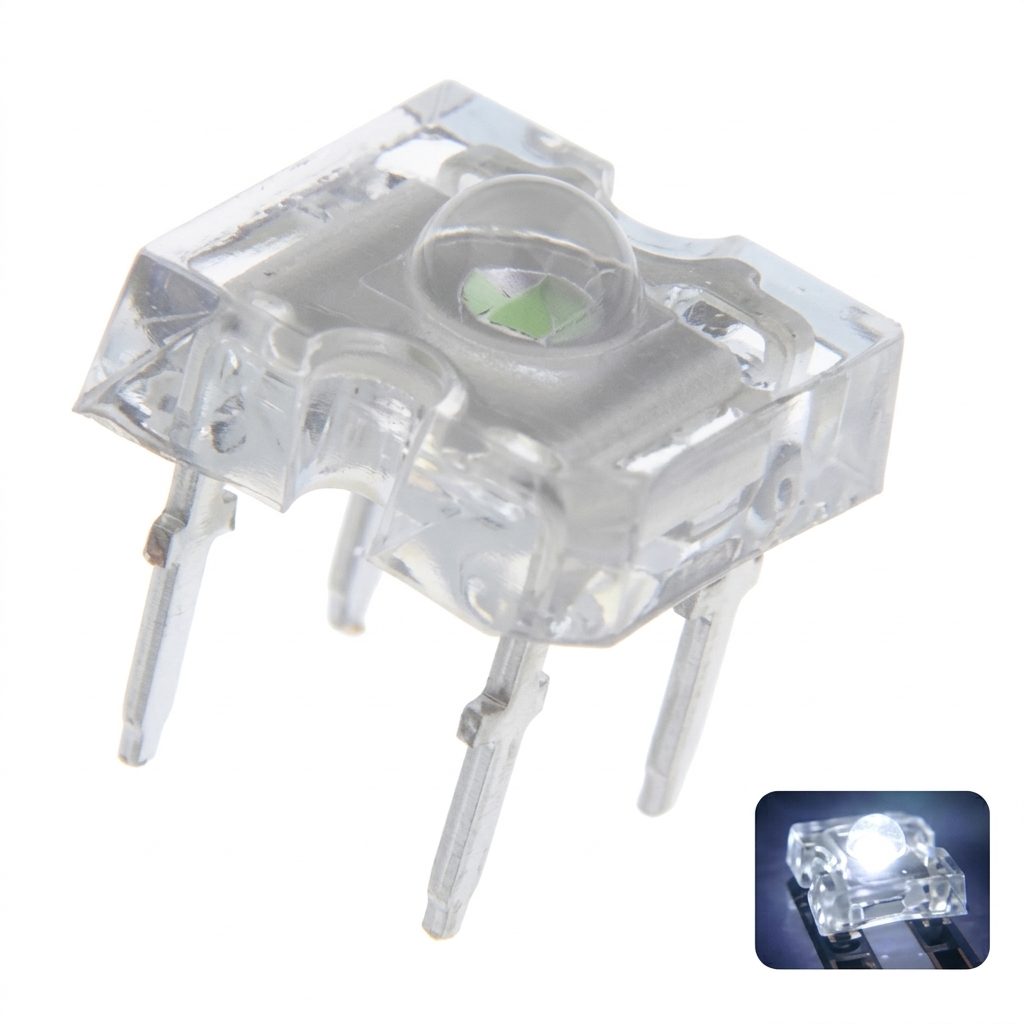

OSW5DLZ2C1P Square White LED 4Pin 3V 8800mcd

OSW5DLZ2C1P Square White LED 4Pin 3V 8800mcd

This OSW5DLZ2C1P 4-pin square white LED delivers an exceptional luminous intensity of 8800 mcd while operating at a standard 3V forward voltage. Featuring a distinct square package with four mechanical pins, it offers enhanced structural stability and heat dissipation compared to traditional 2-pin dip LEDs. The high-brightness output makes it an ideal choice for direct lighting, backlighting, and visible signaling applications where high clarity and visibility are required.

Designed for easy integration into custom electronic projects and industrial circuit designs, the 4-pin configuration provides reliable electrical contact and mechanical mounting on printed circuit boards (PCBs). Its energy-efficient operation ensures stable light output with minimal power consumption, making it versatile for both battery-powered devices and stationary electronic systems.

Features:

• High luminous intensity output (8800 mcd) for maximum brightness and visibility.
• 4-pin through-hole package for improved mechanical stability and thermal dissipation.
• Standard 3V forward voltage operation.
• Solid-state reliability with a long operational lifespan.
• Low power consumption with minimal heat output.
• Uniform light distribution across the square emitting surface.

Specifications:

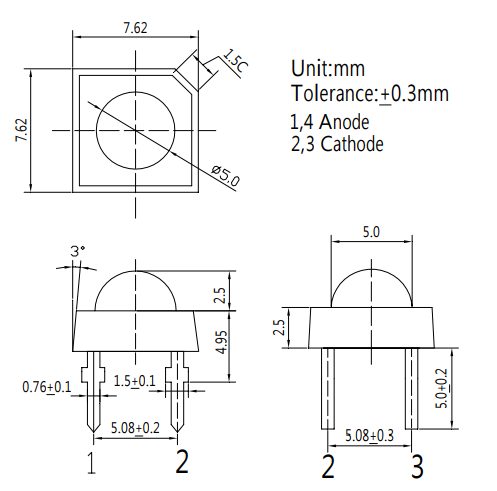

Pinout:

Applications:

• Custom PCB backlighting and status indicator panels.
• DIY electronic kits and hobbyist lighting projects.
• Automotive interior accent lighting and dashboard displays.
• Emergency lighting systems and small illumination modules.
• Commercial signage, channel lettering, and decorative displays.

Packages Included:

• 1 × OSW5DLZ2C1P Square White LED 4-Pin 3V 8800mcd.

Documents:

• OSW5DLZ2C1P Datasheet.
