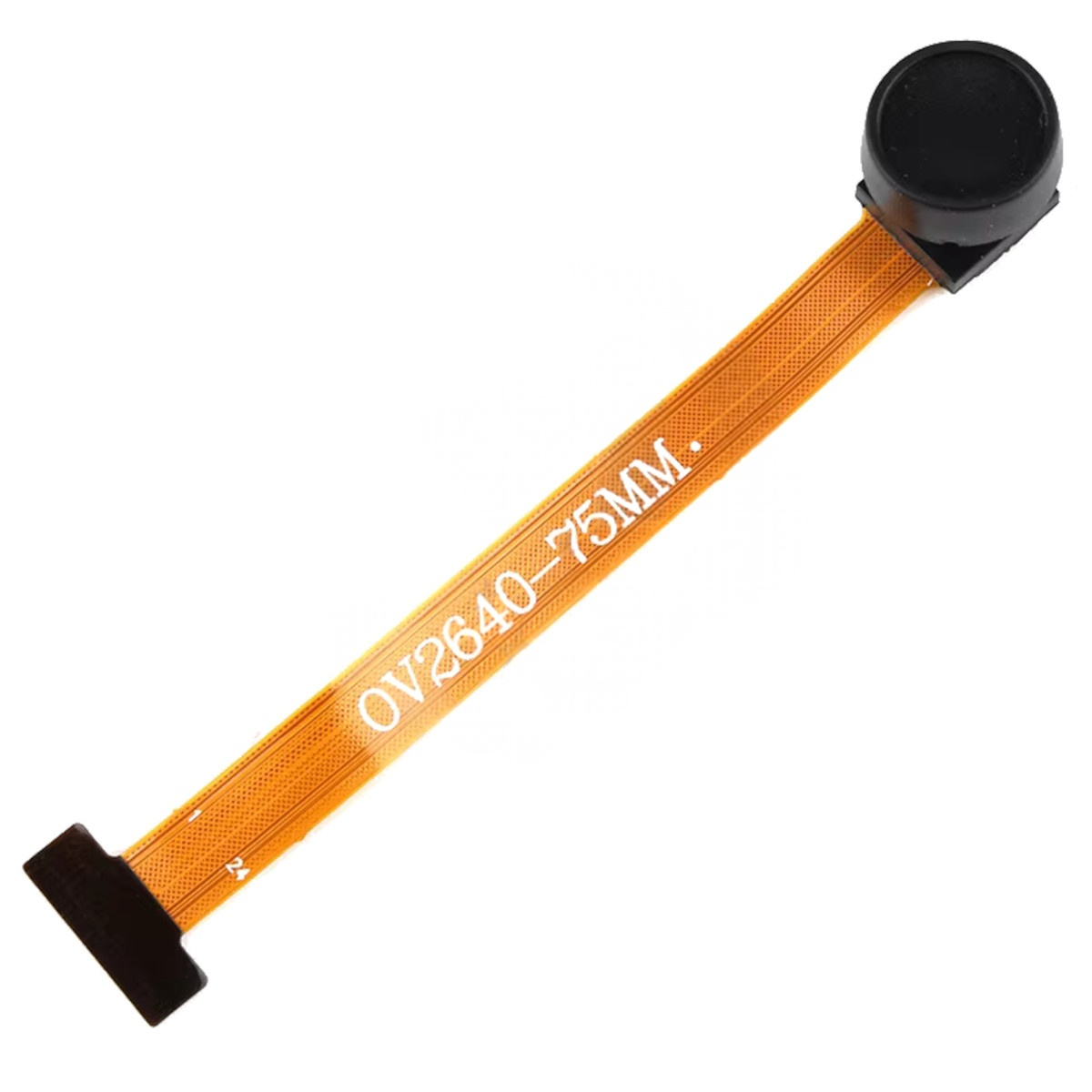

OV2640 Wide Angle Lens 2MP Camera Module 160 Degree 24pin 75mm

OV2640 Wide Angle Lens 2MP Camera Module 160 Degree 24pin 75mm

The OV2640 Wide Angle Lens 2MP Camera Module 160 Degree 24pin 75mm is a sophisticated imaging component engineered for embedded systems and Internet of Things (IoT) applications. Powered by the image sensor from OmniVision, a pioneer in digital imaging technology, this module delivers exceptional performance in a compact package. Renowned for its high image quality and low power consumption, the Camera sensor is an excellent choice for projects requiring efficient and reliable visual capabilities.

Features:

• High sensitivity suitable for low illumination applications.
• Low voltage suitable for embedded applications.
• Standard SCCB interface, compatible with I2C interface.
• RawRGB, RGB (GRB4:2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output formats.
• Support UXGA, SXGA, VGA, QVGA, QQVGA, CIF, QCIF and various sizes up to 40×30.
• Support VarioPixel sub-sampling method.
• ISP has the function of noise elimination and dead pixel compensation.
• Support image zoom.
• Saturation automatic adjustment.
• Automatic adjustment of edge enhancement.
• Automatic adjustment of noise reduction.

Specifications:

Pin Configuration:

Applications:

• IoT camera projects.
• Surveillance systems.
• Robotics vision systems.
• DIY electronics projects.
• Image processing applications.
• Panoramic photography.

Package Include:

1x OV2640 Wide Angle Lens 2MP Camera Module 160 Degree 24pin 75mm

Datasheet:

OV2640
