PC900V Optocoupler Dip-6 IC
The PC900V Optocoupler DIP-6 IC is a highly reliable component designed by Sharp for signal isolation between electrical circuits while maintaining data integrity. With an isolation voltage of 5.0kV, the PC900V is an essential component in many industrial, office automation, and consumer electronics applications, providing critical protection against electrical noise, voltage surges, and ground loops.
Features:
- High isolation voltage of 5.0 kV (rms).
- TTL and LSTTL compatible output.
- Wide operating voltage range from 3V to 15V.
- RoHS and lead-free compliant.
- 6-pin DIP package for versatile mounting options.
Specifications:
| Parameter | Symbol | Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Forward voltage | VF | IF = 4 mA | – | 1.1 | 1.4 | V |
| Forward voltage | VF | IF = 0.3 mA | 0.7 | 1.0 | – | V |
| Reverse current | IR | Ta = 25°C, VR = 3 V | – | – | 10 | µA |
| Terminal capacitance | CT | Ta = 25°C, V = 0, f = 1 kHz | – | 30 | 250 | pF |
| Operating supply voltage | VCC | – | 3 | – | 15 | V |
| Low level output voltage | VOL | IOL = 16 mA, VCC = 5 V, IF = 4 mA | – | 0.2 | 0.4 | V |
| High level output current | IOH | VO = VC = 15 V, IF = 0 | – | – | 100 | µA |
| Low level supply current | ICCL | VCC = 5 V, IF = 4 mA | – | 2.5 | 5.0 | mA |
| High level supply current | ICCH | VCC = 5 V, IF = 0 | – | 1.0 | 5.0 | mA |
| High→Low input threshold current | IFHL | Ta = 25°C, VCC = 5 V, RI = 280 Ω | – | 1.1 | 2.0 | mA |
| Low→High input threshold current | IFLH | Ta = 25°C, VCC = 5 V, RI = 280 Ω | 0.4 | 0.8 | – | mA |
| Hysteresis | IFHL/IFLH | VCC = 5 V, RI = 280 Ω | 0.3 | – | – | – |
| Isolation voltage | Viso(rms) | – | – | 5.0 | – | kV |
| High→Low propagation delay time | tPHL | Ta = 25°C, VCC = 5 V, IF = 4 mA | – | 1 | 3 | µs |
| Low→High propagation delay time | tPLH | Ta = 25°C, VCC = 5 V, IF = 4 mA | – | 2 | 6 | µs |
| Rise time | tr | RL = 280 Ω | – | 0.1 | 0.5 | µs |
| Fall time | tf | RL = 280 Ω | – | 0.05 | 0.5 | µs |
Absolute maximum ratings:
| Parameter | Symbol | Rating | Unit |
|---|---|---|---|
| Forward current | IF | 50 | mA |
| Peak forward current | IFM | 1 | A |
| Reverse voltage | VR | 6 | V |
| Power dissipation | P | 70 | mW |
| Supply voltage | VCC | 16 | V |
| High level output voltage | VOH | 16 | V |
| Low level output current | IOL | 50 | mA |
| Power dissipation | PO | 150 | mW |
| Total power dissipation | Ptot | 170 | mW |
| Operating temperature | Topt | -25 to +85 | °C |
| Storage temperature | Tstg | -40 to +125 | °C |
| Isolation voltage | Viso(rms) | 5.0 | kV |
| Soldering temperature | Tsol | 260 | °C |

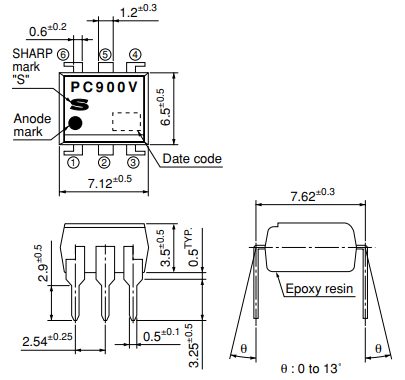

Pinout:
Applications:
- Programmable controllers.
- PC peripherals and interfaces.
- Telecommunication equipment.
- Electronic musical instruments.
- Audio-visual equipment.
- Industrial control systems.
- Test and measurement equipment.
Package Include:
- 1x PC900V Optocoupler Dip-6 IC.
