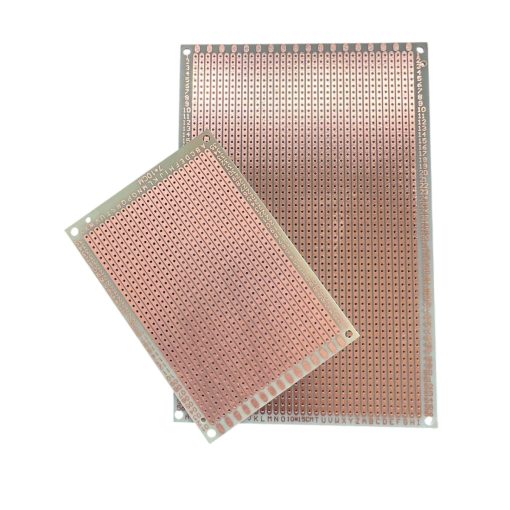

PCB Prototype Board – Vero Board FR-4 Line
This FR-4 line vero board (stripboard) features continuous copper tracks running in straight lines, making it ideal for fast and structured prototyping of through-hole electronic circuits. The line layout simplifies power and signal routing and reduces the amount of point-to-point wiring needed.
Manufactured from FR-4 fiberglass material, the board offers excellent mechanical strength, electrical insulation, and heat resistance compared to FR-2 boards. It is suitable for repeated soldering and more demanding projects, supporting standard 2.54 mm pitch components commonly used in Arduino, logic, and analog circuits.
Features:
- Continuous copper line layout.
- Strong and durable FR-4 fiberglass material.
- Better heat resistance for soldering.
- Clean and organized circuit routing.
- Suitable for through-hole components.
- Ideal for long-term prototypes.
Specifications:
| Parameter | Value |
|---|---|
| Board Type | Vero / Stripboard |
| Material | FR-4 (Fiberglass) |
| Copper Layout | Continuous copper lines |
| Hole Pitch | 2.54 mm (0.1 inch) |
| Layers | Single layer |
| Mounting Type | Through-hole |
Applications:
- Rapid electronic circuit prototyping.
- Power distribution and signal routing.
- Arduino and development board projects.
- Educational and professional electronics labs.
- DIY and small production builds.
Packages:
- PCB Prototype Board – Vero Board FR-4 Line.
