PCI Motherboard Fault Test Card 2-Bit (Red Board)

PCI Motherboard Fault Test Card 2-Bit (Red Board)

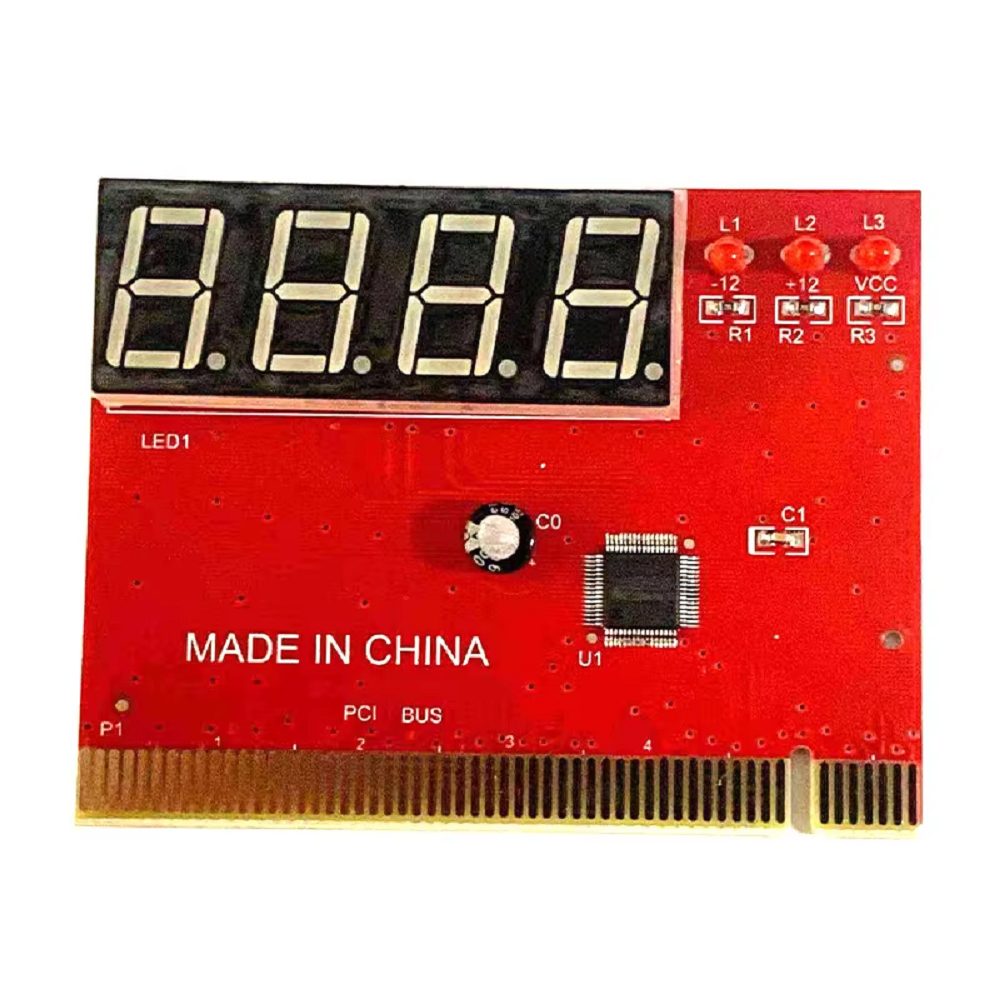

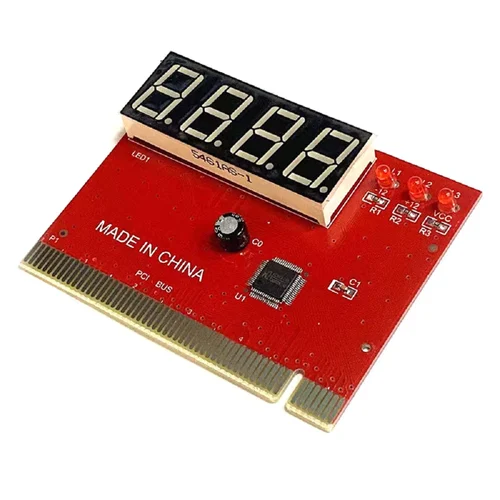

The PCI Motherboard Fault Test Card 2-Bit (Red Board) is a diagnostic tool designed to help technicians and computer enthusiasts quickly identify hardware problems during a computer’s Power-On Self-Test (POST). By inserting the card into a standard PCI slot, it displays POST codes generated by the motherboard BIOS, making it easier to locate faulty components that prevent the system from booting properly.

The card features a bright 2-digit hexadecimal LED display for clear POST code visualization, along with multiple diagnostic LEDs that indicate the status of key motherboard signals such as power rails, reset, and clock. It supports motherboards equipped with standard PCI expansion slots and is widely used for repairing desktop computers, testing motherboards, and diagnosing CPU, RAM, BIOS, or power-related issues.

Features:

• Standard PCI interface.
• Two-digit hexadecimal POST code display.
• Bright LED display for easy reading.
• Multiple onboard diagnostic status LEDs.
• Helps identify motherboard boot failures.
• Easy plug-and-play operation.
• Suitable for desktop motherboard troubleshooting.
• Compact and lightweight PCB design.
• Supports BIOS POST diagnostics.
• Ideal for repair technicians and computer maintenance.

Specifications:

Applications:

• Motherboard fault diagnosis.
• BIOS POST code analysis.
• Desktop computer repair.
• Hardware troubleshooting.
• CPU failure detection.
• Memory (RAM) diagnostics.
• Power supply verification.
• Computer maintenance workshops.
• Electronics repair laboratories.

Package Includes:

• 1x PCI Motherboard Fault Test Card 2-Bit (Red Board).

Documents:

• PC Analyzer’s User Guide.
