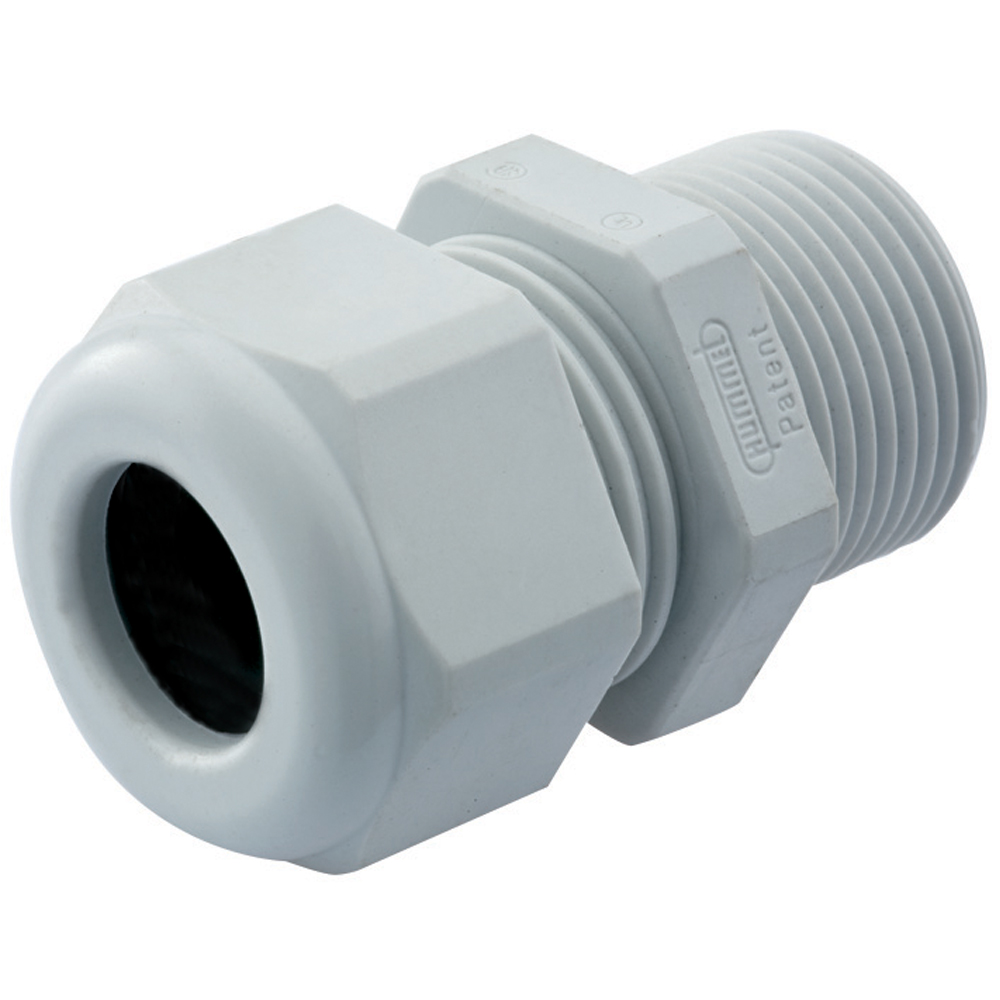

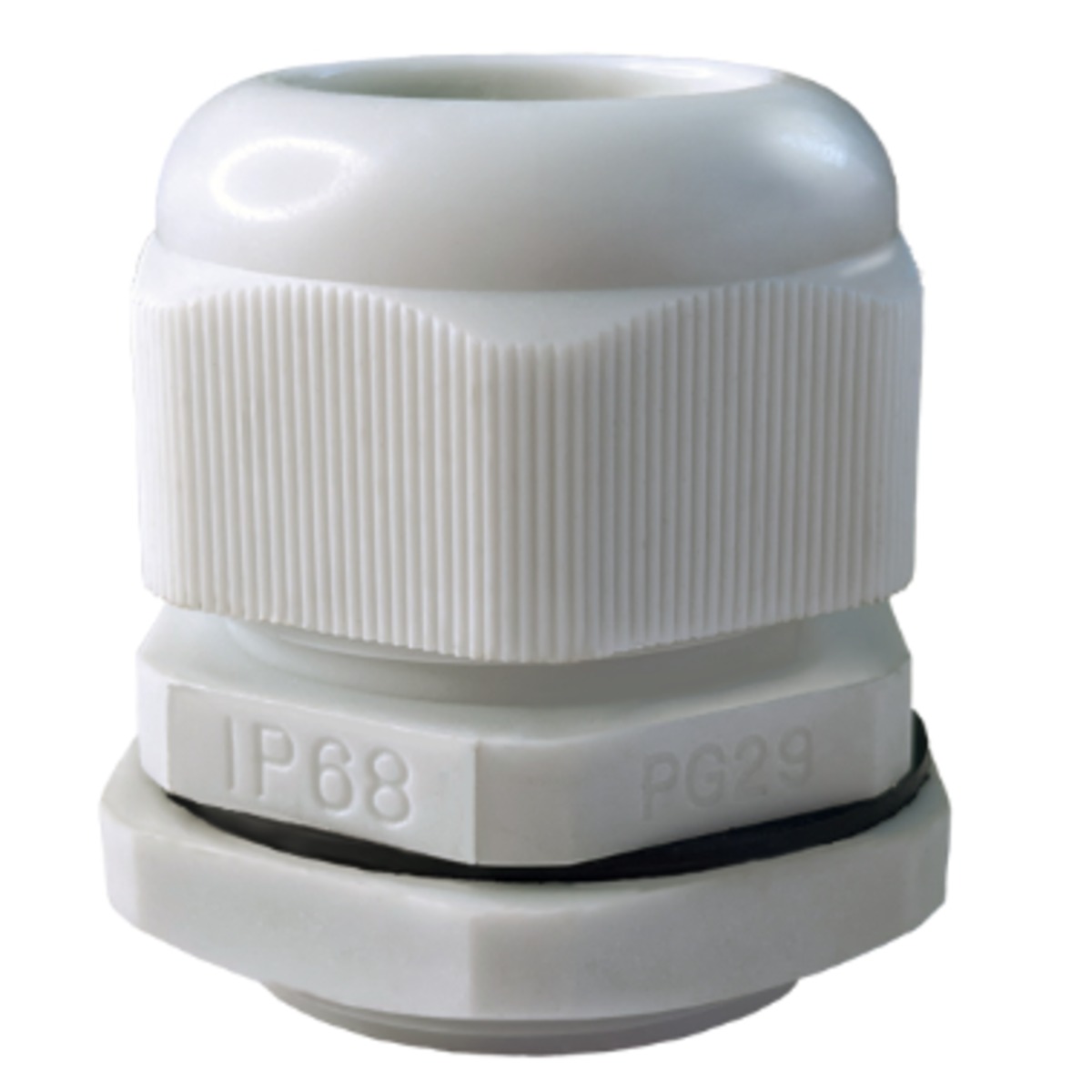

PG-29 Nylon Waterproof Cable Gland
The PG-29 Waterproof Cable Gland is a nylon cable entry fitting designed to provide secure cable retention while protecting the cable entry point against water, dust, and environmental contaminants. It uses a PG threaded body with a sealing ring and locking nut, allowing the cable to be firmly held in place while maintaining a weather-resistant seal. The typical PG-29 version accommodates cables with an outer diameter of approximately 18–25 mm.

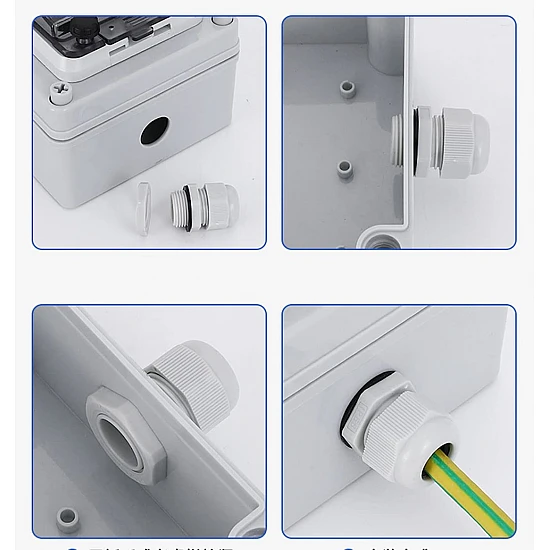

This cable gland is suitable for electrical panels, junction boxes, automation equipment, industrial control cabinets, outdoor enclosures, and other applications where cables need to pass safely through an enclosure wall. Common nylon PG-29 designs provide IP68 protection within the specified cable clamping range, along with good resistance to dust, water, oils, and common environmental contaminants.
Features:
- Waterproof and dust-resistant cable entry.
- Secure cable strain relief.
- PG threaded mounting design.
- Sealing ring provides a tight cable seal.
- Suitable for large-diameter cables.
- Durable nylon construction.
- Easy installation with a locking nut.
- Suitable for indoor and outdoor applications.
- Helps protect enclosure interiors from environmental contamination.
- Available in black for common industrial installations.
Specifications:
| Color | gray |
| Cable diameter range, mm | 18-25 |
| Body material | polyamide |
| Sealing material | oil-resistant rubber |
| Protection class | ІР68 |
| Altitude above sea level, m | 2000 |
| Operating temperature range, °C | -40…+60 |
| Storage temperature range, °C | -50…+70 |
Applications:
- Electrical junction boxes.
- Control panels and cabinets.
- Industrial automation equipment.
- Outdoor electrical enclosures.
- Power distribution boxes.
- Motor and machinery wiring.
- LED and lighting enclosures.
- Communication equipment.
- Industrial control systems.
- Cable management and strain relief.
Package Includes:
- PG-29 Nylon Waterproof Cable Gland.
