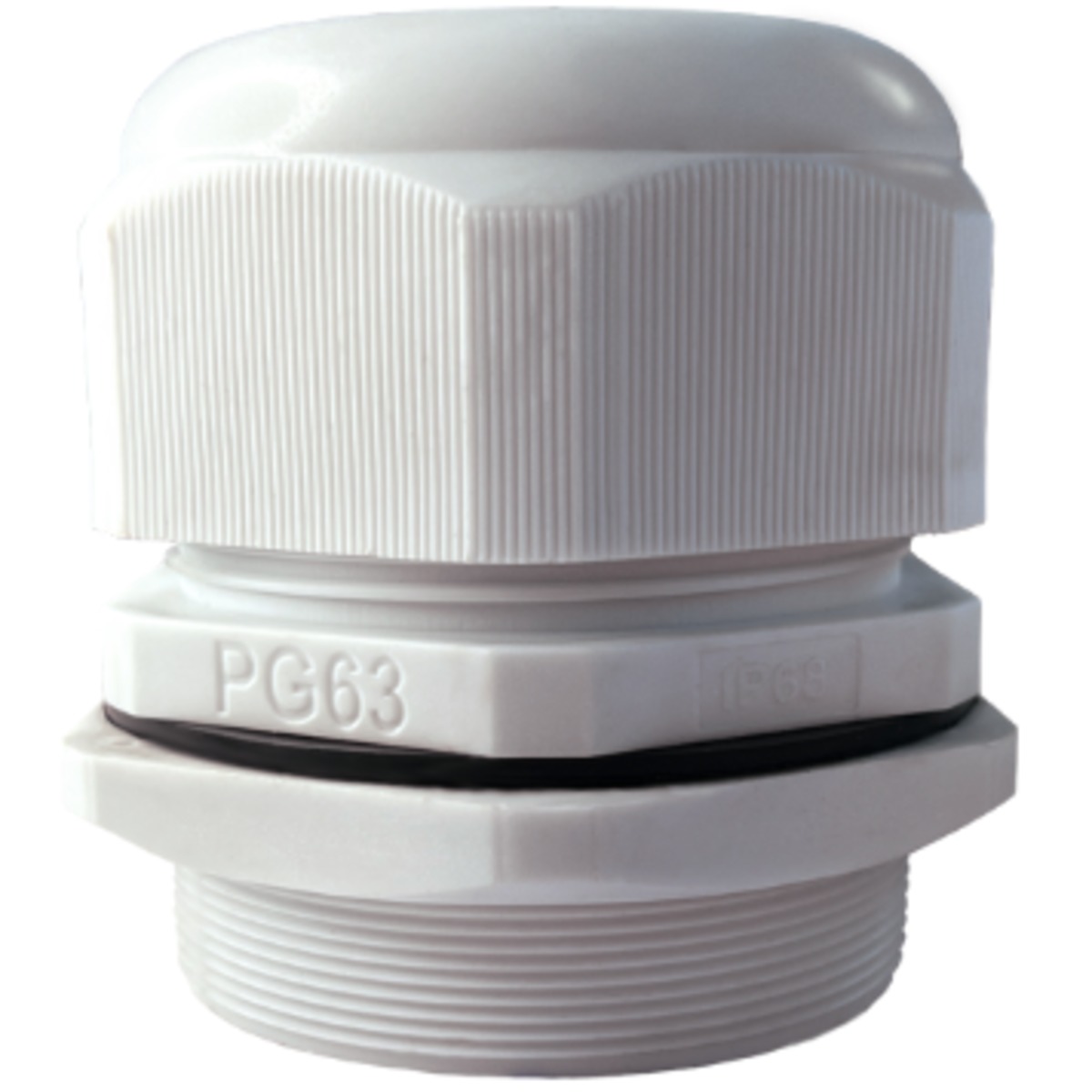

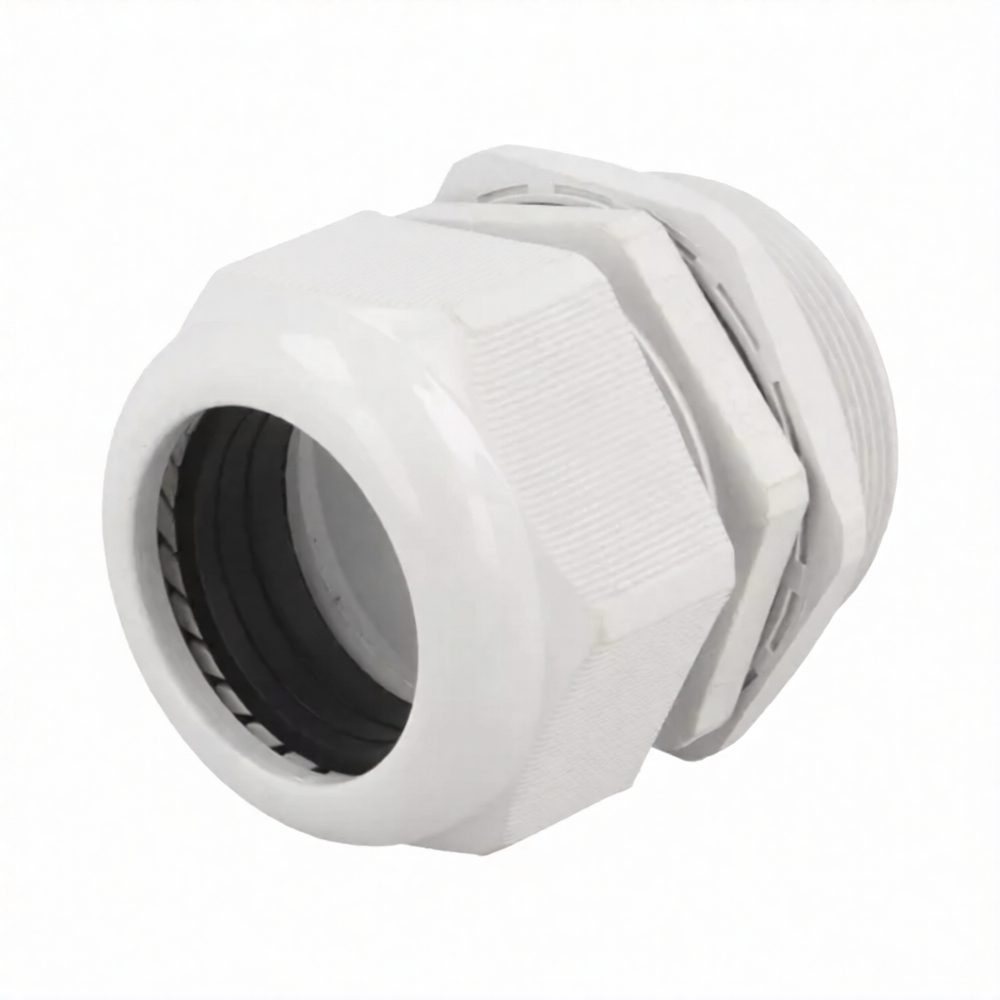

PG-63 Nylon Waterproof Cable Gland
The PG-63 Nylon Waterproof Cable Gland is designed to provide a secure cable entry point while helping protect cables from pulling, vibration, dust, and moisture. Its compression sealing design grips the cable firmly when tightened, helping maintain a neat and reliable installation inside electrical cabinets, junction boxes, machinery, and other enclosures.
With its large PG63 threaded size, this cable gland is suitable for thick cables with an outer diameter from 42mm to 50mm. The durable nylon construction provides good electrical insulation and corrosion resistance, making it suitable for a wide range of industrial and electrical cable management applications. The gland can also help reduce mechanical stress on cable connections and prevent damage caused by sharp enclosure openings.
Features:
- Large-size cable gland for thick cables.
- Provides secure cable entry into enclosures.
- Helps protect cables from pulling and mechanical stress.
- Compression design securely grips the cable.
- Helps seal the cable entry point against external contaminants.
- Durable nylon construction.
- Electrically insulating and corrosion-resistant material.
- Suitable for electrical panels, junction boxes, and industrial equipment.
- Simple threaded installation.
- Suitable for indoor and outdoor enclosure applications.
Specifications:
| Color | gray |
| Cable diameter range, mm | 42-50 |
| Body material | polyamide |
| Sealing material | oil-resistant rubber |
| Protection class | ІР68 |
| Altitude above sea level, m | 2000 |
| Operating temperature range, °C | -40…+60 |
| Storage temperature range, °C | -50…+70 |
Applications:
- Electrical control panels.
- Junction boxes.
- Industrial machinery.
- Distribution boxes.
- Electrical cabinets.
- Outdoor electrical enclosures.
- Cable management systems.
- Automation equipment.
- Heavy-duty cable installations.
- Large power and control cable entry points.
Package Includes:
- 1 × PG-63 Nylon Waterproof Cable Gland.
