Photo Reflective Sensor Module CNY70

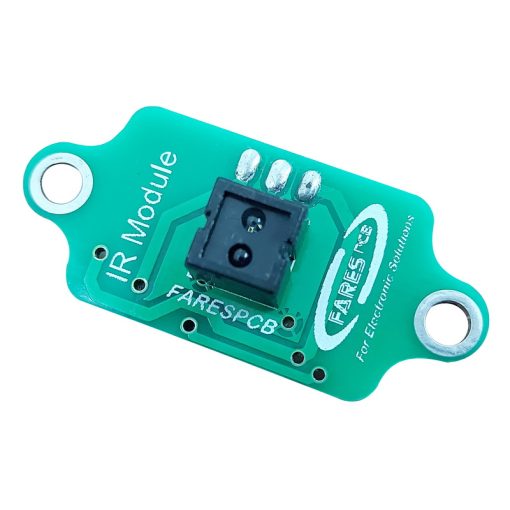

The Photo Reflective Sensor Module CNY70 combines a GaAs infrared emitter and a silicon planar phototransistor with an onboard LM393 comparator. When a surface is placed within 0–5 mm, IR light reflects back to the detector, triggering a logical LOW output (active-low), and illuminating an onboard LED during reflection. Designed for 3.3–5 V operation, the module features two Ø 3.5 mm mounting holes and is fully compatible with Arduino and other microcontroller platforms. Its compact dimensions, 38 × 17 × 17 mm, make it ideal for precise proximity detection, line sensing, or object detection tasks.
Features
- Utilizes wide-voltage LM393 comparator for robust threshold control.
- Voltage-compatible with 3.3–5 V systems.
- Active-low output (LOW = object detected, LED on).
- 10 mA max output sink current, suitable for microcontroller GPIO.
- Operating detection range: 0–5 mm.
- Two Ø 3.5 mm mounting holes for secure installation.
- Breadboard-friendly and compatible with Arduino platforms.
- Compact 38 × 17 × 17 mm PCB size.
Specifications
| Parameter | Value |
|---|---|
| Operating Voltage | 3.3 V–5 V DC |
| Detection Range | 0–5 mm |
| Output Type | Active-low digital |
| Max Sink Current | 10 mA |
| Mounting Holes | 2 × Ø 3.5 mm |
| LED Indicator | Yes (active-low) |
| Module Size | 38mm × 17mm × 17 mm |
Applications
- Short-range proximity sensing and object detection.
- Line-following and surface reflectance detection in robotics.
- Edge or gap detection in automation systems.
- Quick integration into Arduino and microcontroller projects.
Package Contents
- 1× Photo Reflective Sensor Module CNY70 (with LM393 comparator).
