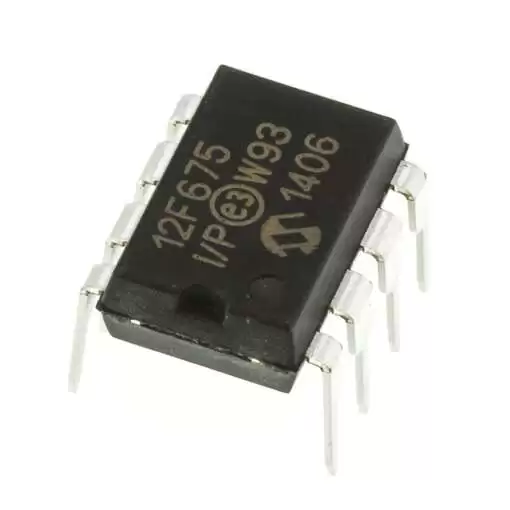

PIC12F675-I/P 8-Bit Microcontroller IC DIP-8

70.00 EGP

Buy Now
Availability: In Stock
SKU:3496300093373

PIC12F675 is a low-cost, Mid-Range 8-bit, FLash based CMOS Microcontroller unit that has 8 pins out of which 6 pins can be used as I/O pins. This Microcontroller is powerful enough that works with 200 nanosecond instruction execution and at the same time, it is an easy-to-program (35 single words instruction) PIC microcontroller unit.

PIC12F675 Pinout Configuration

Pin Number

Pin Name

Description

1

VDD

Positive Pin of MCU (+5V)

2

GP5/T1CK1/OSC1/CLKIN

Bidirectional I/O Pin or Crystal Input or External clock source input, or TMR1 clock

3

GP4/AN3/T1G/OSC2/CLKOUT

Bidirectional I/O Pin, or Timer 1 Gate, or Crystal output or Analog Input CH3.

4

GP3/MCLR/VPP

Input Pin or connected with a programmer, mostly with PicKit

5

GP2/T0CKI/AN2/INT/COUT

Bidirectional I/O Pin or Analog Input CH2 or comparator output or external interrupt or Clock Input to Timer 0.

6

GP1/AN1/CIN-/VREFICSPCLK

Bidirectional I/O Pin, or Analog input CH1 or Comparator input or External Voltage reference or In-Circuit Programmer Clock Pin.

7

GP0/AN0/CIN+/ICSPDAT

BIdirectional I/O Pin or Analog Input CH0 or In-Circuit Serial Programming Data Pin, used in Programmer.

8

VSS

Ground Pin of MCU

Features and Specification of the PIC12F675 Microcontroller

PIC12F675 – Simplified Features and Specification

CPU

Mid-Range 8-bit

Number of Pins

8

Operating Voltage (V)

2-5.5V

Number of I/O pins

6

ADC Module

1 (4-Channel, 10 bit)

Timer Module

8-bit (1), 16-bit (1)

Comparators

1

DAC Module

Nil

Communication Peripherals

Nil

External Oscillator

Yes

Internal Oscillator

4 MHz

Program Memory (KB)

1.75KB

CPU Speed (MIPS)

5 MIPS

RAM Bytes

64

Data EEPROM

128 Bytes

Note: Complete technical details can be found in the PIC12F675 Datasheet linked at the bottom of this page.

Introduction to PIC12F675

PIC12F675 is a low-cost, Mid-Range 8-bit, FLash based CMOS Microcontroller unit that has 8 pins out of which 6 pins can be used as I/O pins. This Microcontroller is powerful enough that works with 200 nanosecond instruction execution and at the same time, it is an easy-to-program (35 single words instruction) PIC microcontroller unit.

It has an internal oscillator with 4Mhz frequency and can be extended up to 20 Mhz using an external crystal oscillator.

PIC12F675 also comes with the 128 bytes of EEPROM data memory. It has one 8-bit and one 16-bit timer support for working with timer related operations. This microcontroller unit also has a 4-Channel, 10-bit resolution based Analog to Digital converter.

It has a wide operating voltage range from 2V to 5.5V. Thus, it can be used in 3.3V or 5.0V logic level operations.

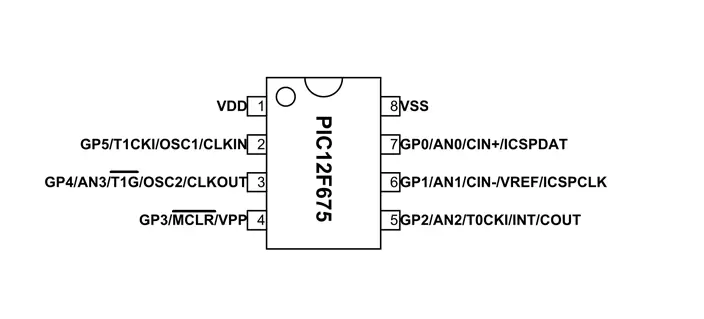

The below image is showing the detailed pin diagram of the PIC12F675.

PIC12F675 Datasheet
