PIC16F84A-04I/P 8-bit Microcontroller DIP-18
The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.
The PIC16F84A family of microcontrollers is based upon Microchip’s Mid-range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, up to 1.75 Kbytes program memory, 68 bytes RAM and 64 bytes EEPROM.
Features:
- 8-bit RISC microcontroller architecture.
- Up to 4MHz operating frequency.
- 35 single-word instruction set.
- 1.75KB Flash program memory.
- 68B SRAM.
- 64B EEPROM data memory.
- 13 programmable digital I/O pins.
- Timer0 with programmable prescaler.
Specifications:
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs)
Embedded Microcontrollers |
| Mfr | Microchip Technology |
| Series | PIC® 16F |
| Package | Tube |
| Product Status | Active |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 4MHz |
| Connectivity | – |
| Peripherals | POR, WDT |
| Number of I/O | 13 |
| Program Memory Size | 1.75KB (1K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | 64 x 8 |
| RAM Size | 68 x 8 |
| Voltage – Supply (Vcc/Vdd) | 4V ~ 5.5V |
| Data Converters | – |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |

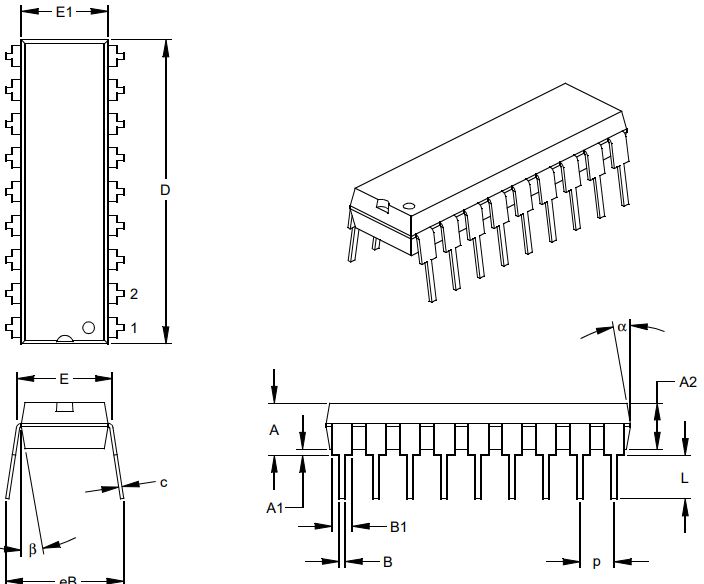

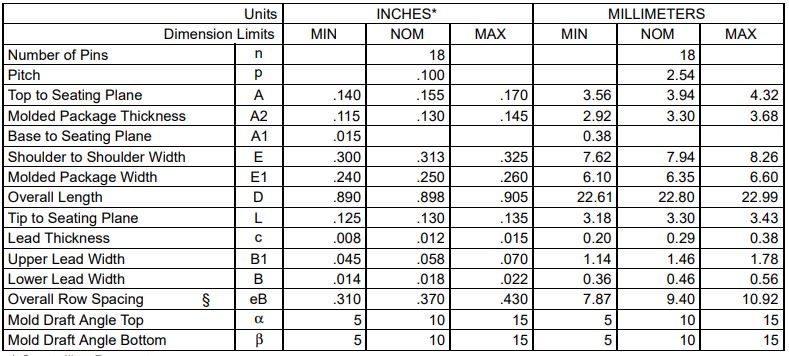

| Package / Case | 18-DIP (0.300″, 7.62mm) |
| Supplier Device Package | 18-PDIP |
| Base Product Number | PIC16F84 |

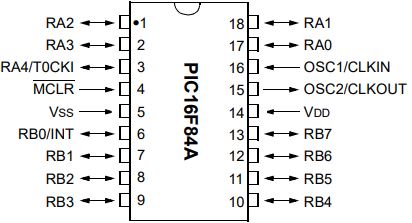

Pin Configuration:
Applications:
- Embedded control systems.
- Industrial automation.
- Educational and training projects.
- Home automation.
- Sensor interfacing.
- LED display control.
- Motor control.
- Robotics.
- Data acquisition systems.
- General-purpose microcontroller applications.
Package Include:
1x PIC16F84A-04I/P 8-Bit Microcontroller DIP-18
