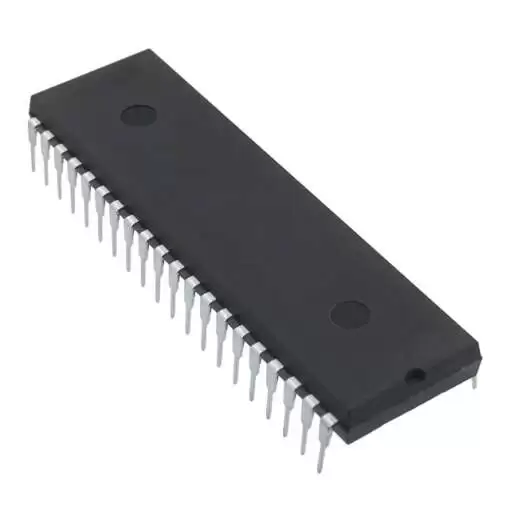

PIC18F458 Microcontroller IC
250.00 EGP
Availability:
Out of stock
SKU:3496300064441
Technical Specifications
| Physical |
|
| Case/Package |
PDIP |
| Number of Pins |
40 |
| Technical |
|
| Access Time |
40 µs |
| Address Bus Width |
8 b |
| Core Architecture |
PIC |
| Data Bus Width |
8 b |
| Frequency |
40 MHz |
| Interface |
CAN, I2C, SPI, UART, USART |
| Max Frequency |
40 MHz |
| Max Operating Temperature |
85 °C |
| Max Power Dissipation |
1 W |
| Max Supply Voltage |
5.5 V |
| Memory Size |
32 kB |
| Memory Type |
FLASH |
| Min Operating Temperature |
-40 °C |
| Min Supply Voltage |
4.2 V |
| Nominal Supply Current |
1.7 mA |
| Number of A/D Converters |
1 |
| Number of ADC Channels |
8 |
| Number of Bits |
8 |
| Number of Ethernet Channels |
1 |
| Number of I2C Channels |
1 |
| Number of I/Os |
33 |
| Number of Programmable I/O |
33 |
| Number of PWM Channels |
5 |
| Number of SPI Channels |
1 |
| Number of Timers/Counters |
4 |
| Number of UART Channels |
1 |
| Oscillator Type |
External |
| Packaging |
Bulk |
| Peripherals |
Brown-out Detect/Reset, I2C, LVD, POR, PWM, WDT |
| Watchdog Timer |
Yes |
