PICkit 3.5 is a programmer and debugger device designed by Microchip Technology, which is used for programming and debugging Microchip’s PIC microcontrollers. It is an upgrade to the previous PICkit 3 device and supports a wide range of PIC microcontrollers. The device is small, portable, and connects to a computer via USB.
- Supports a wide range of PIC microcontrollers, including mid-range and 8-bit devices.
- Can program and debug PIC microcontrollers in-circuit or in-system.
- Provides a fast and reliable programming and debugging experience.
- Offers advanced features such as real-time execution, breakpoints, and single-stepping.
- Has a user-friendly graphical interface for easy operation.
Overall, the PICkit 3.5 is a versatile and powerful tool for programming and debugging PIC microcontrollers, suitable for both hobbyists and professionals in the field of embedded systems.
Features
- USB (full speed 12 Mbits/s interface to host PC)
- Real-time execution
- MPLAB IDE compatible (free copy included)
- Built-in overvoltage / short-circuit monitor
- Firmware upgradeable from PC / web download
- Totally enclosed
- Supports low voltage to 2 V (2 V to 6 V range)
- Diagnostic LEDs (power, busy, error)
- Read / write program and data memory of microcontroller
- Erase of program memory space with verification
- Freeze-peripherals at breakpoint
- Program up to 512 K byte Flash with the programmer-to-go

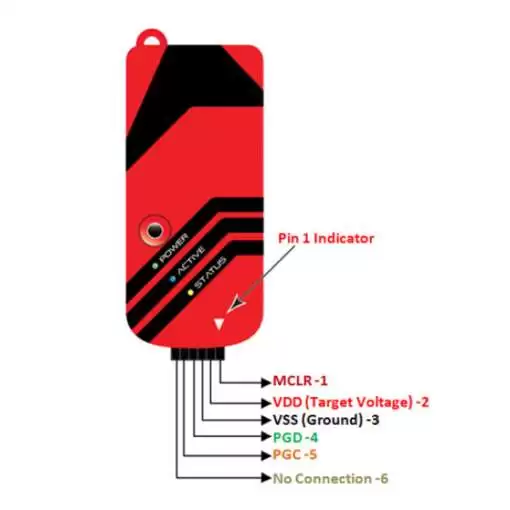

- ICSP cable included
Dimensions
- Depth: 12 mm
- Length: 90 mm
- Width: 40 mm

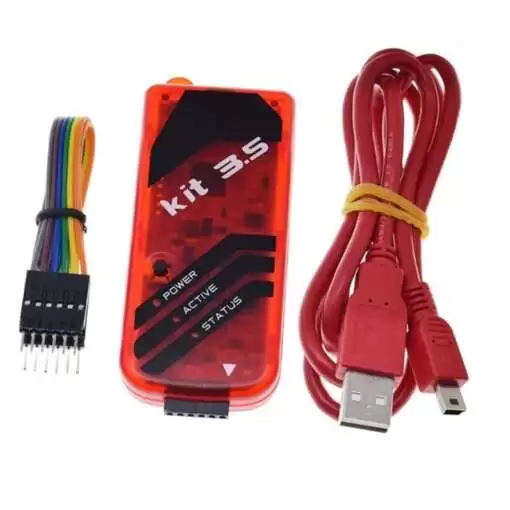

Package includes:
- 1 x PICkit 3.5 PIC KIT 3.5 Debugger Programmer
- 1 x Mini USB cable
- 1 x 6-Pin flat cable (Male to Male)
