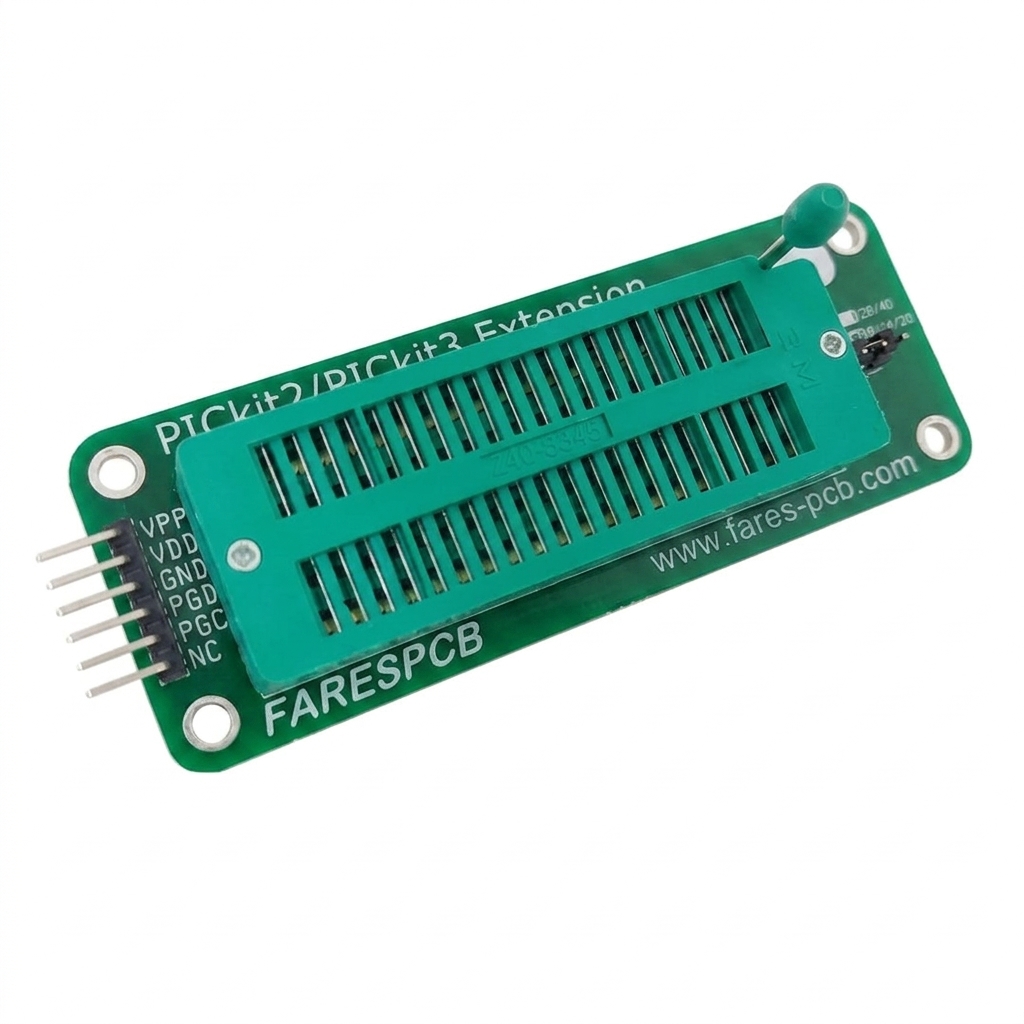

PICkit2/PICkit3 Extension Board
The PICkit2/PICkit3 Extension Board is a practical adapter designed to simplify the programming and testing of Microchip PIC microcontrollers in DIP package formats. It works seamlessly with PICkit 2 and PICkit 3 programmers, acting as an intermediary interface that eliminates the need for complex wiring during development and prototyping.
Features:
- Compatible with PICkit 2 and PICkit 3 programmers.
- Supports a wide range of DIP PIC microcontrollers (8/14/18/20/28/40 pins).
- Standard ICSP 6-pin interface for programming and debugging.
- Simplifies connections and reduces wiring errors.
Specifications:
| Parameter | Value |
|---|---|
| Compatible Programmers | PICkit2, PICkit3 |
| Supported Devices | DIP Microchip PIC Microcontrollers |
| Interface | 6-pin ICSP header |
| Dimensions | 90mm×33mm |
Applications:
- Programming PIC microcontrollers in development projects.
- Embedded systems prototyping and testing.
- Educational labs and training environments.
- Repair and firmware updating of PIC-based devices.
- Rapid IC testing without soldering.
Package Include:
1x PICkit2/PICkit3 Extension-Board.
