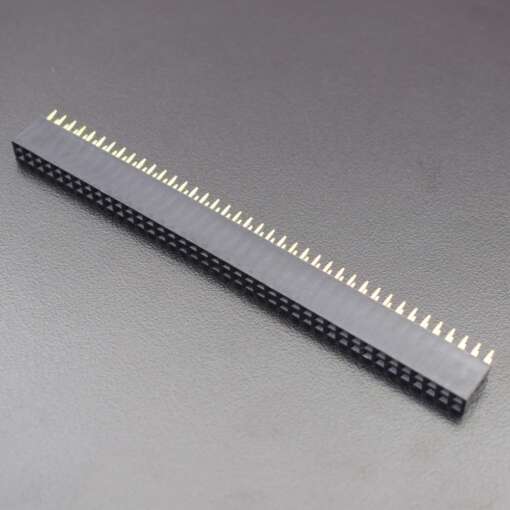

Pin Headers Female 2.54mm : 2×40-Pin, Straight, Black, 11mm
This is 2×40-pin 2.54 mm spacing double row straight header connector female connector. These high-quality female pin header connectors are essential electronic components, and connector raw materials. Widely used in an electronic circuits, electrical appliances, instrumentation, PCB circuit board and so on. It has a straight mounting, double row, female pin header, and essential electric component, easy to use. They are suitable for an electronic project.
Features:
- With straight mounting double row.
- Very easy to use.
- Standard 2.54mm pin pitch.
- Dual-row 2×40-pin configuration.
- Straight through-hole mounting.
- Durable black insulating housing.
Specifications:
| Parameter | Value |
|---|---|
| Connector | Header Strip |
| Gender | Female |
| Mounting Type | Through Hole |
| Pin Spacing | 2.54 mm |
| Contact Material | Phosphor Bronze |
| Contact Resistance | 20mΩ |
| Withstanding Voltage | AC 1000V |
| Insulation Resistance | ≥1000 MΩ |

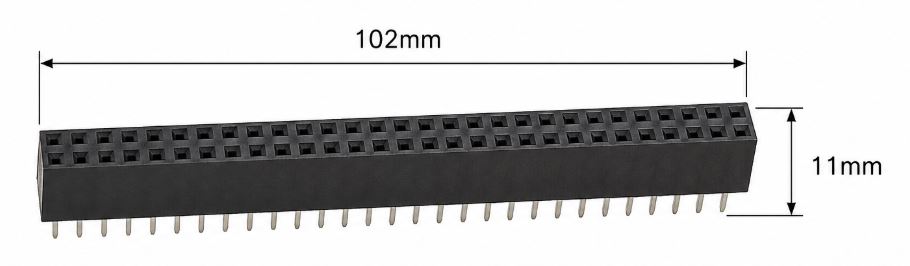

| Overall Length | 102mm |
| Overall Width | 11mm |
| Overall Thickness | 5mm |
Applications:
- Arduino development boards.
- Raspberry Pi expansion boards.
- STM32 development boards.
- ESP32 and ESP8266 projects.
- PCB prototyping.
- Breadboard interface connections.
- Board-to-board connections.
- Electronic DIY projects.
- Embedded system development.
- Educational electronics projects.
Package Include:
1x Pin Headers Female 2.54mm 2×40-Pin Straight Black 11mm.
