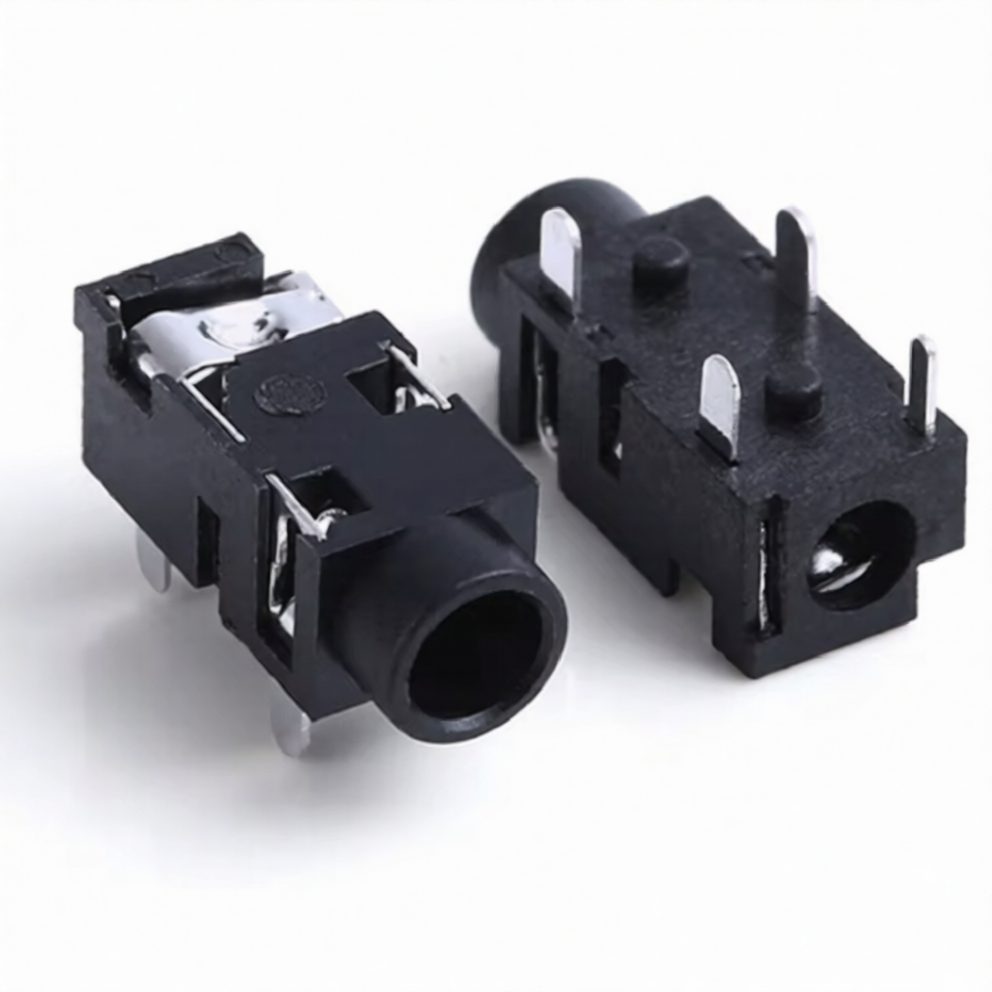

PJ-327 Audio Plug Female PCB Mount 3.5mm 4 Pin
A PJ-327 3.5mm 4-pin PCB-mount audio jack designed for headphones, headsets, microphones, and audio signal connections in electronic devices.
10.00 EGP
Buy NowPJ-327 Audio Plug Female PCB Mount 3.5mm 4 Pin
The PJ-327 Audio Plug Female PCB Mount 3.5mm 4 Pin is a compact through-hole audio socket designed for direct mounting onto printed circuit boards. It accepts standard 3.5mm TRRS (4-pole) audio plugs, making it suitable for stereo audio with microphone support or other multi-signal audio applications. Its robust construction ensures reliable electrical contact and long service life.
This connector is widely used in portable audio devices, multimedia equipment, communication systems, embedded electronics, and DIY audio projects. The PCB mounting design provides secure mechanical support while simplifying assembly, making it an excellent choice for both commercial products and prototype development.
Features:
- Standard 3.5mm audio jack.
- 4-pin (TRRS) configuration.
- Through-hole PCB mounting.
- Compact and lightweight design.
- Reliable electrical contact.
- Durable construction.
- Low insertion resistance.
- Secure mechanical retention.
- Suitable for audio and microphone connections.
- Easy soldering and installation.
Specifications:
| Specification | Value |
|---|---|
| Model | PJ-327 |
| Product Type | Audio Jack Socket |
| Connector Type | 3.5mm Female |
| Configuration | 4 Pin (TRRS) |
| Mounting Type | PCB Through-Hole |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold or Silver (varies by manufacturer) |
| Rated Voltage | 30V DC Max |
| Rated Current | 0.5A Max |
| Operating Temperature | -20°C to +70°C |
Pinout:

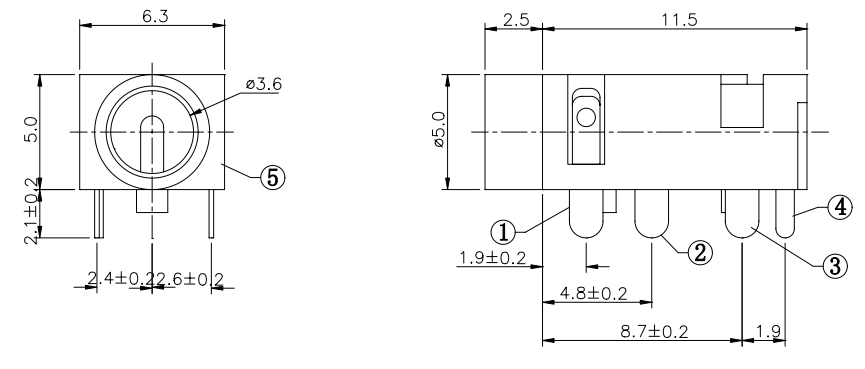

Footprint:
Applications:
- Headphone sockets.
- Headset interfaces.
- Audio amplifiers.
- Multimedia devices.
- MP3 and MP4 players.
- Portable speakers.
- Communication equipment.
- DIY audio projects.
- Embedded audio systems.
- Consumer electronics.
Package Includes:
- 1 × PJ-327 Audio Plug Female PCB Mount 3.5mm 4 Pin.
