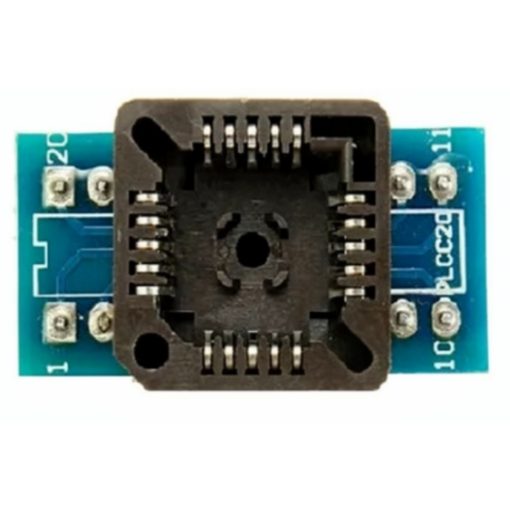

PLCC20 Socket Adapter 100V 1A 20-Pin Module
The PLCC20 Socket Adapter 20 Pin is designed to allow easy insertion and removal of 20-pin PLCC (Plastic Leaded Chip Carrier) integrated circuits without soldering the IC directly to the PCB. This socket provides a reliable and secure electrical connection while protecting the IC from heat damage during soldering. It is commonly used in development, programming, and testing applications where ICs may need to be replaced frequently.
Constructed with durable insulating material and high-quality metal contacts, It’s socket ensures stable connectivity and long service life. It is ideal for EEPROMs, microcontrollers, and other package ICs. The adapter simplifies maintenance and upgrades, making it suitable for both professional electronics manufacturing and DIY projects.
Features:
- Designed for 20-pin PLCC IC packages.
- Enables easy IC insertion and removal.
- Protects ICs from soldering heat damage.
- Durable plastic housing with reliable metal contacts.
- Suitable for prototyping and production use.
- Secure and stable electrical connection.

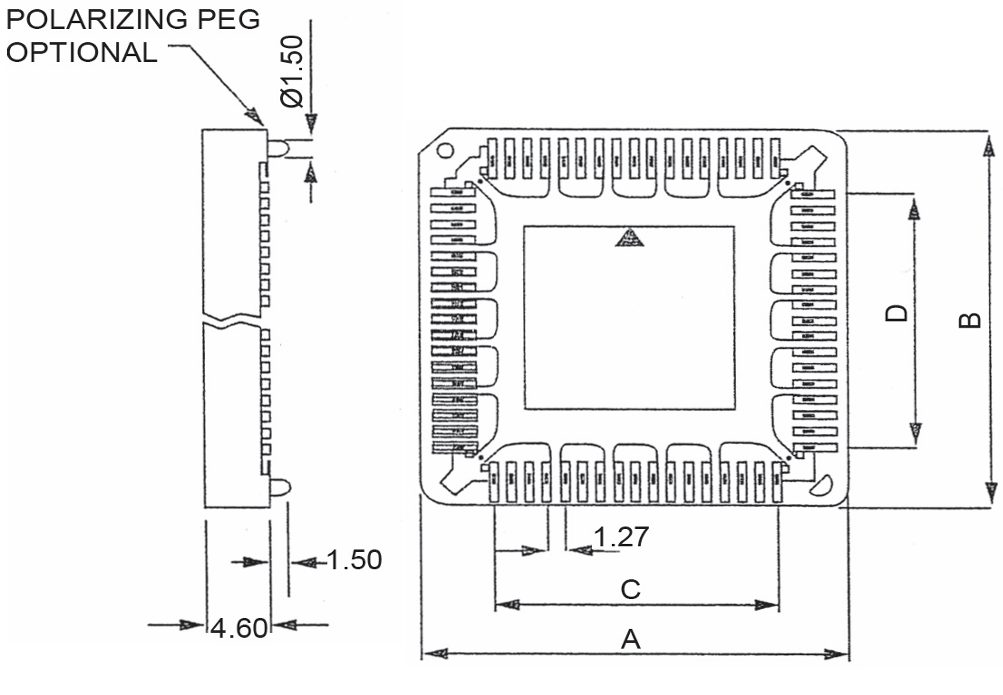

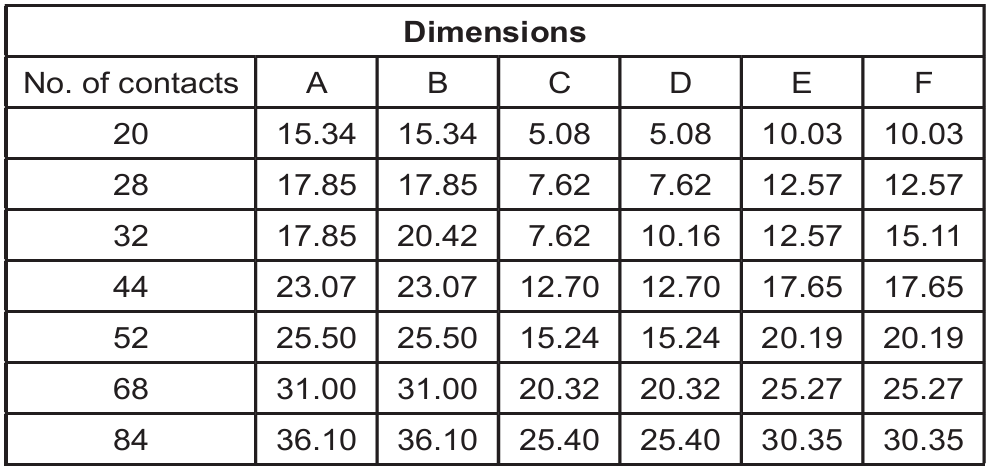

Specifications:
| Parameter | Value |
|---|---|
| Package Type: | PLCC20 |
| Number of Pins: | 20 |
| Mounting Type: | Through-Hole PCB |
| Insulator Material: | Nylon 9T, UL94V-0 |
| Contact Material: | Phosphor Bronze |
| Plating: | Ni, Sn |
| Contact Resistance: | 15mΩ max |
| Insulation Resistance: | 10000MΩ min |
| Current Rating: | 1A |
| Operating Voltage: | 100VAC |
| Test Voltage: | 500VAC |
| Operating Temperature: | -40°C to +105°C |
| Packing: | Tube Packing |
Pinout:
| 1 | 20 |
| 2 | 19 |
| 3 | 18 |
| 4 | 17 |
| 5 | 16 |
| 6 | 15 |
| 7 | 14 |
| 8 | 13 |
| 9 | 12 |
| 10 | 11 |
Applications:
- PLCC EEPROM / Flash / memory sockets for programming and testing.
- Microcontroller development and prototyping.
- Repair and refurbishment of electronic PCBs.
- Small-batch production and test fixtures.
- Any application requiring frequent IC replacement or in-circuit testing.
Packages:
- 1x PLCC20 Socket Adapter 100V 1A 20-Pin Module.
