- The nominal cross-section is 2.5mm²
- Polyamide insulation material
- The maximum load current is 10A
- Rated voltage (III/2) is 300V

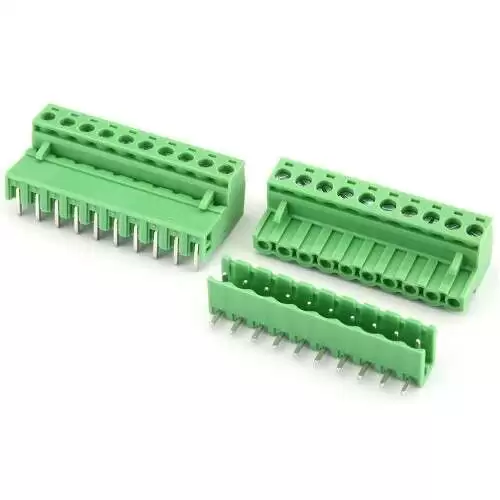

- Green color terminal block with screw termination
- Suitable for wire sizes of 24AWG to 12AWG
- PITCH=5.08mm (0.200″)
- Right Angle to PCB
Specifications:
| Attribute | Value |
| Category | Connectors/Pluggable System Terminal Block |
| Datasheet | Cixi Kefa Elec KF2EDGK-5.08-10P-AA |
| RoHS | |
| Voltage Rating (Max) | 300V |
| Current Rating (Max) | 10A |
| Number of PINs Per Row | 10 |
| Wire Gauge – mm? | 2.5 |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Wire Gauge – AWG | 12~24 |
| Color | Green |
| Connector Type | Plug |
