Pluggable Terminal Block KF2EDGV-5.08-8P PCB Solder Straight 5.08mm 8 Pin

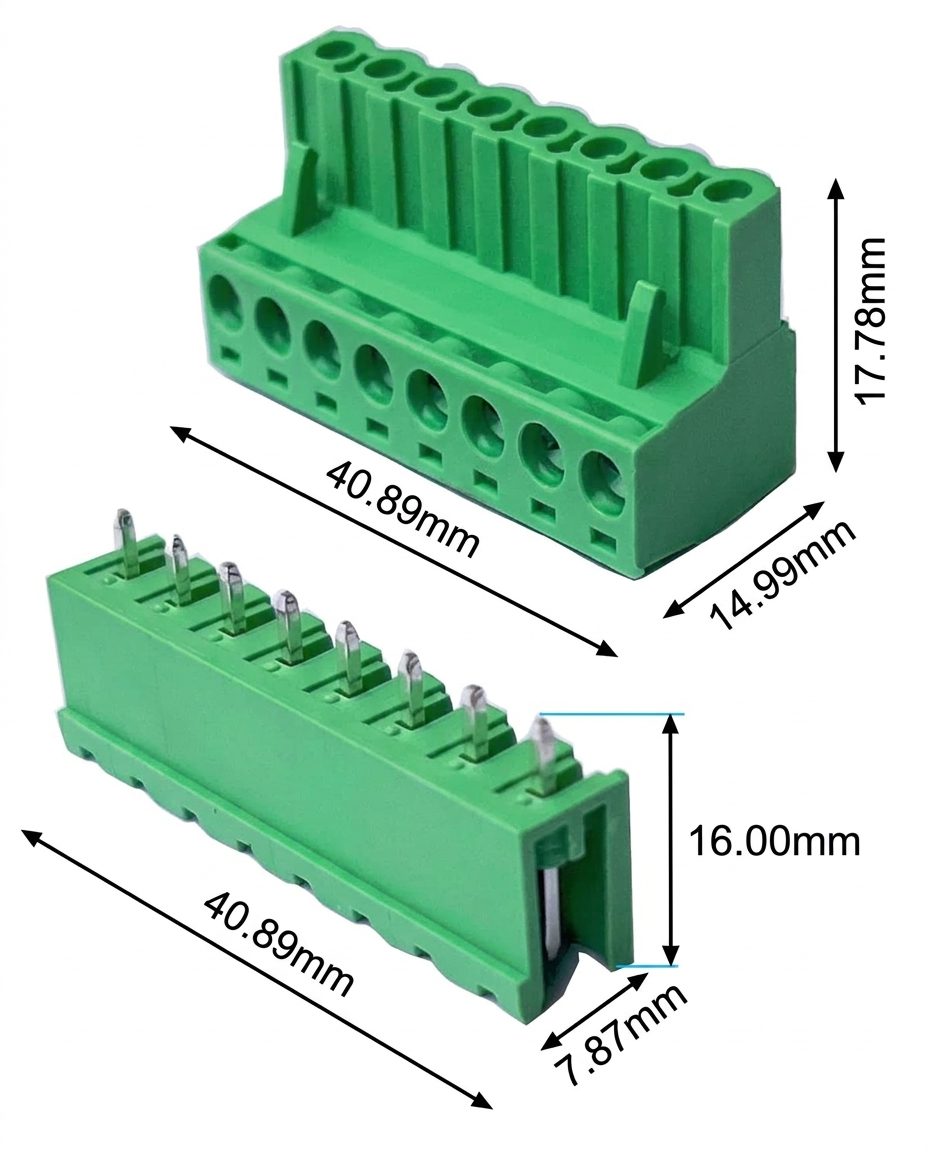

The Pluggable Terminal Block KF2EDGV-5.08-8P PCB Solder Straight 5.08mm 8 Pin is an 8-position pluggable terminal block designed for establishing removable wire-to-PCB connections. It uses a standard 5.08mm pitch and a straight-pin through-hole configuration for direct soldering onto a printed circuit board.
Features:
- 8-position pluggable terminal-block.
- 5.08mm standard pitch.
- Straight-pin PCB mounting configuration.
- Through-hole solder mounting.
- Removable plug-and-header design.
Specifications:
| Parameter | Value |
|---|---|
| Model Number | KF2EDGV-5.08-8P |
| Product Type | Pluggable Terminal-Block |
| Series | KF2EDG-5.08 |
| Number of Positions | 8 Pin |
| Number of Rows | 1 Row |
| Pitch | 5.08mm |
| Mounting Type | Through Hole, PCB Mount |
| Pin Orientation | Straight |
| Connection Method | Screw Down / Pluggable |
| Rated Current | 10A |
| Rated Voltage | 400V |
| Maximum Supported Wire Size | 1.5mm² |
| Insulation Material | PBT |
| Color | Green |
| Contact Configuration | Board Header / Plug System |
Applications:
- PCB power connections.
- Industrial control equipment.
- Automation systems.
- Power supply connections.
- Motor control circuits.
- Lighting control systems.
- Communication equipment.
- Instrumentation and measurement equipment.
- Control panels.
- General-purpose PCB wiring.
- Electronic prototyping and development.
- Applications requiring removable PCB wiring connections.
Package Include:
1x Pluggable Terminal-Block KF2EDGV-5.08-8P PCB Solder Straight 5.08mm 8 Pin.
