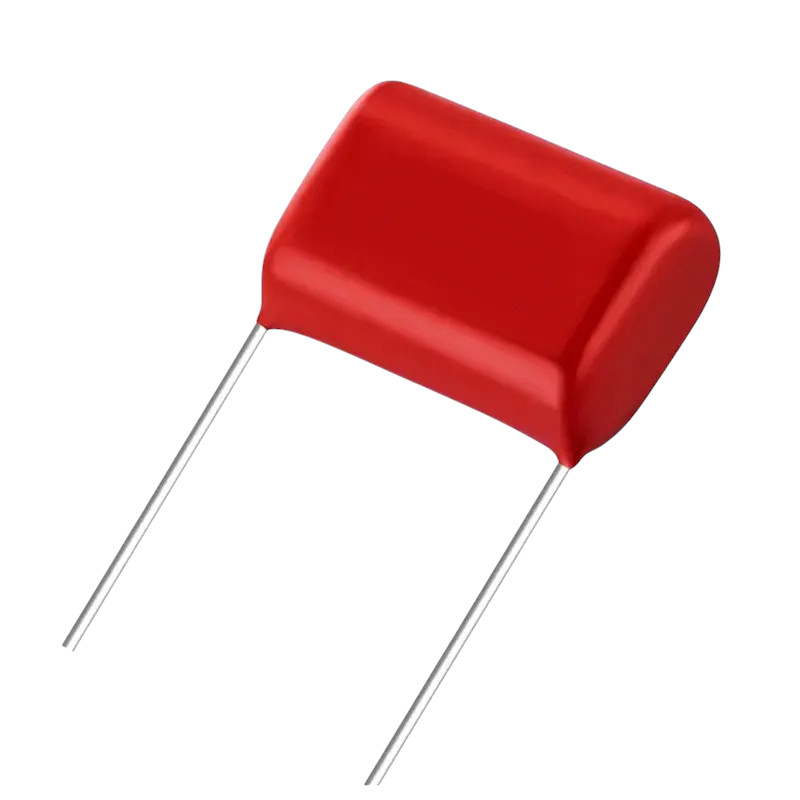

Polyester Capacitor 680nF 630V Pitch=20mm
This CBB22 series Metallized Polypropylene Film Capacitor is designed for high-performance applications requiring stability and low power loss. With a capacitance of 680nF and a robust 630V DC rating, it is specifically engineered to handle demanding pulse and high-frequency environments.
Features
- Self-Healing Property
- High Moisture Resistance
- Low Dissipation Factor
- Non-Inductive Construction
- Non-Polarized
Specifications
| Attribute | Specification |
| Capacitance | 680nF (0.68µF) |
| Marking Code | 684J |
| Rated Voltage (DC) | 630V |
| Tolerance | ±5% (J) |
| Lead Pitch (P) | 20mm ±0.5mm |
| Dielectric Material | Metallized Polyester Film |
| Dimensions | 21.5 x 14.5 x 8 mm |
| Mounting Type | Through Hole (Radial Leads) |
Applications
- Power Supplies
- Lighting Electronics
- Audio Equipment
- Industrial Electronics
- Communication Equipment
Package Content
- 1 x Polyester Capacitor 680nF 630V Pitch=20mm
