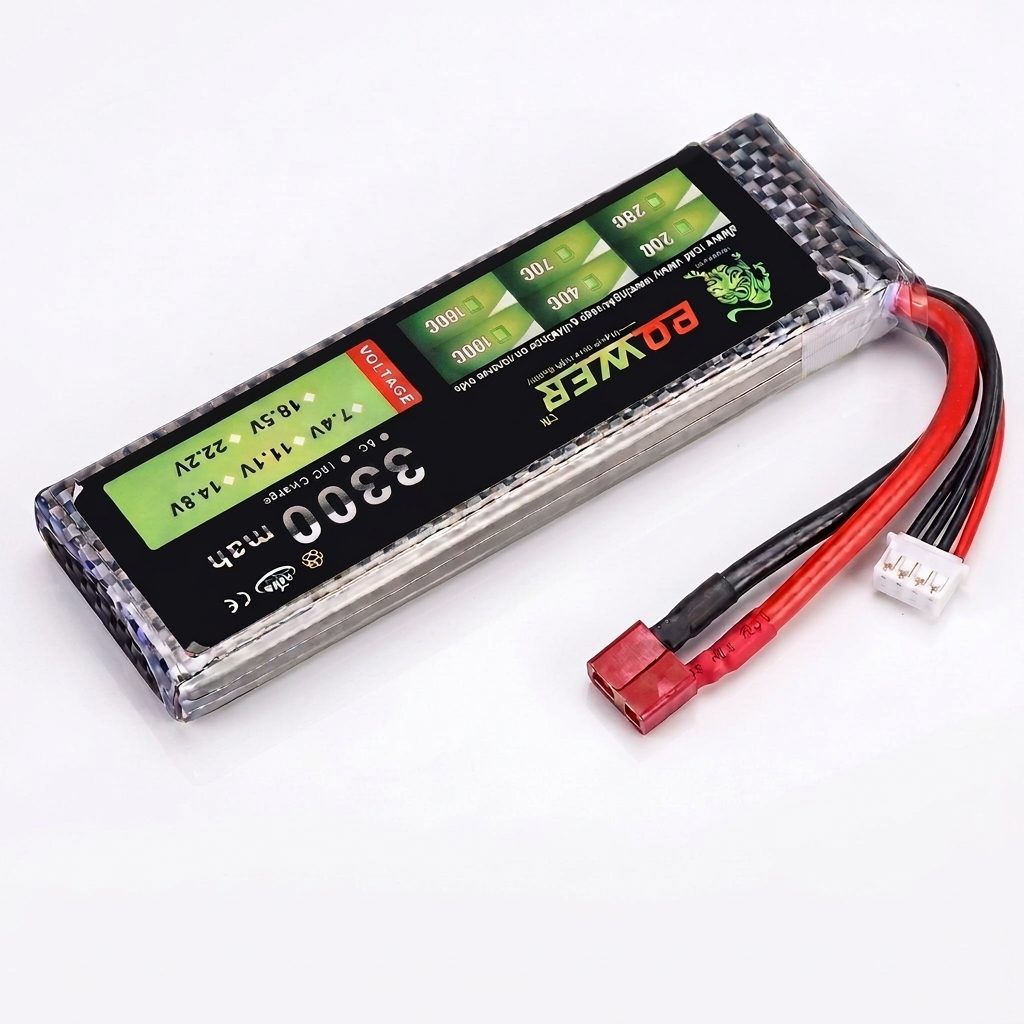

Lithium Polymer Battery 11.1V 3300mAh 40C
Lithium Polymer Battery 11.1V 3300mAh 40C is a high-performance rechargeable battery designed to deliver consistent power and high discharge capability for demanding electronic applications. With a nominal voltage of 11.1V and a capacity of 3300mAh, it provides extended operating time while maintaining excellent power output. The 40C continuous discharge rating ensures reliable performance for high-current devices such as RC aircraft, drones, cars, boats, robots, and other portable electronic systems. Its lightweight Lithium Polymer construction offers an excellent energy-to-weight ratio, making it suitable for applications where both power and reduced weight are essential. Built for durability and repeated charging cycles, this battery is an ideal choice for hobbyists and professionals seeking dependable portable power.
Features
- High-capacity 3300mAh rechargeable Lithium Polymer battery.
- Nominal output voltage of 11.1V.
- High 40C continuous discharge rate for demanding loads.
- Lightweight and compact construction.
- High energy density for longer operating time.
- Stable voltage during discharge.
- Low internal resistance for efficient power delivery.
- Suitable for high-performance RC applications.
- Rechargeable for repeated use.
- Durable construction for extended service life.
Specifications
| Parameter | Details |
|---|---|
| Product Name | Lithium Polymer Battery 11.1V 3300mAh 40C |
| Battery Type | Lithium Polymer (LiPo) |
| Battery Chemistry | Lithium Polymer |
| Recharging Availability | Rechargeable |
| Nominal Voltage | 11.1V |
| Cell Configuration | 3S (3 Cells in Series) |
| Capacity | 3300mAh |
| Continuous Discharge Rate | 40C |
| Energy | 36.63Wh |
| Maximum Charging Voltage | 12.6V |

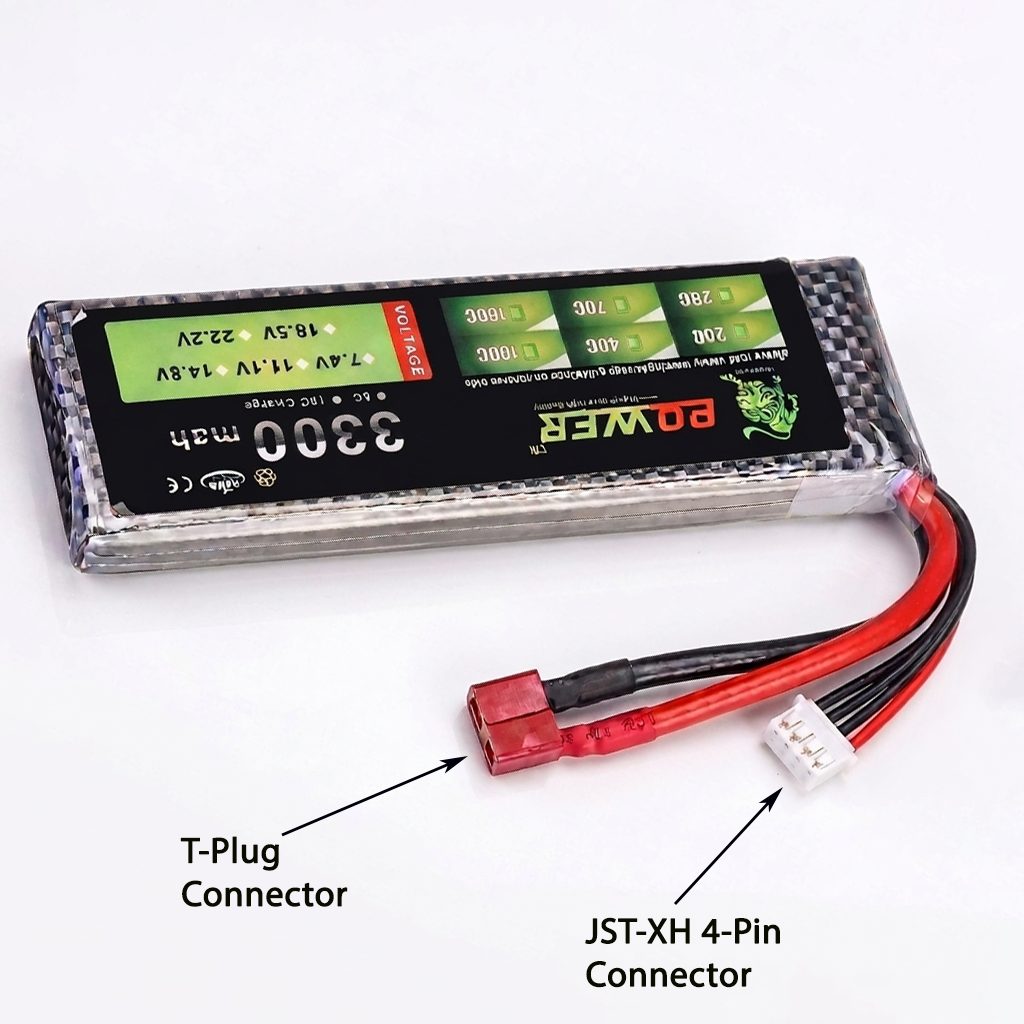

| Power Connector | T-Plug Connector |
| Balance Charging Connector | JST-XH 4-Pin Connector |
| Dimensions | Length(Range): 135mm – 140mm
Width(Range): 40mm – 45mm Thickness(Range): 16mm – 21mm |
| Weight(Range) | 200g – 250g |
| Operating Temperature | -20°C to +60°C |
| Charging Requirement | Requires an external LiPo balance charger |
| Recommended Applications | RC Cars, RC Boats, RC Airplanes, Drones, Robotics, DIY Electronics |
Note
- Due to the difference between the measurements, the battery dimension and weight may have little error.
Caution
- Always use a LiPo battery with an appropriate charger and balance charging system.
- Do not overcharge, discharge too deeply, or expose the battery to extreme temperatures.
- Keep the battery away from water and moisture.
- Handle with care, as puncturing or damaging the battery can lead to hazardous situations.
- Store in a cool, dry place and follow manufacturer guidelines for safe storage.
Applications
- RC airplanes.
- RC helicopters.
- RC cars.
- RC boats.
- Racing drones.
- FPV drones.
- Robotics projects.
- Portable electronic devices.
- DIY battery-powered systems.
- Educational electronics projects.
- UAV platforms.
- High-power hobby applications.
Package Contents
- 1 x Lithium Polymer Battery 11.1V 3300mAh 40C
