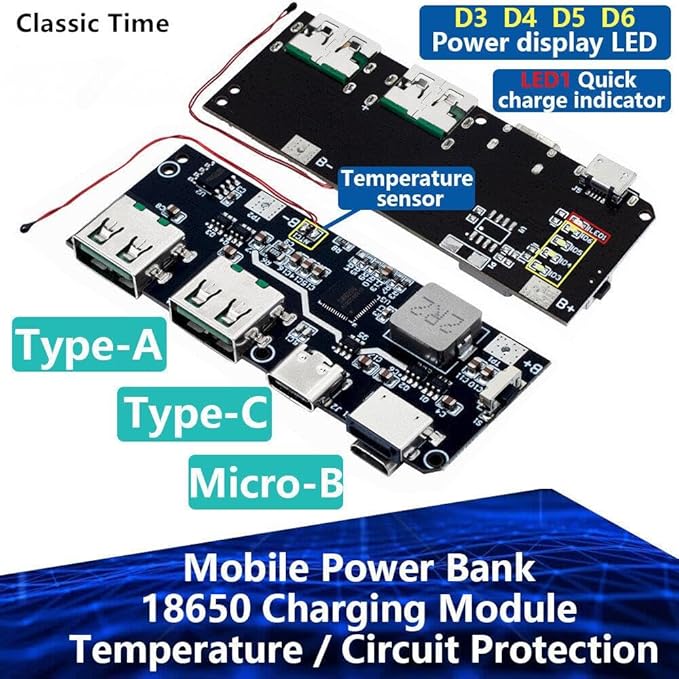

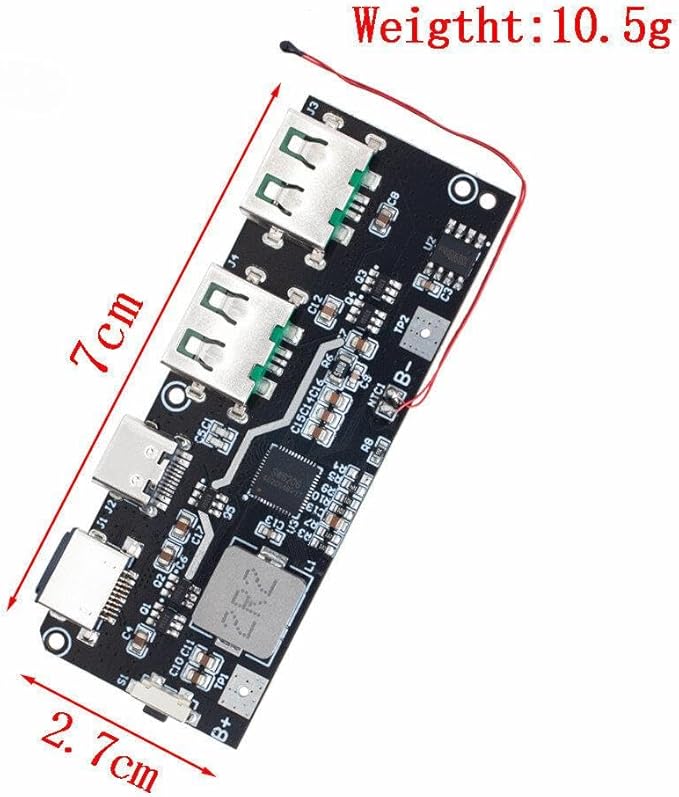

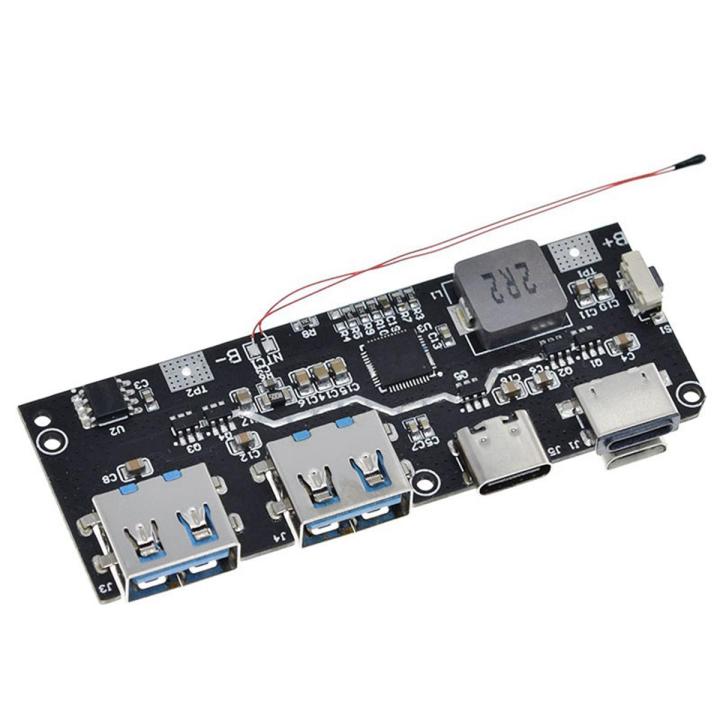

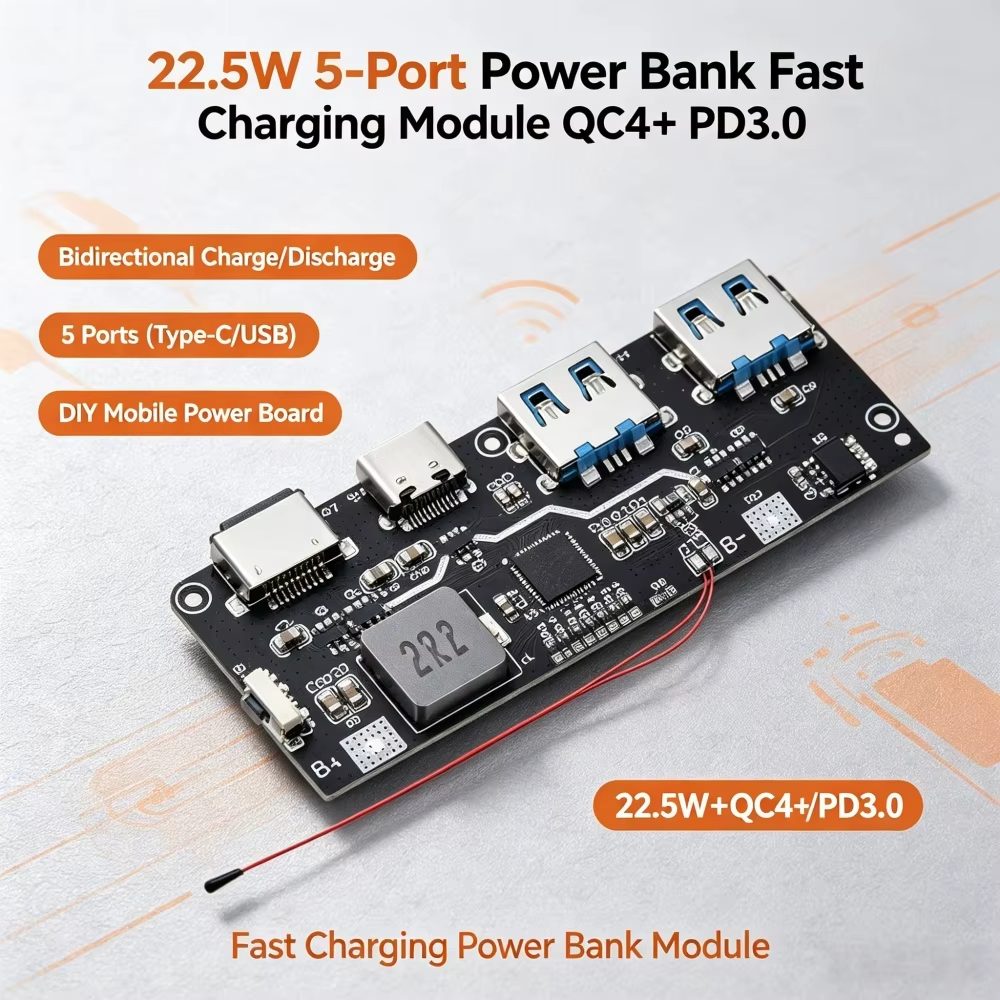

Power Bank Fast Charger Module QC4+PD3.0 22.5W 5 USB PORT
High-speed power bank charging module with QC4+, PD3.0, and multiple USB ports for DIY portable power bank projects.
250.00 EGP
Buy NowPower Bank Fast Charger Module QC4+PD3.0 22.5W 5 USB PORT
The Power Bank Fast Charger Module QC4+ PD3.0 22.5W 5 USB PORT is a compact battery management and fast charging solution designed for building or upgrading portable power banks. It integrates advanced fast charging protocols including Quick Charge 4+ (QC4+) and USB Power Delivery 3.0 (PD3.0), allowing compatible devices to charge at significantly higher speeds than conventional USB chargers. With multiple USB output ports, the module can charge several devices simultaneously while intelligently managing power distribution.
Designed for DIY makers, repair technicians, and electronics enthusiasts, this module combines charging, battery protection, voltage conversion, and fast charging negotiation into a single PCB. It is suitable for use with lithium battery packs and provides efficient charging and discharging performance for smartphones, tablets, development boards, portable electronics, and other USB-powered devices.
Features:
- Supports Quick Charge 4+ fast charging protocol.
- Supports USB Power Delivery 3.0 fast charging.
- Multiple USB output ports for charging several devices.
- High-efficiency DC-DC power conversion.
- Integrated lithium battery charging management.
- Built-in battery protection functions.
- Intelligent fast charging protocol detection.
- Compact PCB suitable for DIY power bank projects.
- Stable output voltage regulation.
- Suitable for charging smartphones, tablets, and USB devices.
- Low standby power consumption.
- Easy integration into custom battery enclosures.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Power Bank Fast Charging Module |
| Fast Charging Protocols | QC4+, PD3.0 |
| Maximum Output Power | 22.5W |
| USB Ports | 5 |
| Battery Type | Single-cell or multi-cell Lithium Battery (depending on board design) |
| Charging Function | Supported |
| Discharging Function | Supported |
| Output Interface | USB Ports |
| Protection Features | Overcharge, Over-discharge, Overcurrent, Short Circuit |
| PCB Type | Integrated Power Bank Controller Module |
Pinout:
Applications:
- DIY power bank projects.
- Portable battery packs.
- Mobile phone chargers.
- Tablet charging systems.
- USB-powered electronics.
- Emergency backup power supplies.
- Portable development board power.
- Outdoor power solutions.
- Battery-powered electronic projects.
- Rechargeable battery enclosures.
Package Includes:
- 1x Power Bank Fast Charger Module QC4+PD3.0 22.5W 5 USB PORT.
